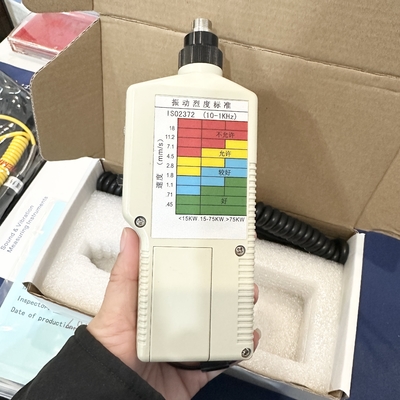

Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green

Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green
Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green

Large Image :  Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: HG-6500BLC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in high quality carton
Delivery Time: 5~8 days afer payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets per month

Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green

Description
Product Name: Vibration Meter Vibration Acceleration: Below 199.9m/s2 (peak)
Temperature Measurement Range: -20~400℃ Display: 3 LED Display
Vibration Measurement Range: Displacement: 0.001 To 1.999mm (peak - Peak) Acceleration: 0.1 ~ 199.9m/s2 (peak)
Highlight:

YELLOW Vibration Meter

,

BLUE Vibration Meter

,

RED Vibration Meter

Vibration Meter Classify Vibration Measurements Into RED YELLOW BLUE GREEN



Application

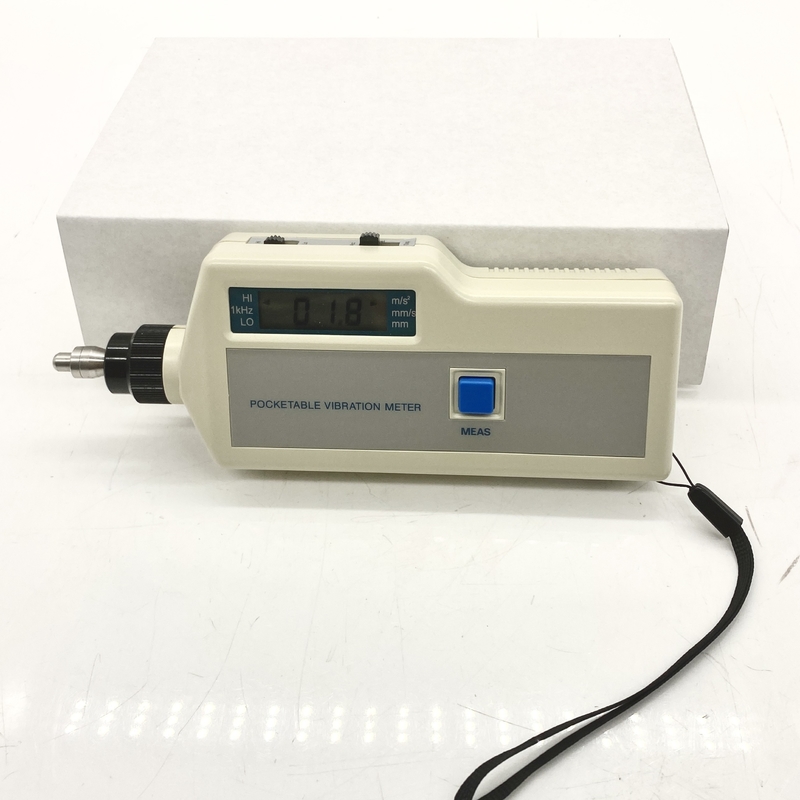

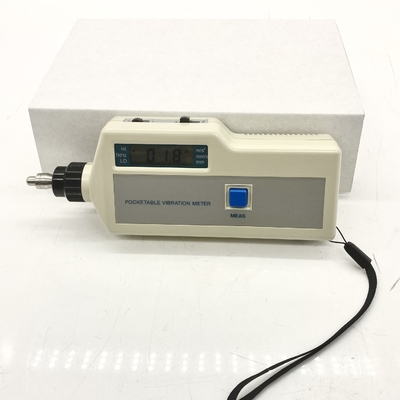

The HG-6500 Series Pocket style vibrometer is mainly used in the general case of mechanical vibration measurement. Particularly suitable for equipment condition monitoring.

Various mechanical vibration of the vibration source from the structural design, manufacturing, installation, commissioning and the environment itself. The presence of vibration is bound to cause structural fatigue damage, failure of parts wear and impact damage. For low-frequency vibration, the main consideration should be given to the fatigue strength of the destructive nature of the displacement damage; For 1KHz more high-frequency vibration, should primarily consider the impact and resonance destruction. The theoretical proof fatigue and is proportional to the vibration velocity of the vibration member, the vibration energy generated by the vibration velocity is proportional to the square of the result of energy transfer to cause wear and other defects. Accordingly, in the vibration criteria, whether from fatigue damage or wear defects such speed standard most suitable.

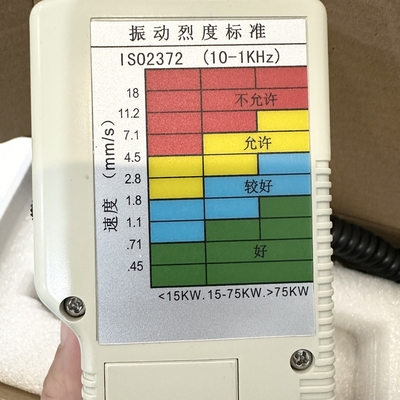

By measuring the speed of the rotating machinery vibration, and vibration intensity criterion (10Hz ~ 1kHz)-ISO2372 standard compared to the running state of the equipment can be traced.



Features
1. New technology design, low power consumption.
2. Fully produced as international standard ISO2372, can directly determine the current state (well, pay attention or dangerous, etc.) of the machinery equipment
3. High reliability rotary shear acceleration sensor has much better performance than compression sensor
4. High and low frequency model, easy to recognize machinery fault
5. Equip with signal input function, can test temperature with special temp sensor
6. Equip with signal output function, can be connected with earphone, oscilloscope and vibration recording meter etc.
7. Can test vibration and temperature for all machinery equipment (fans, pumps, compressors, motors, etc.)
8. The measurement value is automatically maintained
9.. In-built vibration sensor and separate sensor optional
10. Automatic shut down



Model Sensor type Function Frequency range
HG-6500AN Standard (in-built) Acceleration, Velocity, Displacement 10Hz~10KHz
HG-6500AL Low frequency (in-built) Acceleration, Velocity, Displacement 5Hz~10KHz
HG-6500ANC Vibration and temperature (in- built) Acceleration, Velocity, Displacement, Temperature 10Hz~10KHz
HG-6500ALC Low frequency and temperature (in-built) Acceleration, Velocity, Displacement, Temperature 5Hz~10KHz
HG-6500BN Standard (separate sensor) Acceleration, Velocity, Displacement 10Hz~10KHz
HG-6500BL Low frequency (separate sensor) Acceleration, Velocity, Displacement 5Hz~10KHz
HG-6500BNC Vibration and temperature (separate sensor) Acceleration, Velocity, Displacement, Temperature 10Hz~10KHz
HG-6500BLC Low frequency and temperature (separate sensor) Acceleration, Velocity, Displacement, Temperature 5Hz~10KHz



Specifications
Sensors: Rotary shear accelerometer
               Split charge amplifier built-in shear accelerometer
Range:  Acceleration 0.1~199.9m/s2(single peak) (5 or 10~1KHz; 1K~10KHz)
             Speed of 0.1~199.9mm/s(RMS) (5 or 10~1KHz)
             Displacement of 0.001~1.999mm (peak) (5 or 10~1KHz)
             Temperature 0℃~400℃
Accuracy: 5%±2 vibration wordsTemperature 1% ±1 word
Display: LCD display 3 1/2 digits
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery, can be used continuously 25 hours
Body volume:185mmx68mmx30mm
Weight:200g

Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green 0

Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green 1

Vibration Meter Classify Vibration Measurements Into Red Yellow Blue Green 2
