TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT

TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT
TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT

Large Image :  TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HPA-620PRT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT

Description
Phased Array/TFM Channels: 32:128 Max Aperture: 32 Elements
Max Elements: 128 Elements Focus Law: ≥1024
Highlight:

Non Destructive Testing Ultrasonic Flaw Detector

,

TFM Phased Array Ultrasonic Flaw Detector

TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT

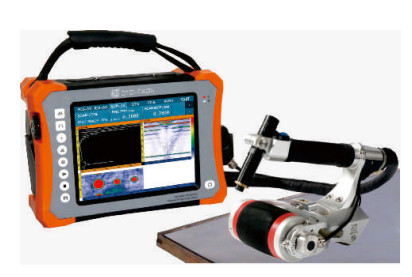

HUATEC HPA-620PRT is a new developed portable 32:128PR Phased Array flaw detector.

It is equipped with the conventional ultrasonic inspection module, TOFD module, conventional Phased Array module and TFM imaging module, supporting the concurrent scanning of TOFD and Phased Array, as well as dual-array probes. Featuring a water & oil-proof touch screen and full-course testing data recording capabilities, HUATEC HPA-620PRT is an advanced intellective TFM Phased Array flaw detector with C scan function.

Parameter:



Channels
Mode PA/TFM mode UT mode TOFD mode
Number 32:128 2 2
Physical Parameter
Display 10.4-inch touch screen
Import 1 IPEX, 4 C5
I/O Ports 2 USB 3.0 (HOST), 1 USB 2.0 (HOST)
DP(DisplayPort) (can transfer to HDMI)
WIFI
LEMO 1B encoder port
TTL I/O port
GPS Yes
Storage Internal: 64GB; External: USB flash disk
Weight 5kg (without battery)
Dimensions 350 mm×250 mm ×130 mm
(L×W×H)
AC 100V~240V 50Hz/60Hz
DC 13.5V
Battery Type Lithium battery
Battery Capacity Double battery, each<100Wh
Battery Life ≥4.5h
Temperature Operating Temperature Range:-10℃~40℃
Storage Temperature Range:-20℃~60℃
Ingress Protection Rating IP65
UT
PRF 25Hz~10kHz
Transmitter Voltage 75V~250V (50Ωload)
Pulse Width 30ns~1000ns, with step as 5ns
Damping 400Ω, 80Ω
Sampling Rate 100MHz
Bandwidth 0.5MHz~20MHz (-3dB)
Gain 0.0dB~110.0dB
Sensitivity Surplus ≥60dB (narrow bandwidth), ≥52dB (broad bandwidth) (2.5P20 transducers, 200mmφ2flat-bottomed holes)
Vertical Linearity Error ≤3%
Horizontal Linearity Error ≤0.1%
Resolution ≥26dB(2.5P20)
Dynamic Range ≥30dB
Filter High-pass, low-pass and multiple narrow band-pass
Rectification RF (TOFD mode), full wave, half wave +, half wave –
Channels 2 channels
Maximum Coverage 10000mm (in steel longitudinal wave)
Gate A/B/G
Gate Star Full range
Gate Width Gate start to full range
Gate Threshold 1~99%
Alarm Sound/Optical
Measurement Spot Front/Peak
TCG 16
Phased Array/TFM
Channels 32:128
Max Aperture 32 elements
Max Elements 128 elements
Focus Law ≥1024
Scanning Angle -89°~89°
Calibration Velocity, Delay, TCG,ACG, Encoder
Test Volume 1000mm
Min Angle Increment 0.1°( auto-adjustment)
Sampling Rate 100MHz, 10bit
Rectification Full wave
A-scan Screen Height 800% of screen height (Maximum)
Tunable Analog Gain 80dB
Max PRF 20kHz
Transmitter Voltage 20V~110V(50Ω load)
Pulse Type Bipolar square wave
Pulse Width 30ns~1000ns, step as 5ns
Bandwidth 0.5MHz~20MHz(-3dB)
Filter High-pass, low-pass, multiple narrow band-pass
Triggering Encoder, time-based
Measurement Spot Front/Peak
Readout Amplitude; beam path; horizontal; depth
Measurement Resolution 0.5mm
Scan Mode L/S/C/D –scan, TFM
Scan Length ≥15 meters
Scan Speed ≥30mm/s
TFM Imaging Live 2D
Number of Focus Points in TFM Max 1,000,000 points
3D-Reconstruction Imaging Yes




Scope:

  • Conventional Weld Inspection
  • Phased Array C-scan inspection of Composite materials
  • Inspection of Bolts and Screwed Pipes
  • Inspection of PE joints

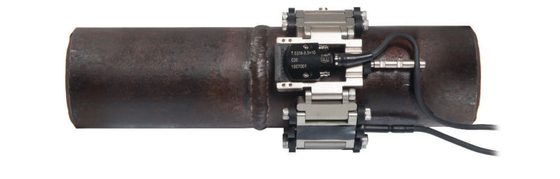

  • Solution of Small-diameter Tube Weld Inspection

Features:

Inspection Channels

  • 38:128PR Phased Array module
  • TFM imaging module
  • Concurrent scanning of TOFD and Phased Array
  • Supports dual-array probes
  • 2-channel TOFD; 2-channel conventional ultrasonic testing

The functionality of the HPA-620PRT offers a great satisfaction of users’ various demands.



Phased Array Module

  • Longitudinal wave TFM inspection; Transverse wave TFM inspection
  • Butt weld TFM inspection; Conventional butt weld inspection; Conventional butt weld inspection (with concurrent scanning of TOFD and Phased Array)
  • C-scan TFM inspection and conventional C-scan inspection for plates
  • TFM inspection and conventional inspection of bolts
  • Corrosion TFM inspection; conventional corrosion inspection
  • TKY inspection



TOFD module

  • Procedure parameter setup; probe and wedge parameter setup

Users are able to calculate relevant parameters based on the probe and procedure parameters, including: PCS, scanning coverage, bottom coverage, beam included angles.



Display

  • The HPA-620PRT is fitted with a 10.4-inch industrial-grade TFT screen, with touchable operation, providing optimal displays under strong light and outdoors.



Procedure Design

  • Offering process simulation models, the HPA-620PRT can also build a model by importing objects’ dimensions via CAD software. Customize users’ dedicated inspection process and provide one-stop service for the full-range of solutions.
