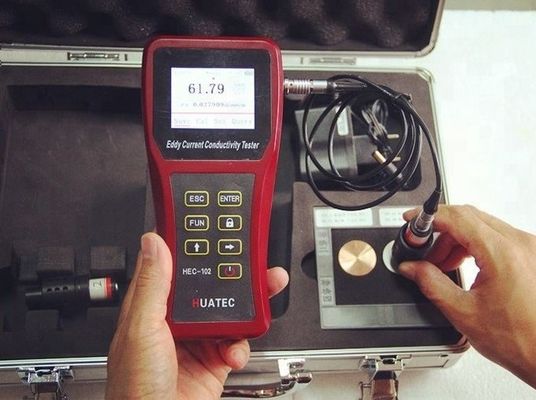

HEC-102 Non Ferrous Metals Portable Eddy Current Electrical Conductivity Purity Meter

HEC-102 Non-Ferrous Metals Portable Eddy Current Electrical Conductivity Purity Meter

HEC-102 are designed for quick & convenient measurement of material property, such as
material separate,quality control,material state check and so on.
HEC-102 use 60 KHz~120 KHz (aviation industry standard) to inspirit, the testing data can be read in two kinds of unit (%IACS and MS/m). The products can test electrical conductivity and resistivity at the same time, and they include the intelligent temperature and lift-off compensations,thus can guarantee the testing accuracy of each measurement. The big typeface and the backlight illumination designs are advantageous for users to take the testing data even in low light condition.
The products use the high property battery to make sure it keeps more running time, and because of their mini-size, you could easy to carry and to grasp hold. The design of the products are more advantages, such as users can replace the probe in the outdoor, don’t need to return the company to adjust the probe into matching the meter. HEC-10X can store 1000 measurement datas, moreover, users can use USB connect the meter to a PC to create testing report

Technical parameters

Measurement technology	Eddy current
Operating frequency	6.9~110%IACS(4.0~64MS/m)
Display screen	240X320 pixels TFT-LCD
L*B*H	180*90*40 mm
Instrument case	Anti-intense impact, water-proofing polyester; Toolbox.
Weight	300g
conductivity standard block	Verify and guarantee temperature compensation.
Measuring range	6.9%IACS-110%IACS(4.0MS/m-64MS/m)
Distinguishing rate	Conductivity : 0.01% IACS(MS/m) Resistivity: 0.000001Ω·(mm)2/m
Probe compensated	0.1mm
Measuring accuracy	0°C to 45°C ± 0.1%IACS~ 0.3%IACS
Temperature compensation	Automatic compensation to the value of 20 ℃.
Normal work environment	Relative humidity	0~95%
	Operating temperature	0℃~50℃
Data storage	Data Logger Memory Up to 1000 readings. Can use the USB data line connect to the computer to print
Probe	Probes 12.7 mm diameter, for 60 kHz; 8 mm probe operates at 120 kHz (optional) Φ12.7mm: Applicable to minimum measuring area diameter of10mm. Φ8mm: Applicable to minimum measuring area diameter of 7 mm.

Application:

1. Absolute measurement of electrical conductivity of nearly all non-ferrous metals;(Ti – Ag)

2. In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy;

3. Test the conductivity whenthe aluminum have not been oxidized;

4. Measurement the purity of non-ferrous metals;

5. Test the resistivity ofconductivematerials;

6. Analyze thermal properties ofmaterials.

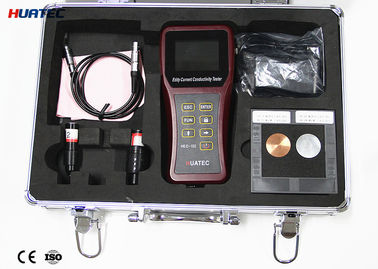

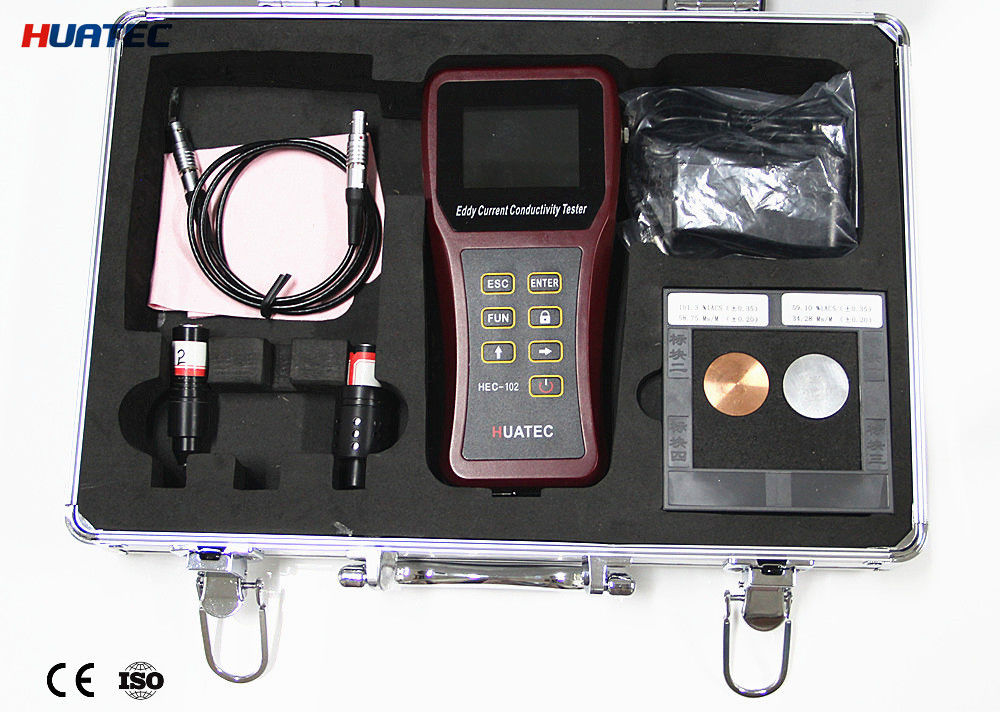

Standard delivery

Optional accessories

Probe dia.12mm

Probe dia.8mm

Calibration block

Probe cable
