RHL-40B Segment LCD Back Light Display Large Capacity Memory Leeb Hardness Tester

Name: RHL-40B Segment LCD Back Light Display Large Capacity Memory Leeb Hardness Tester
Brand: HUATEC GROUP CORPORATION
SKU: RHL-40B
Price: 305.00 USD
Availability: InStock

All Products

Non Destructive Testing Equipment
(696)

Ultrasonic Flaw Detector
(104)

X-Ray Flaw Detector
(119)

X-ray Pipeline Crawler
(13)

Magnetic Particle Testing Equipment
(162)

Eddy Current Testing Equipment
(32)

Radiography Film Viewer
(18)

Ultrasonic Calibration Blocks
(50)

Ultrasonic Probe
(22)

Radiation Monitoring Devices
(23)

Lead Intensifying Screens
(7)

Wire Type Penetrameter
(6)

Coating Thickness Gauge
(106)

Hardness Testing Machine
(133)

Portable Surface Roughness Tester
(39)

Metallographic Equipment
(31)

Portable Vibration Meter
(58)

Best Products

Digital Vibration Calibrator Calibrate Vibration Meter Vibration Analyzer Vibration Tester ISO10816 HG-5010

Certification

Customer Reviews

wide range of NDT products, we can get all in huatec group. We prefer to buy from them. Rudolf Shteinman Russia

—— Rudolf Shteinman

I like the service, very quick response, professional work. Aret Turkey

—— Aret Kaya

huatec hardness tester, very good quality,we are very satisfied with the portable hardness tester RHL-50. Kumaren Govender Sotuth Africa

—— Kumaren Govender

I'm Online Chat Now

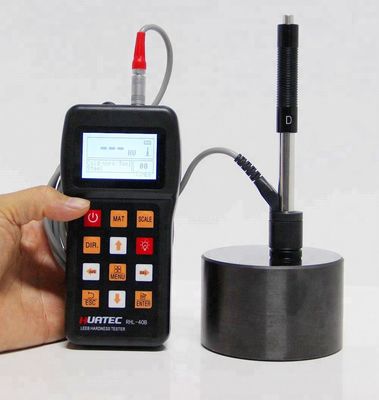

RHL-40B Segment LCD Back Light Display Large Capacity Memory Leeb Hardness Tester

Large Image : RHL-40B Segment LCD Back Light Display Large Capacity Memory Leeb Hardness Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	RHL-40B

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD285/set - USD325/set
Packaging Details:	Carton packing box
Delivery Time:	1-3 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

RHL-40B Segment LCD Back Light Display Large Capacity Memory Leeb Hardness Tester

Description

Measuring Range:

(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB

Accuracy:

±6HLD

Display:

Segment LCD

Data Memory:

Max. 100 Groups（relative To Impact Times 32～1）

Highlight:

LCD Leeb Hardness Tester

Large Capacity Memory Leeb Hardness Tester

RHL-40B Segment LCD Back Light Display Large Capacity Memory Leeb Hardness Tester

Features:

Compact plastic case,suitable for use under poor working conditions. Test at any angle, even upside down.
Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
Large screen (segment LCD), showing all functions and parameters. With EL background light.
Large capacity memory could store 100 groups information.
Datapro Software to connect with PC via RS232 port. Micro printer support
Software calibration function.

Technical Specifications:

Measuring range	(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB
Measuring direction	360°(↓↖↗↘↙→←↑)
Accuracy	±6HLD
Hardness Scale	HL,HB,HRB,HRC,HRA,HV,HS
Display	segment LCD
Data memory	max. 100 groups(relative to impact times 32～1)
Working voltage	3V(2 AA size alkaline battery)
Continuous working period	about 100 hours(With backlight off)
Communication interface	RS232

Main Application

Die cavity of molds

Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment
Heavy work piece
The installed machinery and permanently assembled parts.
Testing surface of a small hollow space
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece

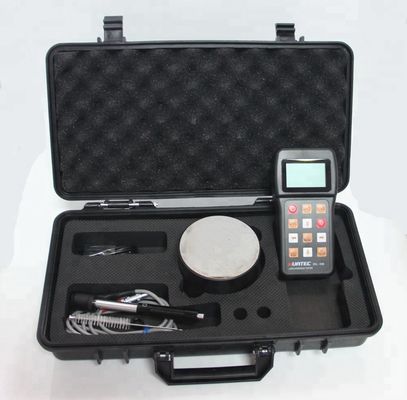

Configuration:

	No.	Item	Quantity	Remarks
Standard Configuration	1	Main unit	1
	2	D type impact device	1	With cable
	3	Standard test block	1
	4	Cleaning brush (I)	1
	5	Small support ring	1
	6	Alkaline battery	2	AA size
	7	Manual	1
	8	Instrument package case	1
Optional Configuration	9	Cleaning brush (II)	1	For use with G type impact device
	10	Other type of impact devices and support rings		Refer to Table 3 and Table 4 in the appendix.
	11	DataPro software	1
	12	Communication cable	1
	13	Micro Printer	1
	14	Print cable	1

RHL-40B Segment LCD Back Light Display Large Capacity Memory Leeb Hardness Tester 0
