TG4100 LCD Backlight Automatic Self Calibration Ultrasonic Through Coating Thickness Gauge

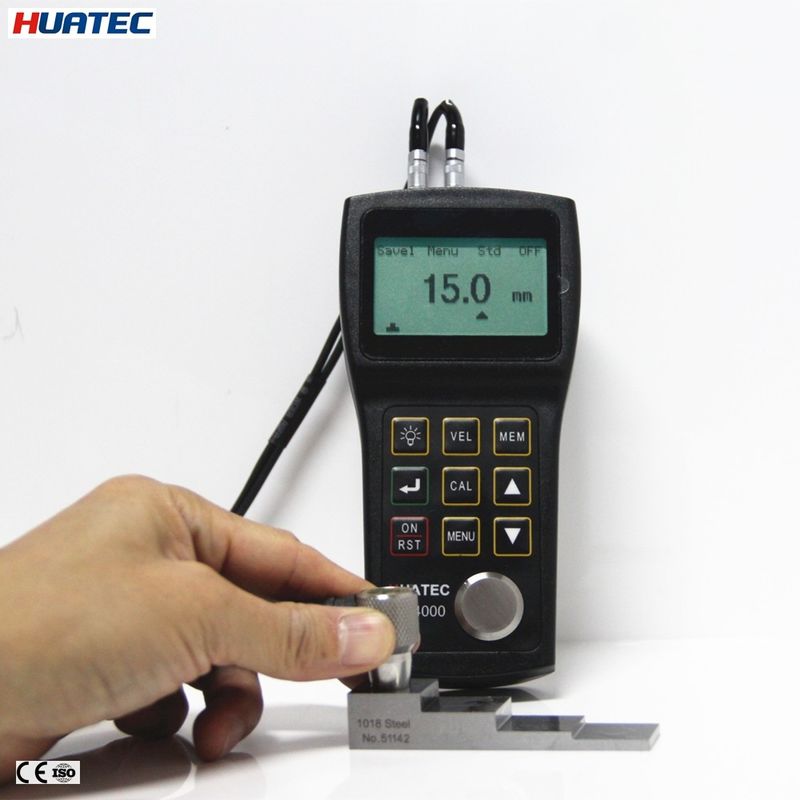

Large Image : TG4100 LCD Backlight Automatic Self Calibration Ultrasonic Through Coating Thickness Gauge

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	TG4100

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD709/set - USD802/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

TG4100 LCD Backlight Automatic Self Calibration Ultrasonic Through Coating Thickness Gauge

Description

Display:	128X64 Pixel LCD With Backlight	Tolerance:	+/-0.05 Mm In Steel
Display Resolution:	0.01 Mm( Less Than 100.0 Mm ) 0.1mm( Over 100 Mm )	Memory:	500 Datas In 5 Groups, Memory Does Not Lose After Powering Off
Velocity Range:	1000-9999 M/s
Highlight:	LCD Backlight Ultrasonic Thickness Gauge , Through Coating Ultrasonic Thickness Gauge , Automatic Self-calibration Ultrasonic Thickness Gauge

TG4100 LCD Backlight Automatic Self-calibration Ultrasonic Through Coating Thickness Gauge

FEATURES
- Automatic self-calibration
- Couplant indicator
- Automatic power off in 5 minutes and manual power off function
- High-low limit alarm
- LCD brightness adjustable
- Through coating capability
- Low battery indicator
- Two points calibration
- Metric/imperial optional
- Dataview for PC communication

TECHNICAL DATA

Display	128X64 Pixel LCD with backlight
Measuring range	Standard mode 0.8 mm-- 300.0 mm in steel depending on the probe Special request can reach measuring range up to 500mm Through coating mode 2.5 mm – 18.0 mm (Probe PT-08 and PT-12 )
Tolerance	+/-0.05 mm in steel
Display resolution	0.01 mm( Less than 100.0 mm ) 0.1mm( over 100 mm )
Built-in standard block	block 4.00 mm
Memory	500 datas in 5 groups, memory does not lose after powering off
Velocity range	1000-9999 m/s
Power	2 pcs 1.2 V AAA batteries
Outside dimension	149X73X32 mm
Net Weight	160 g

STANDARD DELIVERY
Ultrasonic Through Coating Thickness Gauge TG4100 main unit with through coating mode
Hard carrying case
Couplant bottle
Standard 8 mm, 5 MHzprobe PT-08 with cable (through coating mode)
Dataview CD and communication cable

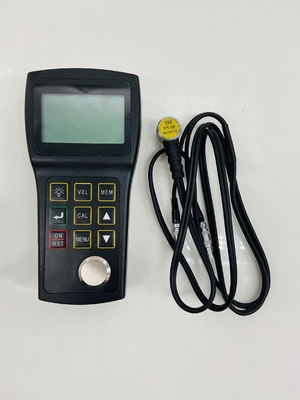

TG4100 LCD Backlight Automatic Self Calibration Ultrasonic Through Coating Thickness Gauge 0
