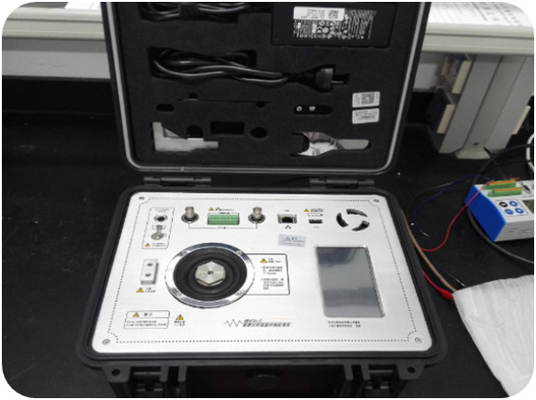

10 Hz To 4000 Hz Laboratory On Site Portable Shaker Vibration Calibrator Handheld HG-5029M

HG-5029MPortable medium frequency vibration calibration device

The portable IF vibration standard device integrates a small IF standard vibration table, built-in acceleration sensor and 24-bit dynamic signal analyzer, which has high precision and good stability, and can complete the calibration of working vibration meter, acceleration sensor, speed sensor, displacement sensor and other instruments on site. It can be used in metrological calibration laboratory, enterprise or field.

Main feature

 high integration

 Built-in 24-bit high precision vibration controller

 can be automatically calibrated independently

 can be connected to external laptop control

 with built-in large capacity lithium battery

 has a variety of extension tools

Main technical index

 Frequency range: 10 Hz to 4000 Hz

 Maximum acceleration: ≥100 m/s2

 Standard sensor frequency range: 10 Hz ~ 10 kHz;

 Number of input channels for dynamic signal analyzer: ≥2pcs

 Signal analysis Dynamic range: better than 100 dB

 Signal analysis frequency range: better than 100 kHz
