Customization Non Metallic Ultrasonic Thickness Gauges for Concrete

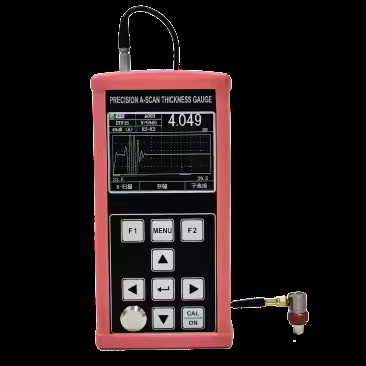

Large Image : Customization Non Metallic Ultrasonic Thickness Gauges for Concrete

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	TG-6200

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD
Packaging Details:	Carton
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union/Paypal
Supply Ability:	500PCS

Contact Now

Customization Non Metallic Ultrasonic Thickness Gauges for Concrete

Description

Product Name:

Ultrasonic Thickness Gauges

Usage:

Ultrasonic Thickness Gauges For Non-metal

Measuring Range:

20um - 1800um

Customized Support:

OEM

Highlight:

Concrete Ultrasonic Thickness Gauges

Customization Ultrasonic Thickness Gauges

Non-Metallic Ultrasonic Thickness Gauges

High Quality Non-Metallic Ultrasonic Thickness Gauges for Concrete

Applicable material

Measure the coating thickness on metal and non-metal (glass, composite, plastic, concrete, wood, etc.) substrates

Suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, resin, glass fiber and other good ultrasonic conductors.

item	TG-6200
Probe type	Single crystal/twin crystal
Measuring range	20um – 1800um
Measurement frequency	4Hz,8Hz,16Hz
Resolution	0.1mm,0.01mm,0.001mm(0.01inch,0.001inch,0.0001inch)
Pulse generator	Negative square wave emission, pulse width and voltage are automatically matched to the probe
sound velocity Range	400-19999m/s
Calibration block	4mm(steel)
Automatic shutdown	You can choose 5 minutes, 10 minutes, 20 minutes, manual shutdown
Probe calibration	One-point calibration, two-point calibration, manual calibration
gain	Automatic gain, manual gain
gain range	0~80dB
Detection mode	RF, positive half wave POS, negative half wave NEG, FULL wave
Measurement mode	(1) Thin-EE: THIN film coating mode (2) MB-E: transmit pulse initial wave to a single echo; (3) E-E: Through the coating measurement, optional any EM-EN echo; (4) THIN: thin wall measurement mode
Numerical model	Thickness value mode, difference/reduction rate mode, maximum/minimum mode
A- Scan mode	support
B- Scan mode	support
Coupling indication	support
Battery indicator	support
Language	English
unit	mm/inch
Menu operation	support
Software function	Dynamic gate Settings, blanking Settings (Blank), Echo blanking Settings (E-Blank), echo freeze, echo Pan and zoom
Storage function	At the same time, 100,000 thicknesses (100 groups, each group of 1000), 500 groups of A scan waveforms and 500 groups of B scan waveforms are supported
Host program upgrade	Support host program upgrade
Display screen	3.5 "true color screen
Data transmission	Support USB communication, data transfer to the computer
Operating temperature	-10℃ ~ +50℃, with special requirements up to -20℃
Operating voltage	3pcs No. 5 lithium-ion batteries with a low voltage warning when low
Overall dimension	184 x 85 x 32 (mm)
Machine weight	250 g(Battery not included)
Standard configuration	main machine and 1pc special probe for coating No. 5 lithium battery 3, a charger, a set of random files, shock-proof and waterproof instrument case 1

The principle of pulsed reflection ultrasonic thickness measurement is applicable to the measurement of ultra-thin film material or coating thickness that can make ultrasonic wave propagate in it at a constant speed and can be reflected from its back.
