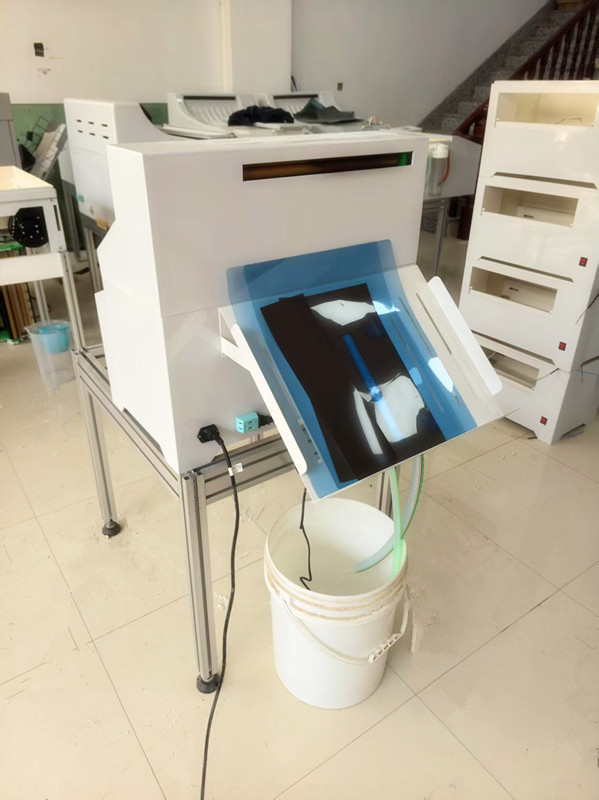

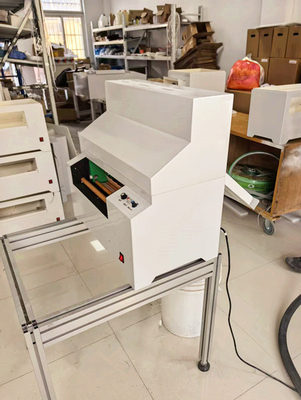

HUATEC HDL-380 Film Dryer With 8 Air Flow Channels

HDL-380 Film dryer with 8 air flow channels

Technical parameters and specifications

● Drying process: → → Water washing → → Drying → →

● Film release method: front/back film release

● Film development speed: 40-240s adjustable

● Sheet feeding width: 360mm

● Moving speed: 950mm/min (running time: 40 seconds)

● Dry tablet quantity: 80X360mm (4 "X14") film 600 sheets per hour (dry film speed 40s)

● Power supply: 200-240V. 50/60Hz 5A

● Water consumption: 2 l/min during film operation

● Volume: 560mmX480mx545 (length x width x height)

● Add the function of chip induction

● 8 air flow channels, Improved air duct, higher drying efficiency

● Roller shaft: DuPont foamed uranium is used to ensure that it will not harden within 5 years

● Shell: engineering PVC plastic

● Heating element: PTC heating element

● Temperature control mode: constant temperature control with solid-state relay

● Optional parts: water washing circulating device, which aims at no tap water, poor water quality or frequent water stoppage at the use site
