TG-6006 0-6000μm Big Range Anticorrosive Coating Thickness Gauge

TG-6006 0-6000μm Big Range Anticorrosive Coating Thickness Gauge

General introduction

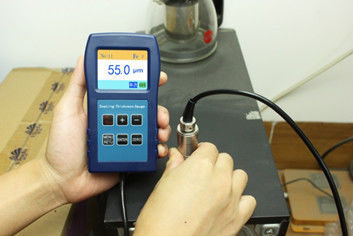

TG-6006 big range anticorrosive coating thickness gauge is a professional non-destructive testing instrument for measuring the thickness of coated objects on the surface of magnetic metal materials. Using magnetic thickness measurement method, it can non-destructively measure the thickness of non-magnetic coatings (galvanized, chromium, impregnated, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coatings, anti-corrosion and fireproof coatings, etc.) on magnetic metal substrates (such as steel and iron). The instrument has a precise and firm structure, good repeatability, excellent performance, simple use and convenient portability.

Technical parameters

Application field

Widely used in coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.

Instrument features

Simple operation, fast test speed, good sensitivity and high measurement accuracy

Using alloy probe, hard and durable, accurate

There are two measurement methods: continuous measurement and single measurement

There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), and number of measurements (No).

Mass storage, can be divided into 10 groups of storage, 200 in each group, a total of 2000 data can be stored

Store data view delete function

Three calibration methods: zero calibration, two-point calibration, and multi-point calibration

Upper and lower limit alarm function (can be set in single measurement mode)

The operation process is marked by a beep (in single measurement mode).

Automatic identification of ferrous and non-ferrous substrates

Metric conversion μm/Mil

Sunshine mode (used in strong light)

English bilingual version

2.3-Inch large color screen with large font size display

Manual/automatic shutdown function

Standard configuration

1 Host TG-6006 √

2 Standard tablets √

3 Iron matrix √

4 Instruction manual √

5 Certificate of conformity √

6 Cleaning cloth √
