Geomembrane Leak Detector Spark Detector HD-107

Large Image : Geomembrane Leak Detector Spark Detector HD-107

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	HD-107

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union/Paypal
Supply Ability:	500PCS

Contact Now

Geomembrane Leak Detector Spark Detector HD-107

Description

Name:

Geo-membrane Leakage Detector

Voltage Output Range:

1.0-50KV

Leak Point Count:

Maximum 999

Ensitivity:

Adjustable

Highlight:

Geomembrane Leak Detector

Geomembrane Spark Detector

Geomembrane Leak Detector Spark Detector HD-107

HD-107 geomembrane leakage detector is a high-pressure instrument, which is used to detect the surface integrity of external leakage geomembrane. It can identify any damage points caused by transportation, installation and maintenance of geomembrane.

2．Technique parameter

Voltage output range	1.0-50KV
Leak point count	Maximum 999
Sensitivity	Adjustable
Shutdown	Manual and automatic
Battery	12.6V 4400mAH

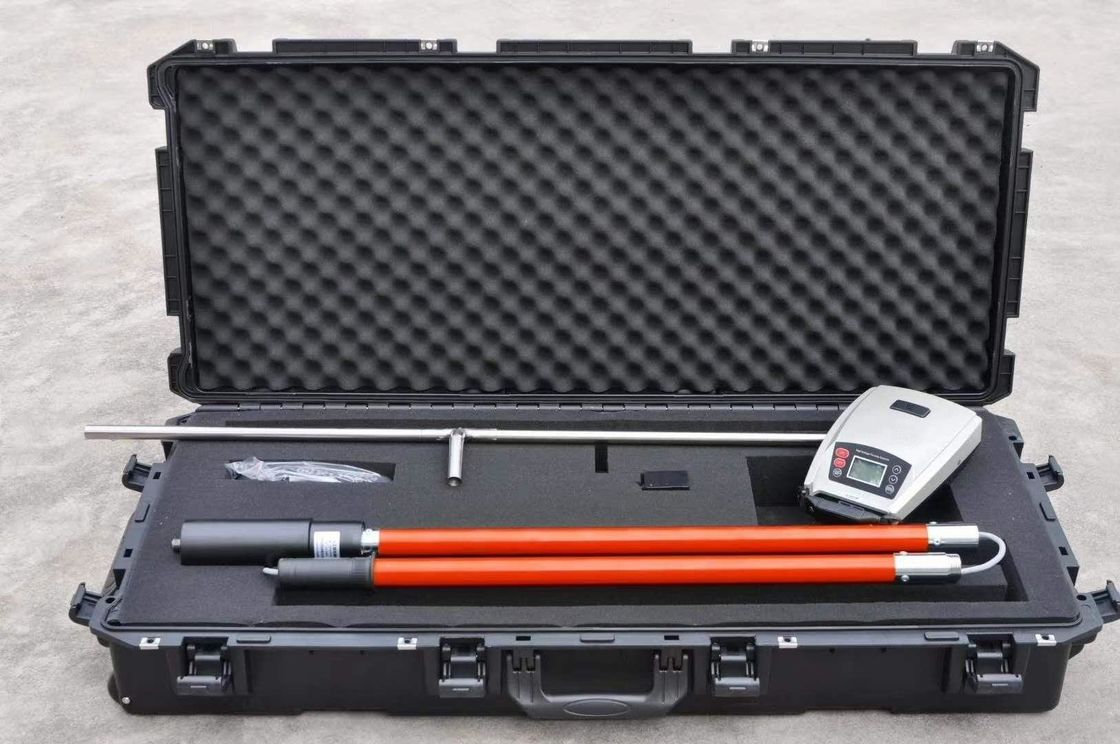

Packing list
⑴ HD-107 geomembrane leakage detector　　 1

⑵High voltage test rod　　　　　　　　　　1

⑶Probe brush 　　　　　　2

⑷Back belt1

⑸Fuse 2

⑹Ground wire 　　　　　　　　　　　　　 1

⑺Charger 　　　　　　　　　　　 1

⑻Instruction 　　　　　　　　　　　　 1

⑼Warranty card 　　　　　 1

⑽Grounding rod 1

⑾Strong magnet 1

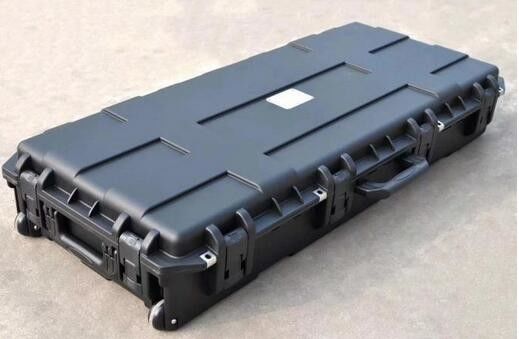

⑿Detector box 1

Note:Can be customized according to user requirements of various specifications of probe brush.
