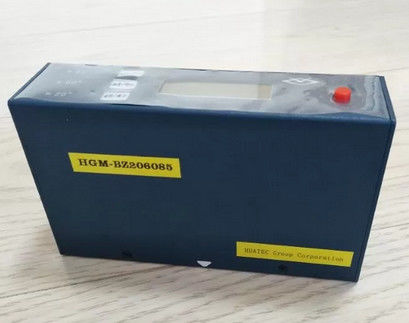

HGM-BZ206085 Intelligent Three Angle 0.4Gs/30min Non metallic Coatings Gloss Meter

Large Image : HGM-BZ206085 Intelligent Three Angle 0.4Gs/30min Non metallic Coatings Gloss Meter

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HGM-BZ206085

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD575-USD715/SET
Packaging Details:	Black hard plastic box+Outer carton packaging
Delivery Time:	3-5 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

HGM-BZ206085 Intelligent Three Angle 0.4Gs/30min Non metallic Coatings Gloss Meter

Description

Display Range:	0.0-300.0(Ｇs)	Display Error:	＜1.2(Ｇs)
Stability:	<4Gu/30min	Angle:	20°, 60°，85°
Measurement Spot:	16×48（mm）rectangular	Dimension:	138×36×82 （mm）
Power Supply:	4.8V （Rechargeable Battery Inside）
Highlight:	Non-metallic Coatings Gloss Meter , Intelligent 3 Angle Gloss Meter , 30 min Gloss Meter

HGM-BZ206085 Intelligent Three Angle 0.4Gs/30min Non-metallic Coatings Gloss Meter

Standard

International standard ISO2813, ASTM-D2457, DIN67530 and China standard GB9754, GB9966, GB8807.

The technical parameters follows China metrology standard JJG696-2002.

Parameter

The technical parameters up to JJG 696 (First-level standard).

1, test swpe:0.0-300.0(Ｇs)

2, test accuracy:＜1.2(Ｇs)

3, stability:0.4Gs/30min

4, test caliber:16×48(mm) rectangular

5, size:138×36×82 (mm)

6, power:4.8V (Rechargeable battery inside)

Application

1.Measurement of the gloss of all kinds of non-metallic coatings.
2.Measurement of the surface gloss of the non-metallic decorative material.
Monolithic integrated circuit control circuit, new pressed key operation, dexterous portable, only needs a calibration, the intelligent record calibration value, cuts the angle not to need directly to calibrate.

Features
1. Small and light, real easy to be carried and used.
2. 4.8V rechargeable Battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing forever.
5. Quartz crystal standard board, no excursion.

6. Single-chip microcomputer control circuit, the new keystrokes, light and portable, a single calibration, intelligent calibration record values

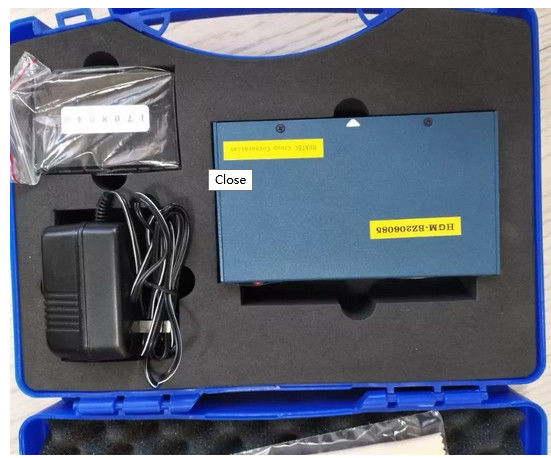

Standard Delivery

Gloss meter	1pc
Instrument case	1pc
Standard board	2pc A black board is used for the highlight calibration A white board is used for the low light calibration
Battery charger	1pc
English instruction manual	1pc
Calibration certificate	1pc
