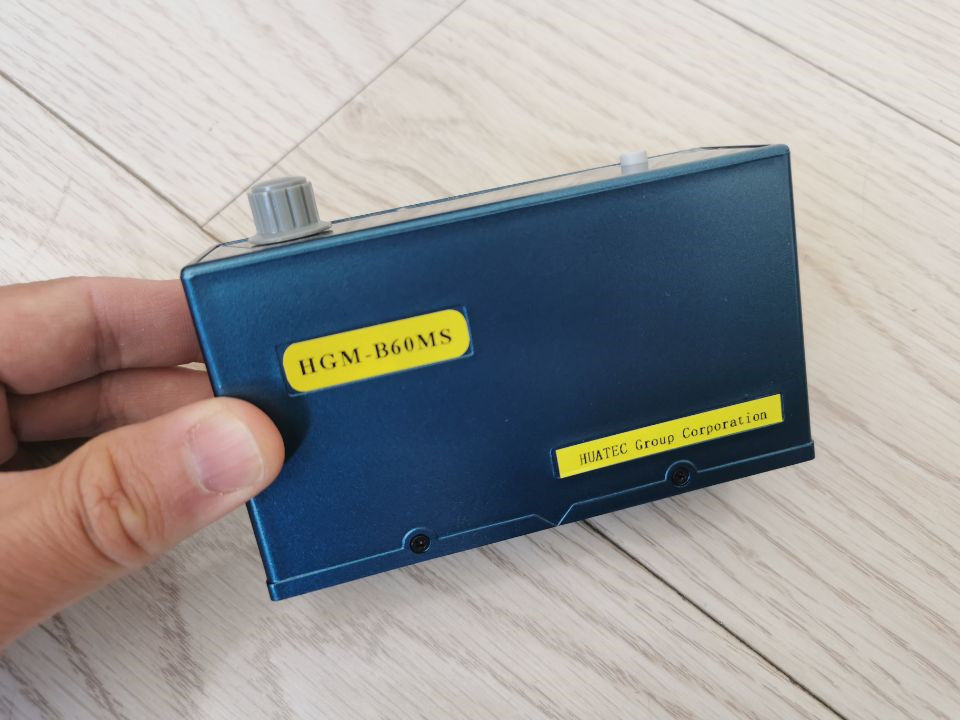

HGM-B60MS High Precision Metal Small Pass Miniaturized Coating Surface Gloss Meter

HGM-B60MS metal small-pass gloss meter is a high-precision and miniaturized gloss meter manufactured in accordance with the standards of ISO-2813, ISO7668 and GB9754. It is suitable for the measurement of the mirror gloss value of coating or metal surface and other small measuring surfaces (such as polished metal decorative parts).

2.HUATEC Gloss meter Reference angle for different application

3.Application

4. The technical parameters up to JJG 696 (First-level standard).

1. Display range of:0-2000 (Ｇs)
2. Display error:0-199<2 Gu,120-1000<1% Gu
3. Stability:<2Gu/30min
4. measurement spot:14×28(mm)
5. dimension:114×35×65 (mm)
6. power supply:1.5V
7. Measuring window size :1.5mm short axis ×3mm long axis (ellipse)

5. Calibration:
When the standard equipment on board and show that numerical standards board is greater than the difference between the nominal value of 1.2 gloss units, the following methods should be calibrated
Measuring instruments on the window and down the board, press the "home / home zero" key, show value for the 0.0 at this time.
A black glass plate instead of the standard black-velvet panels, measuring instruments on the window, rather than pressing the "calibration / measurement of" key, set to enter the state, showed that at this time, "000.0" and the first "0" flashes. Rather than pressing the "shift" key-flashing shifted to right, rather than pressing the "home / home zero" key "flicker" values change from 0-9-0, through pressed "shift" and "home / home zero" Made with numerical keys and display glass panels with a nominal value of the same standard, at this time rather than pressing the "calibration / measurement," the completion of key settings. Then white ceramic standard equipment on board, show value and the standard white ceramic plate with a nominal value of the error should not be greater than ± 1.2 gloss units, or else should be considered standard dirty plates. After the completion of the above-mentioned steps can be measured samples.
