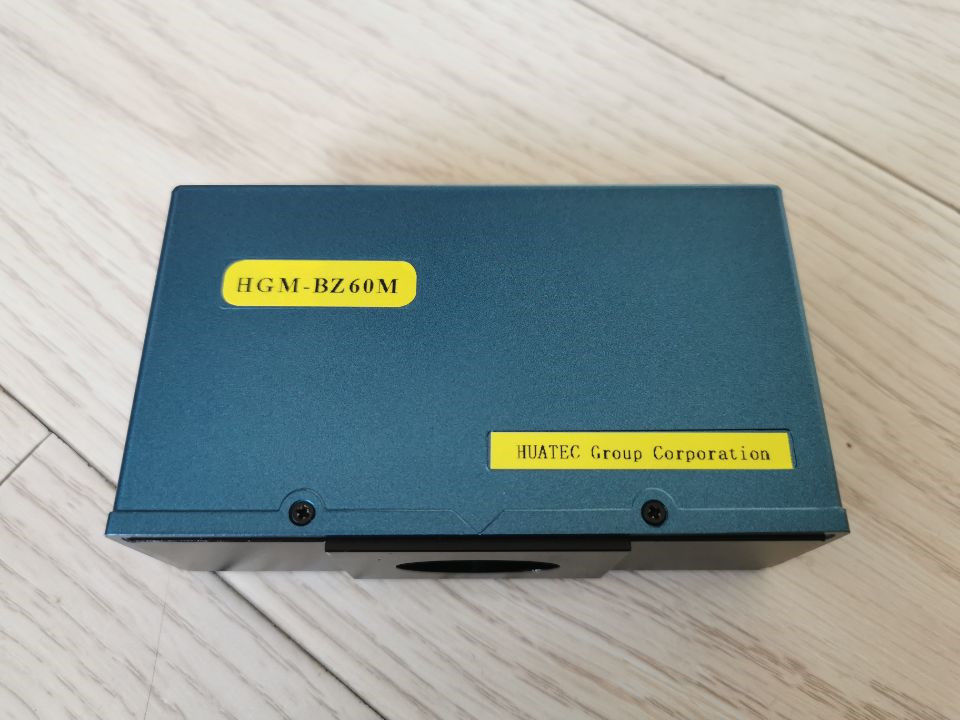

HGM-BZ60M Intelligence High Accuracy Miniaturized Metal Mirror Gloss Meter

HGM-BZ60M. The intelligence gloss meter executive the ISO-2813,ISO-7668,GB8807standard which is the high accuracy, the miniaturized intelligence gloss meter.

2.Application

●All kinds of coating and finishing surfaces, such as paints, varnishes, printing ink, etc.
●Decorative materials, such as marble, granite, polishing brick, ceramic tile and so on.
●The other kinds of materials and objects, such as plastic, woodenware, paper, etc.

HUATEC Gloss meter Reference angle for different application

3.Technical parameter

The technical parameters up to JJG 696 (First-level standard).

(1)display range of:0.0-119.9,120-1000 Gu

(2)display error:0.0-119.9<1 Gu,120-1000<1% Gs

(3)stability:0.0-119.9 <0.4Gu/30min,120-1000 Gu <2Gu/30min

(4)measurement spot:14×28(mm)ellipse

(5)dimension:114×35×65 (mm)

(6)power supply:4.8V (Rechargeable battery inside)

4.Features
1. Small and light, real easy to be carried and used.
2. 4.8V Rechargeable battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing forever.
5. Quartz crystal standard board, no excursion.

6. Single-chip microcomputer control circuit, the new keystrokes, light and portable, a single calibration, intelligent calibration record values

Standard Delivery
