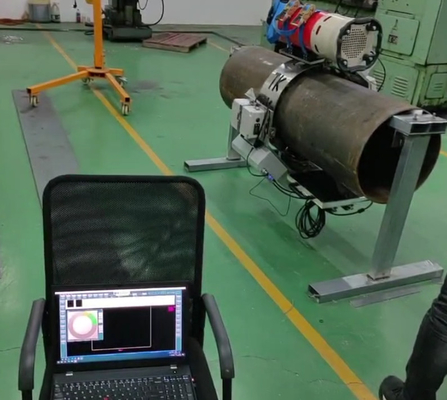

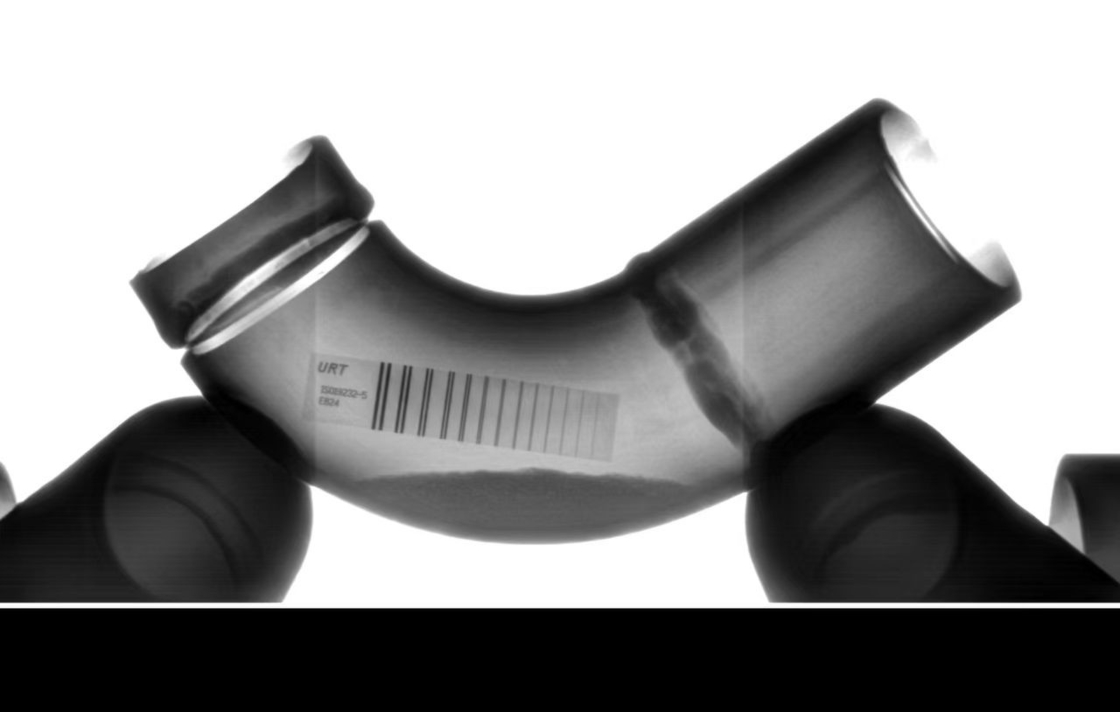

HXPC-200A Pipeline Outer Wall Crawler System

HXPC-200A Pipeline Outer Wall Crawler System

1. General introduction

(1) Equipment brand: HUATEC

(2) Model: HXPC-200A

(3) Travel speed: ≥100mm/s;

(4) The walking mode adopts the track type to ensure the vertical orientation of the weld: ±1mm, the walking direction orientation

Accuracy: ±1mm;

(5) It can meet the driving requirements of double-wall single-shadow directional ray machine for pipelines with a diameter of less than 1600mm;

(6) Use 5G dual-band wireless communication system, control distance: 100 meters (open land);

(7) The use of 36V integrated low-temperature lithium battery power supply, easy to replace, can work normally at minus 40℃;

(8) Working hours: more than 8 hours;

(9) Power consumption: ≤150W;

(10) Synchronous drive with the tube wall climbing vehicle (flat scanner) to complete the double-wall single-shadow DR Transillumination detection requirements

2. Portable X ray flaw detector

(1) Equipment name: portable high frequency constant pressure X-ray flaw detection machine

(2) Model: XXG 300JYGF

(3) X-ray tube: metal ceramic tube

(4) X-ray tube power supply mode: constant voltage

(5) X-ray tube voltage regulation range: 50-300kV

(6) Tube voltage regulation step: 1kV/step

(7) X-ray tube current: 0.5-3.0mA

(8) Tube current regulation step: 0.1mA/step

(9) Maximum exposure time: 99 minutes 59 seconds

(10) Delay high pressure adjustment range: 0-99 seconds

(11) Maximum power of X-ray tube: 900W

(12) Operating frequency: 100kHz

(13) Focus size: AC.EN12543 d=3.0mm (AC.IEC 336 1.5mm)

(14) Penetration thickness: 65mm (A3 steel, focal length 700mm, HUATEC D7 film, negative black ≥2.0, 10

Minutes)

(15) Temporary load rate: 100% (at ambient temperature of 20℃, maximum power conditions)

(16) Radiation Angle: 40°x 55°

(17) Internal filter: 1mmBe

(18) Additional filter: 4mm Alequivalent

(19) Pipe head size: φ295mmx775mm (including end ring)

(20) Tube head weight: 29kg

(21) Connection cable: 50M

(22) Power cable: 10M

(23) Controller size: 465mmx154mmx323mm

(24) Weight of controller: 11.3kg

(25) Input power: 200-250VAC, 47-400Hz

(26) Anode cooling method: forced air cooling

(27) Allowable ambient temperature: -20℃~+40℃

3. Standard accessories include:

DR panel detector pipe outer wall climbing machine

X ray machine pipe outer wall climbing machine

Digital flat detector 1024,76μm,image area 233 x 97mm

Digital image acquisition and processing software

Laptop computer

High frequency constant pressure X ray flaw detector (directional)

Crawler guide rail: Ø813mm, Ø1016mm, Ø1219mm, Ø1422mm 4pcs.
