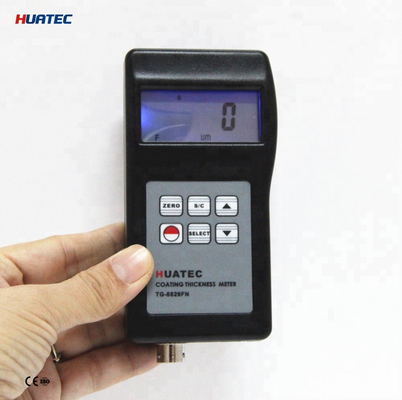

TG-8829FN Car Industry Dry Film Coating Thickness Gauge

TG-8829FN Car Industry Dry Film Coating Thickness Gauge
TG-8829FN Car Industry Dry Film Coating Thickness Gauge TG-8829FN Car Industry Dry Film Coating Thickness Gauge

Large Image :  TG-8829FN Car Industry Dry Film Coating Thickness Gauge

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: TG-8829FN
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD212/set - USD240/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

TG-8829FN Car Industry Dry Film Coating Thickness Gauge

Description
Measuring Range: 0-1250um/0-50mil Resolution: 0.1/1
Accuracy: ±1-3%n Or ±2.5um Min. Measuring Area: 5mm
Min. Sample Thickness: 0.3mm Operating Conditions: 0-+45℃(32℉-104℉),≤90%RH
Highlight:

Car Industry Coating Thickness Gauge

,

Dry Film Coating Thickness Gauge

TG-8829FN Car Industry Dry Film Coating Thickness Gauge



Description:
Operating principle: magnetic induction/eddy current (F/NF)
With separate probe(s)

Auto power off



Application:
1. Coating thickness gauge TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. Coating thickness gauge TG-8829N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)



Measuring range 0-1250um/0-50mil
Resolution 0.1/1
Accuracy ±1-3%n or ±2.5um
Min. measuring area 5mm
Min. sample thickness 0.3mm
Battery indicator low battery indicator
Metric/ imperial convertible
Power supply 4x1.5V AAA(UM-4)battery
Operating conditions 0-+45℃(32℉-104℉),≤90%RH
Dimensions 124x62x30mm
weight 115g

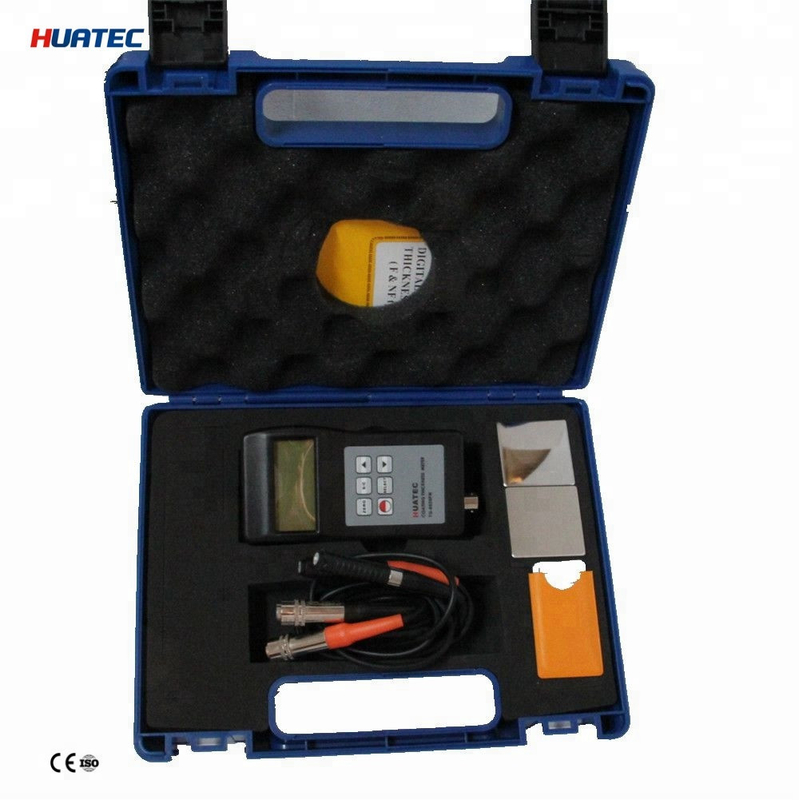

Standard Delivery:
Main unit 1
F type probe 1
N type probe 1
F calibration base set 1
N calibration base set 1
Calibration foil set 1set (4 foils)
Carrying case 1
Instruction manual 1


Optional Accessories:
Cable and software for RS-232C
Customized testing range

TG-8829FN Car Industry Dry Film Coating Thickness Gauge 0TG-8829FN Car Industry Dry Film Coating Thickness Gauge 1
