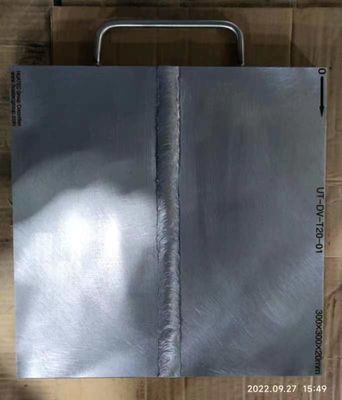

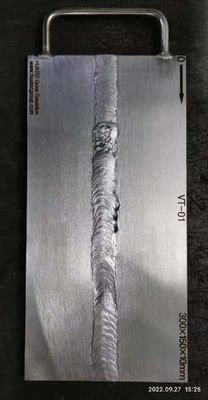

Flawed Test Specimens UT-PT-MT Weld Seam Test Block Defects 1/2/3 Superior Performance

Large Image : Flawed Test Specimens UT-PT-MT Weld Seam Test Block Defects 1/2/3 Superior Performance

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	UT-PT-MT

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton packaging box
Delivery Time:	5-7 working days
Payment Terms:	T/T,Paypal
Supply Ability:	10pcs/month

Contact Now

Flawed Test Specimens UT-PT-MT Weld Seam Test Block Defects 1/2/3 Superior Performance

Description

Defects:

1/2/3

Highlight:

UT Weld Seam Test Block

Weld Seam Test Block

PT Weld Seam Test Block

Flawed Test Specimens UT-PT-MT Weld Seam Test Block

Serial number	Specimen type	Size: mm	Welded joint type	note
MT/PT-01	Plate – plate (single V)	300X300X10		1or2 defects
MT/PT-01	Plate – plate (single V)	300X150X10		Stainless steel
UT-01	Plate – plate (single V)	300X300X12		3 defects
UT-02		300X300X16
UT-03		300X300X20
UT-04	Plate - plate (double V)	300X300X20
UT-05		300X300X22
UT-06		300x 300X25
UT-07		300X 300X 30
UT-08	Tube-tube (single V)	φ105X 12X300
UT-09		φ155X 16X 300
UT-10		φ155X20X 300
UT-11		φ155X 25X 300
UT-12		φ1550X 12X300
UT-13		φ200X12X300
UT-14		φ200X20 X300
UT-15		φ200X25X 300
UT-16		φ290X25X 300
UT-17	Plate - plate T type (single V)	200X 250X 300X 12
UT-18		200X 250X 300X20
UT-19		200X 250X 300X25
UT-20	Plate - plate T type (double V)	200X 250X 300X20
UT-21	Plate - plate T type (double V)	200X 250X 300X25
UT-22	Plate - plate Y type (single V)	200X250X300X20
UT-23	Tube - plate T type	Tube:φ105X12X 150
UT-23		Plate: 400X 400X20
UT-24	Tube - plate T type	Tube: φ200x12x 150
UT-24	Tube - plate T type	Plate: 500X 500X20
UT-25	Tube-plate T type (insert type)	Tube: φ105X 12X 150
UT-25	Tube-plate T type (insert type)	Plate: 400X400X20
UT-26	Tube-plate T type (insert type)	Tube: φ200x12x 150
UT-26	Tube-plate T type (insert type)	Plate: 500X500X20
