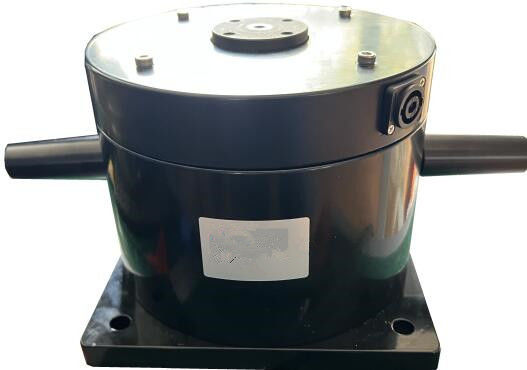

HG-5024M Non Destructive Testing Equipment Standard Vibration Table

Large Image : HG-5024M Non Destructive Testing Equipment Standard Vibration Table

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	HG-5024M

Contact Now

HG-5024M Non Destructive Testing Equipment Standard Vibration Table

Description

Maximum Sinusoidal Excitation Force:

≥120N(200N Air Cooling)

Operating Frequency:

5Hz～10000Hz

Maximum Acceleration:

1m/s2～700m/s2（Peak Value）

Maximum Speed:

1.4m/s（Peak Value）

Highlight:

non destructive Standard Vibration Table

Standard Vibration Table

ndt Standard Vibration Table

HG-5024M standard vibration table

HG-5024M standard shaking table uses rare earth Ndfeb permanent magnet material; It has the characteristics of small volume, light weight, wide frequency range, reasonable structure and high reliability. Specially designed for vibration calibration, vibration test and vibration test of the standard vibration source, can be used as vibration sensor calibration, calibration and testing, can also be used for large and medium-sized instrument parts of the environmental vibration, fatigue test, small and medium-sized structure measurement of dynamic response, resonance frequency and mechanical impedance test, modal test.

Maximum sinusoidal excitation force	≥120N(200N Air cooling)
Operating frequency	5Hz～10000Hz
Maximum acceleration	1m/s2～700m/s2(Peak value)
Maximum speed	1.4m/s(Peak value)
Maximum displacement	12.7mm(peak-to-peak)
Leakage flux	＜5mT
Signal-to-noise ratio	≥50dB
Frequency stability	≤0.1%
Amplitude stability	≤0.3%
Distortion degree	≤5%
Transverse vibration	≤10%
Frequency indication error	≤0.1%
Support stiffness	5.6N/mm
Coil dc impedance	0.8Ω
Maximum input current	15Arms(25Arms Air cooling)
Quality of moving parts	180 g
weight	35kg
Table size	Ф62.5mm(Mounting holeФ50.8,5-M8)
Overall dimension	Ф215×200mm
Temperature range	Operating temperature: 5℃ ~ 40℃; Storage temperature: -20℃ ~ 70℃.
Relative humidity	Not more than 75% (The temperature is not more than 30℃)
exportation	4-pin socket
Recommended power amplifier	LA-500(20V25A)

HG-5024M Non Destructive Testing Equipment Standard Vibration Table 0
