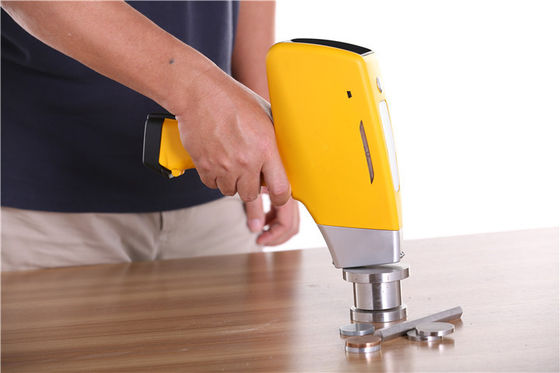

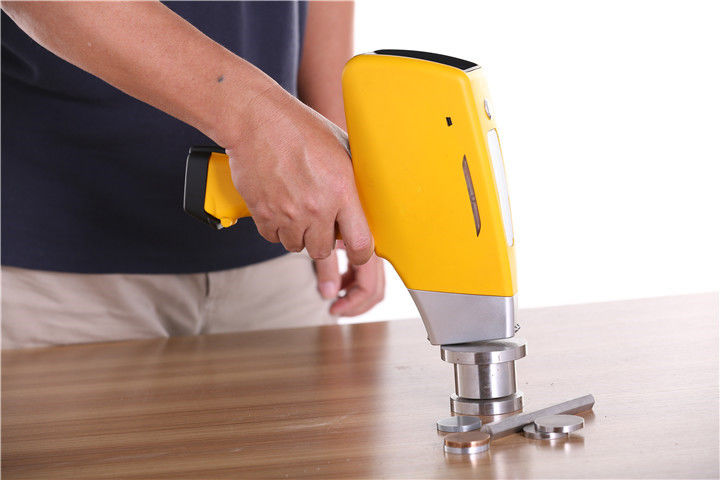

HXRF-580GF Handheld High Coordination Gold Alloy Analysis Spectrometer
Product function, analysis accuracy and stability
(1) Function
(1) All elements between Mg (magnesium) and U (uranium) can be analyzed.
(2) More than 2,000 kinds of alloy grades can be analyzed, and the machine comes with a database of alloy grades up to 300 kinds.
At the same time, users can customize and add more than 300 kinds of gold medal database.
(3), used for stainless steel, alloy steel, tool steel grade identification and composition, content detection, including commonly used stainless steel grade 201 203 301 304 316 321 and other hundreds of kinds.
(4), used for copper alloy grade and composition testing, including brass, bronze, copper, pure copper and so on.
(5), used for a variety of hybrid alloy composition and detection, including titanium alloy, tin alloy, lead alloy, tungsten alloy, zinc alloy
Gold, aluminum alloy, nickel alloy, etc.
(6) For precious metal detection. Contains gold, silver, platinum, rhodium, palladium.
(2) Analysis accuracy and stability:
Component analysis:
At the same time, it can analyze stainless steel, copper alloy, zinc alloy, aluminum alloy, iron alloy, lead tin alloy and other alloys.
The elements H, He, Li, Be, B, C, N, O cannot be analyzed for the moment
Technical parameters and indicators
| Excitation source |
Ray tube target material can be selected silver (Ag), tungsten (W)
|
| Voltage, current and power |
High power micro X-ray tube 50KV, 100MA, 4W |
| Filter |
Six selectable filters automatically adjust according to different objects
|
| Detector |
High performance high resolution SDD X-ray detector |
| Detector cooling temperature |
Peltier effect semiconductor cooling, cooling temperature -35
|
| Standard film |
External 316 standard cap with test window protection function;
Resolution: <180
|
| Power Supply |
8 hours /2 lithium power supply and AC power supply |
| Processor |
Intel 400MHz StrongArm processor |
| Operating System |
Mobile Windows CE system |
| Compatibility |
Bluetooth |
| Software standard mode |
Alloy |
| Data processing |
8G large-capacity data memory card: ≥ 40,000 sets of data and spectrogram.
|
| Data analysis |
Multiple analysis modes, including basic parameters, Compton normalization, empirical calibration mode. |
| Data display |
Focus on ppm with percentage (%) display, spectral or peak intensity (count rate) or user defined units
|
| Data transmission |
RS232 serial cable, Bluetooth, EXCEL output |
| Display |

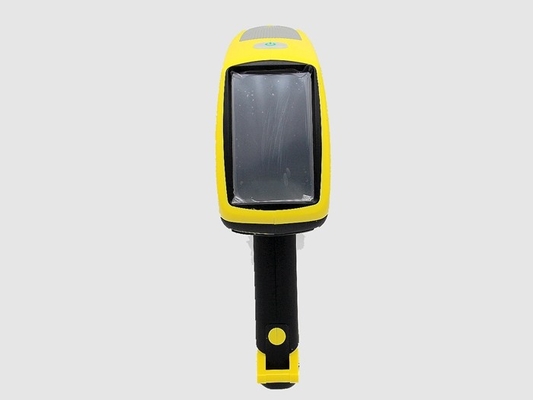

Color, high resolution 3.5 "TFT industrial touch screen, large icon graphical interface, clearly visible under any light conditions |
| Shape design |
Integrated fuselage design, strong, waterproof, dustproof and antifreeze, effective anti-vibration, suitable for field, wet or low temperature environment |
| Safe operation |
One-touch "trigger", the software automatically locks the trigger or automatically stops the test protection function; The X-ray is automatically turned off within 2 seconds after determining that there is no sample in front of the test windo |
| Analytical element |
Can analyze all elements from Mg(magnesium) to U(uranium), the standard element:Cr Chromium, Mn Manganese, Fe Iron, Ni nickel, Cu Copper, Zn Zinc, Hg Mercury, Pb Lead, Se Selenium, Zr Zirconium, Co Cobalt, V Vanadium, Mo Molybdenum, Ag Silver, Cd Cadmium, Sn Tin, Sb antimony, Ti titanium, Hf and hafnium, Ta tantalum, W Tungsten, Re rhenium, Pd Pd, Au gold, Pt Platinum, Rh Rhodium, Ru Ru, Nb Nb, Bi Bismuth, Brbromine Ir Iridium Ge GE GE In indium Te Te Tellurium Mg magnesium Al Al Si Si Si P phosphorus S sulfur and other elements; |
| Test environmental conditions |
Temperature -35 ~ +50℃, humidity < 80%RH |
| Calibration |
The instrument has been calibrated before leaving the factory; However, the instrument still has the function of establishing a targeted correction curve, which is suitable for accurate testing of specific samples
|
| Result Report |
The instrument is equipped with a standard USB interface and Bluetooth wireless transmission, which can directly transmit data to a computer or network storage device, and can directly download measurement data and X-ray spectra in customized EXCEL format. You can set user rights, generate custom reports, and print analysis reports
|
| Radiation protection function |
The radiation dose rate is < 2.5µSv/h in the space range of 10 ~ 100㎝ between the handle and the housing of the instrument.
|
| Element content analysis range |
1 PPm to 99.99% |
| Weight |
Basic weight :1.4kg, after the battery :1.5kg |
| Size (H x W x L) |
250mm x89mm x 246mm |
| Working conditions |
Operating temperature: -35 ~ +50℃
Relative humidity: ≤80%
|
Analysis accuracy and stability:
1) The detection limit of metal content is 20 ~ 30ppm, and the reading tolerance of these metal test and analysis is stable. The instrument has reached the following standards:
A. The detection content of more than 5% of the element stable test read difference is less than 0.1 ~ 0.2%
B. The detection content in 0.5 ~ 5% of the element stable test reading difference of 0.05% ~ 0.1%
C. Detection content in 0.1 ~ 0.5% of the element stable test reading difference of 0.01 ~ 0.03%
D. Test the reading change rate of elements with less than 0.1%
2) Can detect and analyze the sample status: solid, powder.
Product configuration:
(1) One main machine of X-ray fluorescence spectrum analyzer;
(2) A set of special test software for alloy analysis;
(3) Lithium battery (two pieces);
(4) a set of lithium battery chargers;
(5) 316 standard cap piece;
(6) A copy of the user manual;
(7) Instrument factory inspection certificate;
(8) Two pieces of window protective film;
(9) One waterproof main engine protection box;
