Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery

Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery
Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery

Large Image :  Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE ISO
Model Number: DG3101S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union

Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery

Description
Peak Wavelength: 365-370nm Ultraviolet Intensity: 10000μW/ Cm Distance Is 38cm
Power: 2pcs Of 18650 Lithium Battery Dimension: 40 ×38mm
MOQ: 1PC
Highlight:

Fluorescent Magnetic Particle UV Headlamp

,

portable UV NDT LED Headlamp

,

365-370nm Fluorescent Magnetic Particle Headlamp

DG-3101S Industry ndt Inspection UV Helmet-type Black Lamp

Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery 0Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery 1Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery 2Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery 3Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery 4Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery 5Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery 6Fluorescent Magnetic Particle UV Headlamp DG-3101S With Peak Wavelength Of 365-370nm And 2pcs Of 18650 Lithium Battery 7



Main features

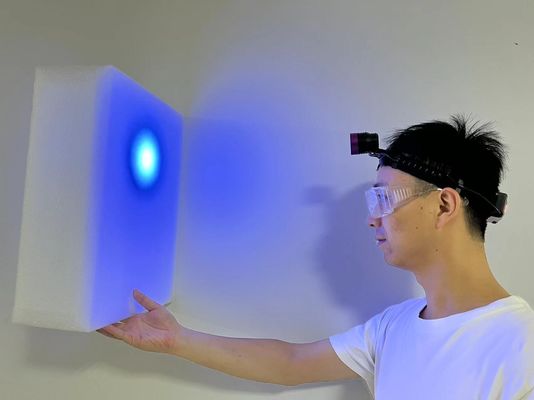

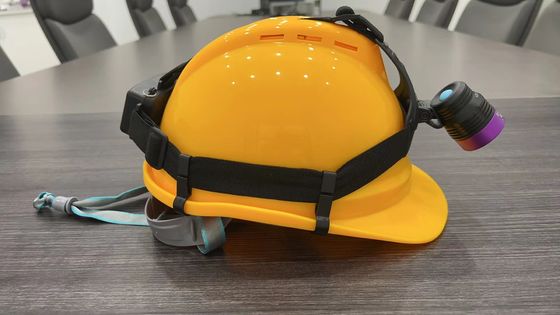

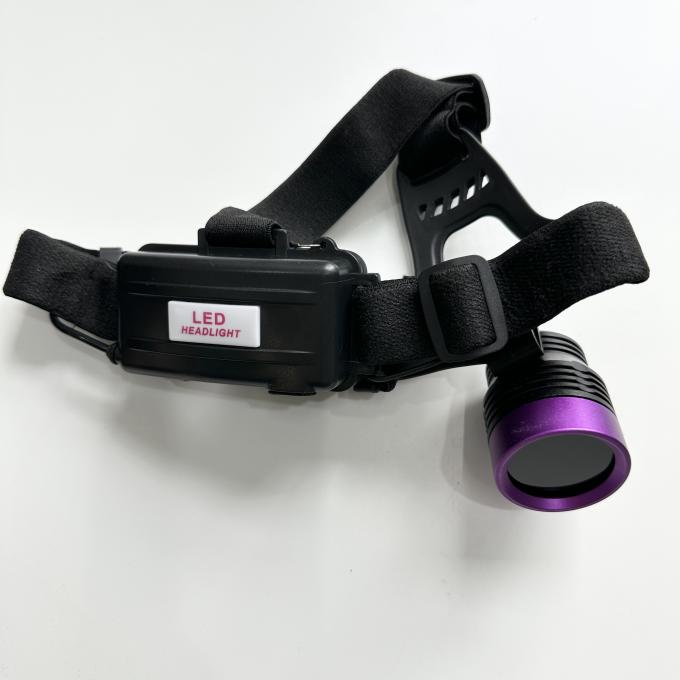

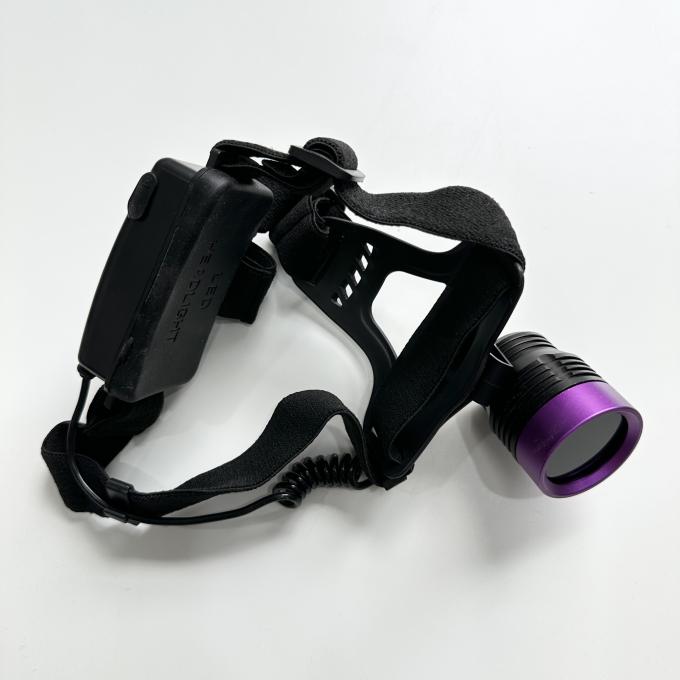

A new palm-sized, hands-free light source that can be worn on the head with a UV helmet type

black light that frees the user's hands during inspections.

Helmet-type black lamp is an ideal test tool for fluorescent magnetic particle and penetration

inspection, mine inspection, etc.

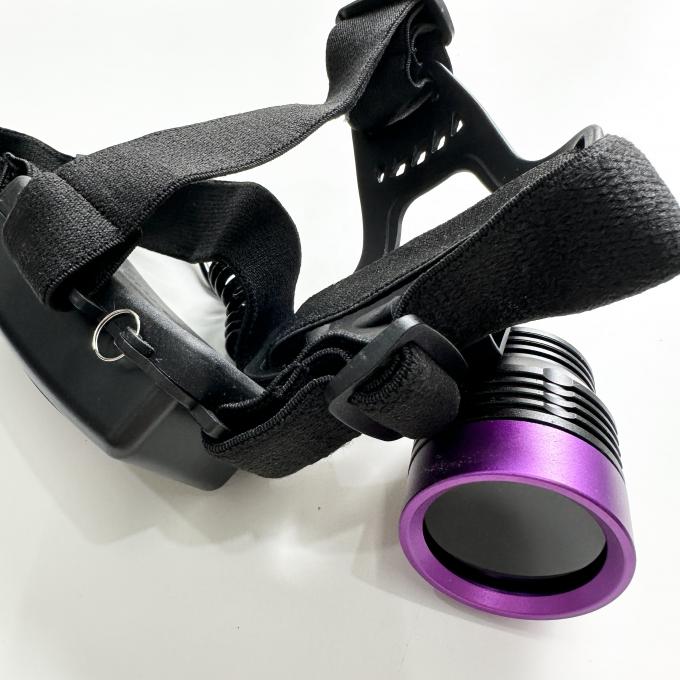

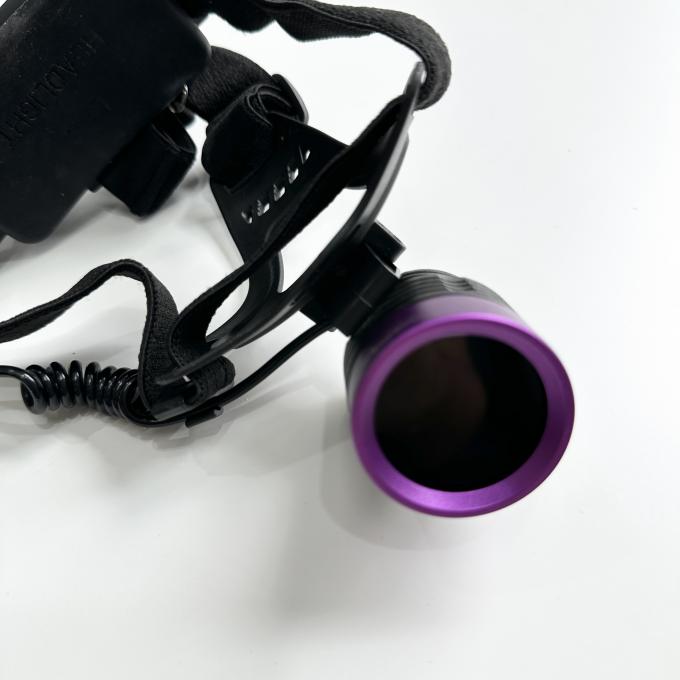

The DG-3101S UV headlamp is equipped with the powerful UV-A (365 nm) LED lamp design.

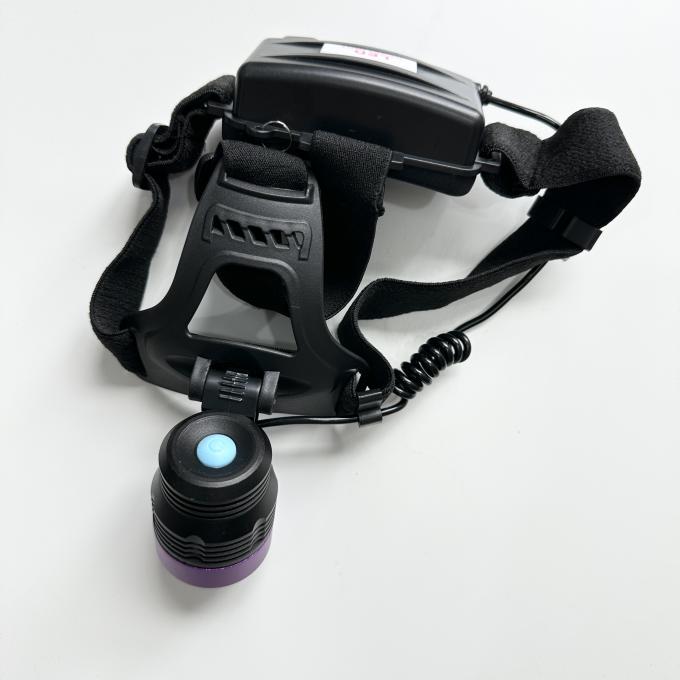

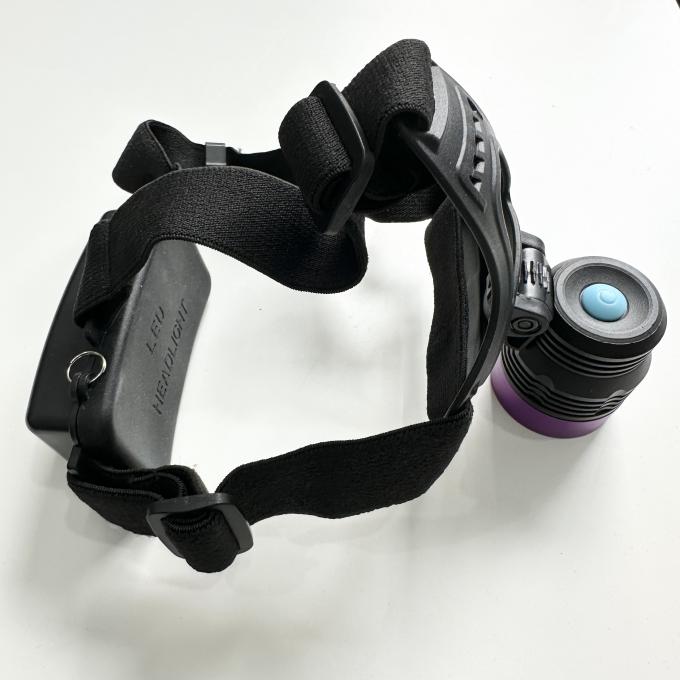

The on/off button of the DG-3101S UV helmet type black light is positioned on the back of the light

to prevent accidental switching; DG-3101S UV helmet type black light specially designed.

Constant current drive line, can keep the UV intensity constant, even when the battery capacity is

insufficient.

DG-3101S UV helmet type black light head can be 90 degrees up-and-down adjustment.



Technical parameter

1,Peak wavelength:365-370nm;

2,Ultraviolet intensity:10000μW/ cm distance is 38cm;

3,UV LED quantity:1× 5W 365nm UV LED,LED The average life span is 30,000 hours;

4,Power:2pcs of 18650 Lithium battery,4400mAh,Usage time: 3.5 hours

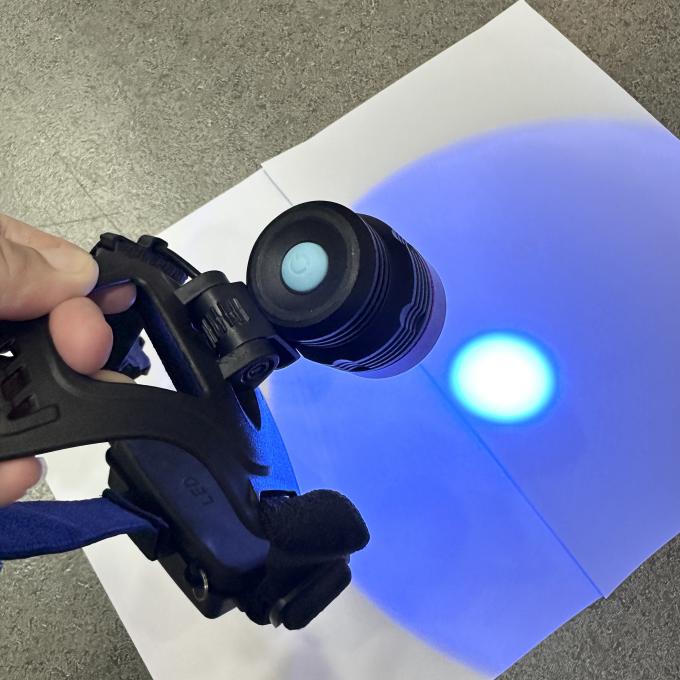

5,Irradiated area:_50mm at a distance of 38 centimeters

6,Dimension:40 ×38mm,weight:200g no accessories



Helmet type black light product application

* Refrigerant leak detection

* Penetration testing, fluorescence detection

* Engine oil leak detection

* Forensics fingerprints, blood observations

* Fluorescence observation of ore

Biopolymers, fluorescence observation

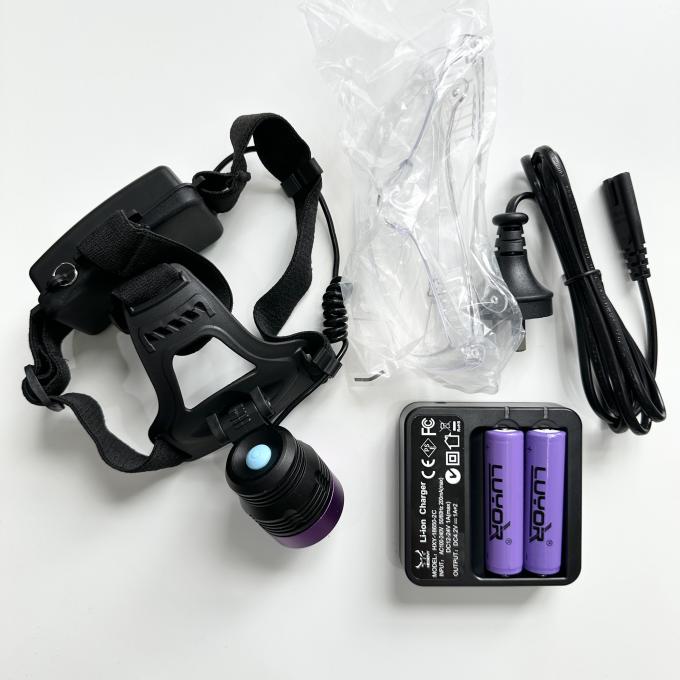

Helmet type black light product standard configuration

Host, a pair of LUV-10 glasses, charger, manual, certificate, warranty card
