H3543HWN-AG Amorphous Silicon Lightweight Wireless Security Detector

Large Image : H3543HWN-AG Amorphous Silicon Lightweight Wireless Security Detector

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	H3543HWN-AG

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	10-15 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	5sets/Month

Contact Now

H3543HWN-AG Amorphous Silicon Lightweight Wireless Security Detector

Description

Active Area:	350 X 430 Mm	Pixel Pitch:	139 μm
Resolution:	2560 X 3072	Energy Range:	40-370 KV
Adapter In:	AC 100-240V,50-60Hz
Highlight:	Amorphous Silicon Wireless Security Detector , Lightweight Wireless Security Detector , Lightweight Amorphous Silicon Detector

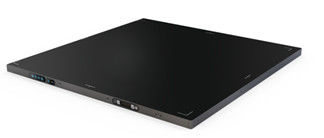

H3543HWN-AG amorphous silicon Lightweight Wireless Security Detector

H3543HWN-AG is a lightweight wireless detector based on amorphous silicon(a-Si), which is suitable for various fields such as Security and Non-destructive testing.

Electricals and interface
A/D Conversion 16 bits

Data Interface Gigabit Ethernet/802.11ac (only 5G)

Acquire Time wired: 1s; wireless: 3s

Exposure Control Software

Max Exposure time 180s
Memory 4 GB DDR4, 8 GB SD card

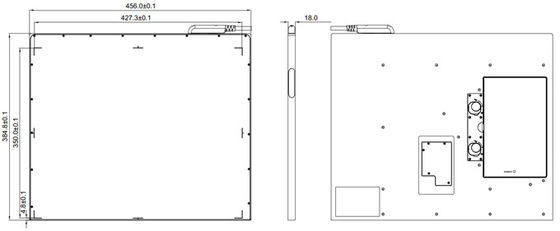

Mechanical
Dimension 384 × 456 × 18 mm
Weight 3.4kg (without battery)

Material Aluminum and magnesium alloys

Front Panel Carbon fiber

Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP51 (Customized to IP67)

Sensor
Receptor Type a-Si

Scintillator Gos / CsI:TI

Active Area 350 x 430 mm

Resolution 2560 x 3072

Pixel Pitch 139 μm

Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <20 W

Standby Time 6.5 h

Recharge Time 4.5 h

Image Quality
Limiting Resolution 3.5 LP/mm

Energy Range 40-370 KV

Dynamic Range ≥84 dB

Sensitivity ≥0.54 LSB/nGy

Ghos <1% 1st frame

DQE 42% @(1 LP/mm)

28% @(2 LP/mm)

MTF 68% @(1 LP/mm)

38% @(2 LP/mm)

20% @(3 LP/mm)

H3543HWN-AG Amorphous Silicon Lightweight Wireless Security Detector 0
