H3024WCH-HG IP54 Wireless Pipeline Inspection DR Flat Panel Detector

H3024WCH-HG IP54 Wireless Pipeline Inspection DR Flat Panel Detector

H3024WCH-HG is a lightweight wireless flat panel detector based on amorphous silicon sensors, suitable for pipeline inspection, security, power and other fields.

Power supply and battery

Adapter input AC 100-240V,50-60Hz

Adapter output DC 24V,2.5A

Power consumption <16 W

Battery working time 6 hours

Charging time 4.5h

Image performance

Spatial resolution 5.9 LP/mm

Energy range 20-160 KV

Dynamic range ≥76 DB

Electrical characteristics and interfaces

The AD conversion bit is 16 bits

Communication interface Gigabit network /802.11ac 5G

Image acquisition time line: 1s; Wireless: 3s

Wireless transmission distance 50m(optional 500m)

Exposure control mode Soft acquisition /AED

Maximum exposure time 180s

Built-in storage 4 GB DDR4, 8 GB SD card

Structural characteristic

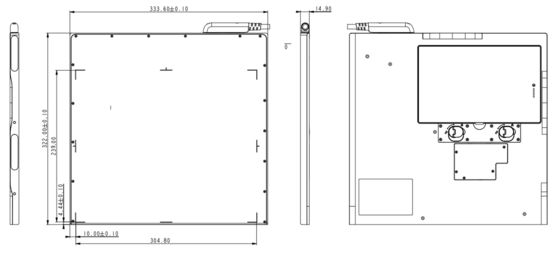

External dimensions 333.6×322×14.9 mm

Weight 2.3kg

Structure material aluminum magnesium alloy

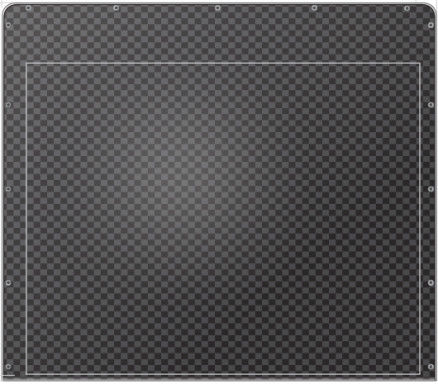

The front of the detector is made of carbon fiber plate

The distance between the narrowest side is less than 5mm

environment

Temperature 10-35°C (operating); -10~50°C (storage)

Humidity 30-70%RH (non-condensing)

Waterproof and dustproof IP54 (optional customized IP67)
