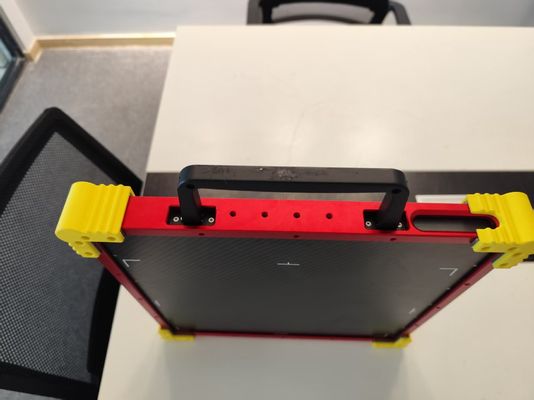

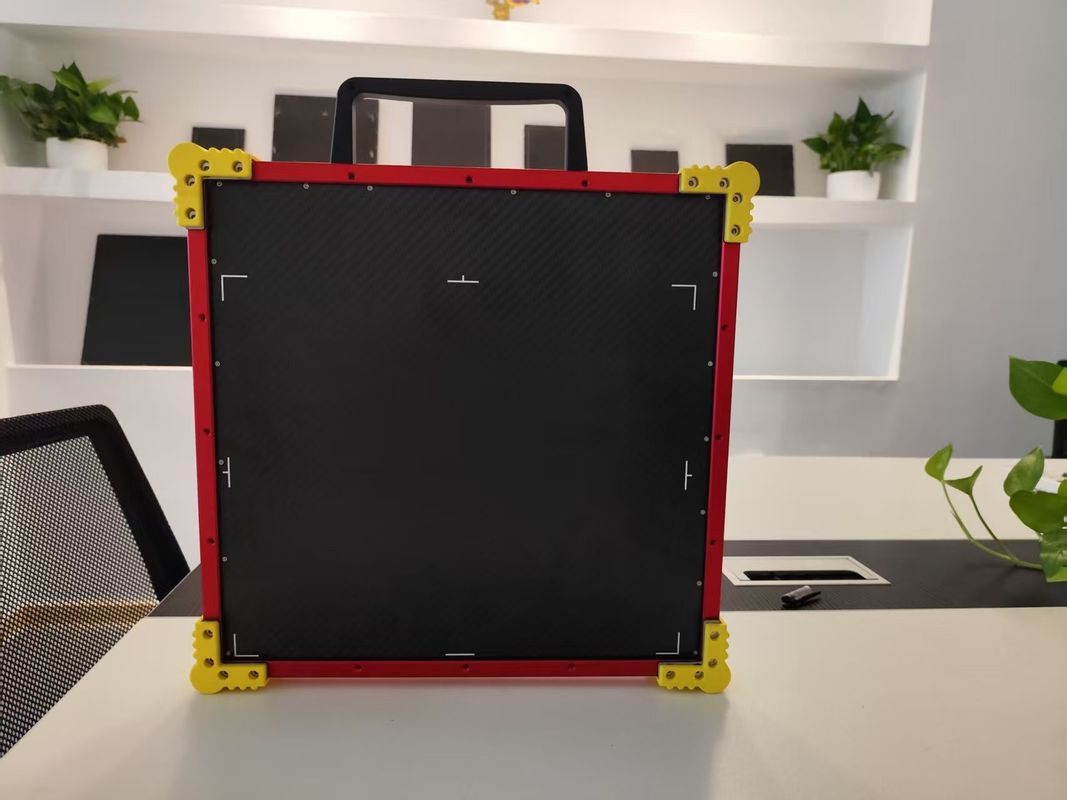

H4343HDA-AG 139μm Light Weight DR Panel Detector

Large Image : H4343HDA-AG 139μm Light Weight DR Panel Detector

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	H4343HDA-AG

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	10-15 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	5sets/Month

Contact Now

H4343HDA-AG 139μm Light Weight DR Panel Detector

Description

Active Area:	430 X 430 Mm	Pixel Pitch:	139 μm
Resolution:	3072x 3072	Energy Range:	40-160 KV
Adapter In:	AC 100-240V,50-60Hz
Highlight:	DR Panel Detector , Digital Radiography DR Detectors , Light Weight DR Panel Detector

H3543HWN-AG amorphous silicon Lightweight Wireless Security Detector

H4343HDA-AG is a light weight detector based on amorphous silicon(a-Si), which is suitable for various fields such as dynamic DR and Non-destructive testing.

Electricals and interface
A/D Conversion 16 bits

Data Interface Gigabit Ethernet

Frame rate 1x1 4fps/2x2 15fps/3x3 25fps

Exposure Control Free Run/SYNC Acquire

Mechanical
Dimension 460 × 460 × 14.8 mm
Weight 3.8kg

Material Aluminum and magnesium alloys

Front Panel Carbon fiber

Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP51

Sensor
Receptor Type a-Si

Scintillator Gos / CsI:TI

Active Area 430 x 430 mm

Resolution 3072x 3072

Pixel Pitch 139 μm

Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <20 W

Image Quality
Limiting Resolution 3.5 LP/mm

Energy Range 40-160 KV

Dynamic Range ≥84 dB

Sensitivity ≥0.54 LSB/nGy

Ghos <1% 1st frame

DQE 42% @(1 LP/mm)

28% @(2 LP/mm)

MTF 68% @(1 LP/mm)

38% @(2 LP/mm)

20% @(3 LP/mm)

H4343HDA-AG 139μm Light Weight DR Panel Detector 0
