HS-OO High Resolution Shore Durometer ASTM D2240 GB/T 531 -1999 ISO 7619

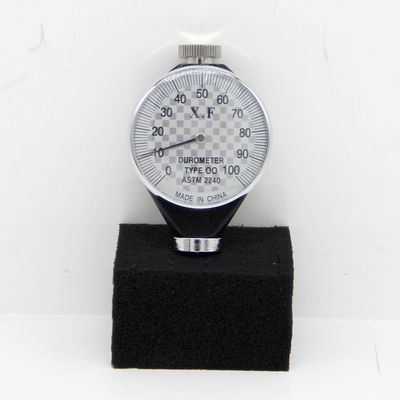

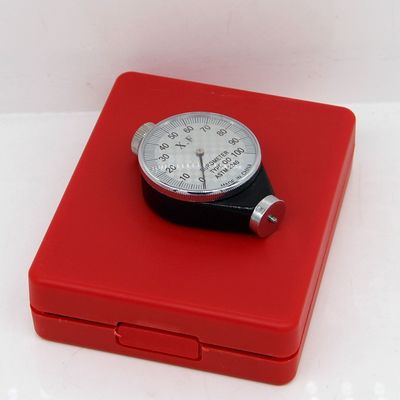

Large Image : HS-OO High Resolution Shore Durometer ASTM D2240 GB/T 531 -1999 ISO 7619

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE.ISO
Model Number:	HS-OO

Contact Now

HS-OO High Resolution Shore Durometer ASTM D2240 GB/T 531 -1999 ISO 7619

Description

Test Range: 0-100:

Test Range: 0-100

Available Test Range: 10-90:

Available Test Range: 10-90

Stroke: 2.5 Mm:

Stroke: 2.5 Mm

Margin Of Error: ±0.5:

Margin Of Error: ±0.5

Highlight:

ASTM D2240 Shore Durometer

ISO 7619 Shore Durometer

High Resolution Shore Durometer

Shore Durometer HS-OO

HS-OO durometer is an essential characteristic of Rubber foam, sponge, plastic foam, silicone, gelatinous materials, textiles, low-density coils. products.

It is feature portability, ease of operation, with facility, high resolution and it is available in GB/T 531 -1999 and ISO 7619, ASTM D2240.

Parameter Type	Specific Value	Application Scenario Description
Test Range	Total: 0-100 Available: 10-90	Recommended to use within 10-90; exceeding this range may affect test accuracy or equipment performance.
Stroke	2.5 mm	The moving distance of device components or tools, controlled with a precision of 2.5 mm.
Margin of Error	±0.5	Allowed deviation for measurement or operation results. For example, within the available test range, the measured value may differ from the true value by ±0.5.
Tip Dimension	0.79 mm	The diameter of the tool or probe tip, suitable for fine operations or measurement in small areas.
Net Weight	0.2 kg	The weight of the device or item itself (200 g), excluding packaging or additional accessories.

Specifications:

Test range: 0-100

Available test range: 10-90

Stroke: 2.5 mm

Margin of error: ±0.5

Tip dimension: 0.79mm

Net weight: 0.2kg

HS-OO High Resolution Shore Durometer ASTM D2240 GB/T 531 -1999 ISO 7619 0
