DR Flat Panel H1719HDA-GZ Sensor For Dental Imaging And Industrial Inspection

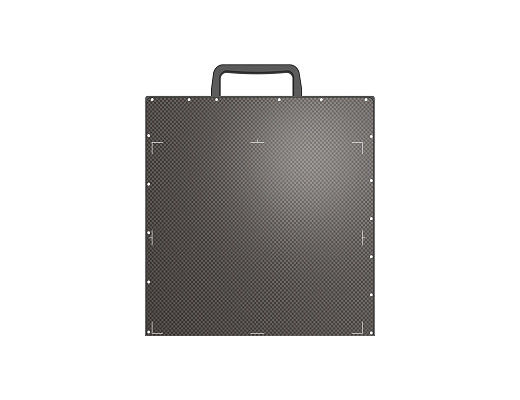

Large Image : DR Flat Panel H1719HDA-GZ Sensor For Dental Imaging And Industrial Inspection

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO
Model Number:	H1719HDA-GZ

Contact Now

DR Flat Panel H1719HDA-GZ Sensor For Dental Imaging And Industrial Inspection

Description

Dimension:

203×234×22.8 Mm

Weight:

1.8g

Material:

Aluminum And Magnesium Alloys

Front Panel:

Carbon Fiber

Highlight:

Industrial Inspection DR Flat Panel

Sensor For Dental Imaging

Dental Imaging DR Flat Panel

H1719HDA-GZ It is an amorphous silicon based sensor suitable for dental imaging and industrial inspection

Sensor
Receptor Type IGZO

Scintillator CsI:TI

Active Area 165.8 x 183.8 mm

Resolution 1386 x 1536

Pixel Pitch 120 μm

Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <20 W

Limiting Resolution 4.2 LP/mm

Energy Range 20-160 KV

Dynamic Range ≥76 dB

Category	Parameter	Details
Electricals and Interface	A/D Conversion	16 bits
	Data Interface	Gigabit Ethernet
	Frame Rate	20 fps
	Exposure Control	Software/Outer
Mechanical	Dimension	203×234×22.8 mm
	Weight	1.8 g
	Material	Aluminum and magnesium alloys
	Front Panel	Carbon fiber
Environmental	Temperature	10–35°C (operating); –10–50°C (storage)
	Humidity	30–70% RH (non-condensing)
	Ingress Protection	IP51

Electricals and interface
A/D Conversion 16 bits

Data Interface Gigabit Ethernet

Frame rate 20fps

Exposure Control Software/Outer

Mechanical
Dimension 203×234×22.8 mm
Weight 1.8g

Material Aluminum and magnesium alloys

Front Panel Carbon fiber

Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP51

DR Flat Panel H1719HDA-GZ Sensor For Dental Imaging And Industrial Inspection 0
