SRT-7150 Surface Roughness Contour Graph Profilometer Testing Machine

SRT-7150 Surface Roughness Contour Graph Profilometer Testing Machine
SRT-7150 Surface Roughness Contour Graph Profilometer Testing Machine SRT-7150 Surface Roughness Contour Graph Profilometer Testing Machine

Large Image :  SRT-7150 Surface Roughness Contour Graph Profilometer Testing Machine

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: SRT-7150

SRT-7150 Surface Roughness Contour Graph Profilometer Testing Machine

Description
Product Model: SRT-7150 Movement Accuracy: ≤0.5μm /80mm
Resolution: 0.1μm Place Of Production: China
Highlight:

Surface Roughness Contour

,

Graph Profilometer Testing Machine

,

Surface Roughness Profiler Integrated Machine

Surface Roughness Contour Graph Profilometer Testing Machine

1.Product name:Surface Roughness Profiler Integrated Machine

2.Product model:SRT-7150



3.Technical parameters:



Project Model SRT-7150

X axis

Sliding linear guide rail

Movement accuracy ≤0.5μm /80mm

X -axis positioning

Grating ruler

Resolution

0.1μm



Place of production China
Data sensor Resolution 0.02μm
Place of production Imported abroad
System resolution 65536:1
Linear accuracy ≤±(1.5+|0.2H|)μm
circular arc ≤±(2+R/8)μm
angle ≤±2′
Straightness ≤0.8μm/100mm
Roughness measurement
Measurement range X-axis Ra:0.01 - 10μm
Z1-axis ±500μm
Evaluation parameters

Roughness evaluation parameters:Ra,Rz,Rq,Rt,Rp,Rv,Rc,Rdc,Rsk,Rku,Rsm,Rmr ,Rdq及 Rmr(c);

Ripple degree evaluation parameters:Wa,Wz,Wq,Wt,Wp,Wv,Wc,Wdc,Wsk,Wku,Wsm,Wmr 及 Wmr(c);

Original contour evaluation parameters:Pa,Pz,Pq,Pt,Pp,Pv,Pc,Pdc,Pdq,Psk,Pku,Psm,Pmr 及 Pmr(c)

Sampling length-L 0.08,0.25,0.8,2.5,8(mm);
Evaluation length According to GB / T10610-2009 standard implementation
Indication error ±5%
Repeatability of indication 2%
Profile measurement
Measurement range X-axis ≤150mm
Z-axis ≤300mm(Can be adjusted according to user needs)
Z1 ≤40mm
Moving speed of table 0.05-0.8mm/s (Four gear, automatic speed regulation)
Working environment

Working tempreture:10℃-30℃(normal temperature)

Humidity 20-80%RH No obvious vibration source

Required power supply 220V 50Hz 0.5Kw Individual ground wire
Instrument size (length × wide × High) 980×740×1500(mm)
Instrument weight about 120Kg




Note: The above technical parameters can be adjusted according to the actual needs of users. You are welcome to consult our technicians on various issues.

4.Key advantages



  • Dedicated to precision measurement for decades!
  • Through ISO9001 quality management system certification, knowledge management system certification;
  • National intellectual property advantage enterprise certification;
  • Through the export of EU CE certification;

l Product diversification: Support customer customization;





5. Instrument description and measurement range:

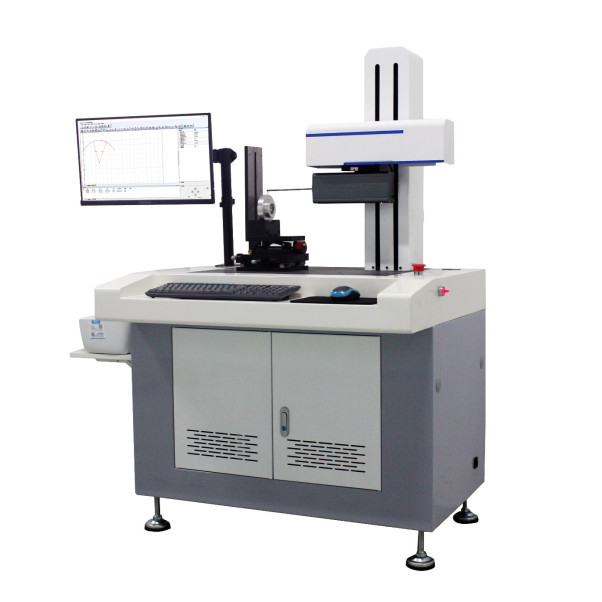

SRT-7150 is an integrated measuring machine equipment for surface roughness and contour measurement.

The surface roughness and profile of various workpieces are measured and analyzed by using high precision grating measurement system, high precision grinding guide rail, high performance non-contact linear motor, high performance roughness measurement module, high performance computer control system technology and perfect multi-functional software.

The device can measure various parameters of various mechanical parts, such as plain line and cross section profile parameters, surface waviness parameters, roughness parameters and so on.

It can measure the straightness, inclination, angle processing, circle processing ( distance from straight line to tangent line, distance from circle center to circle center, radius of arc, distance from intersection point to circle center, distance from circle center to straight line ), point line processing ( distance from intersection point to straight line, distance from intersection point to circle center, intersection point of two straight lines, distance from intersection point to intersection point ), logarithmic curve, groove width, groove depth, groove edge distance, groove center distance, inclination, horizontal distance, vertical distance and other shape parameters of various parts.

It is suitable for bearing industry, mechanical processing, automobile, motorcycle, precision hardware, precision tools, molds, tools, optical components and other industries.
