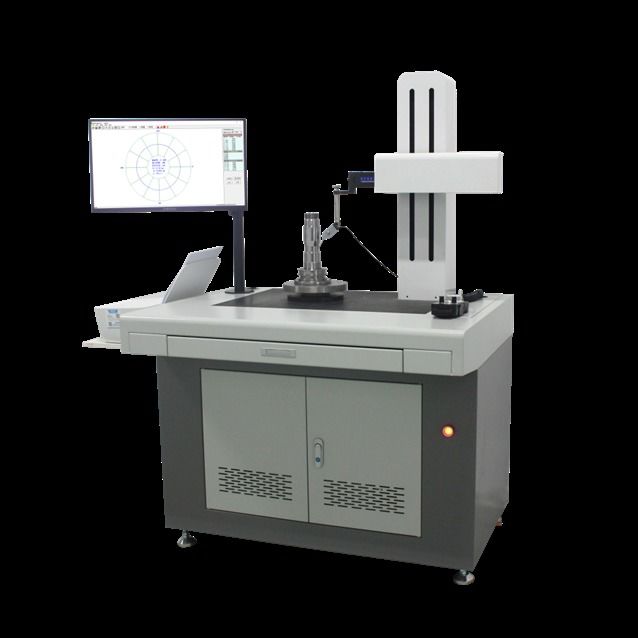

Roundness Measuring Instrument

1. Product name:Roundness Measuring Instrument

2. Product model:SRT-7190

3.Technical parameters:

Vertical movement

Note : The above technical parameters can be adjusted according to the actual needs of users. You are welcome to consult our technical personnel on various issues.

4.Key advantages

• Focus on precision measurement for decades
• Passed ISO9001 quality management system certification, knowledge management system certification
• Product diversification: can be customized according to customer needs.

5. Instrument description and measuring range

The instrument can measure the parameters of the plain line and section profile of various mechanical parts. In the bearing industry can measure all kinds of parts of straightness, inclination, Angle processing, circle processing (straight line to tangent distance, distance from the center of the circle to the center of the circle, the center of the circle to the center of the circle distance), point and line processing (intersection to linear distance, intersection to the center of the circle distance, two straight line intersection, intersection and intersection distance), logarithmic curve, groove width, groove depth, groove edge Distance, core distance inclination, horizontal distance.

6.Computer configuration

1.Host : Tsinghua Tongfang A3500

2.Operating system : Windows10 system operating system dedicated measurement software, powerful, easy to operate.

3.CPU : G5905

4.Memory : 8G

5.hard disk : more than 500G ;

6. Chassis : Tsinghua Tongfang standard chassis ;

7.Power supply : standard

8.Qinghua Tongfang standard keyboard optical mouse ;

9.Display : Tsinghua Tongfang standard 21.5 " LCD display

10. Printer : HP 1212 color printer ;

11. Roundness waviness special control box
