HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen

HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen
HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen

Large Image :  HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HEF-17
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen

Description
Max Detection Of Wall Thickness: 2～100mm Diameter Of The Pipe: ≥21mm
Thickness Of Metal Protective Layer: ≤1mm Repeated Detection Accuracy: 2%
Measuring Speed: 15~0.5 Time/s (reducing With The Increasing Measured Wall Thickness) Length Of Probe Cable: 5m, 30m (optional)
Corrosion Defect Detection Sensitivity: 5% (volume Ratio)
Highlight:

Pulse Eddy Current Tester

,

Metal Pipe Thickness Gauge

,

LCD Wall Thickness Meter

HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen
Key Specifications
Attribute Value
Max detection of wall thickness 2～100mm
Diameter of the pipe ≥21mm
Thickness of metal protective layer ≤1mm
Repeated detection accuracy 2%
Measuring speed 15~0.5 time/s (reducing with increasing wall thickness)
Length of probe cable 5m, 30m (optional)
Corrosion defect detection sensitivity 5% (volume ratio)
Product Features
  • Integrated LCD screen and shortcut keys on probe for real-time status and data display
  • Electronic focusing technology for higher spatial resolution and better defect recognition
  • Effective for detecting wall thickness corrosion through various cover layers (insulation, cooling, protective layers)
  • Operational during equipment runtime (high/low temperature, with materials present)
  • Compatible with ferromagnetic (carbon steel, low alloy steel) and non-ferromagnetic (stainless steel, aluminum alloy) materials
  • Works through non-conductive, non-magnetic cladding materials and metal mesh protective layers
  • AC/DC hybrid power with built-in lithium battery (8+ hours continuous operation)
  • IP64 sealed design with silicone sheath for harsh environments

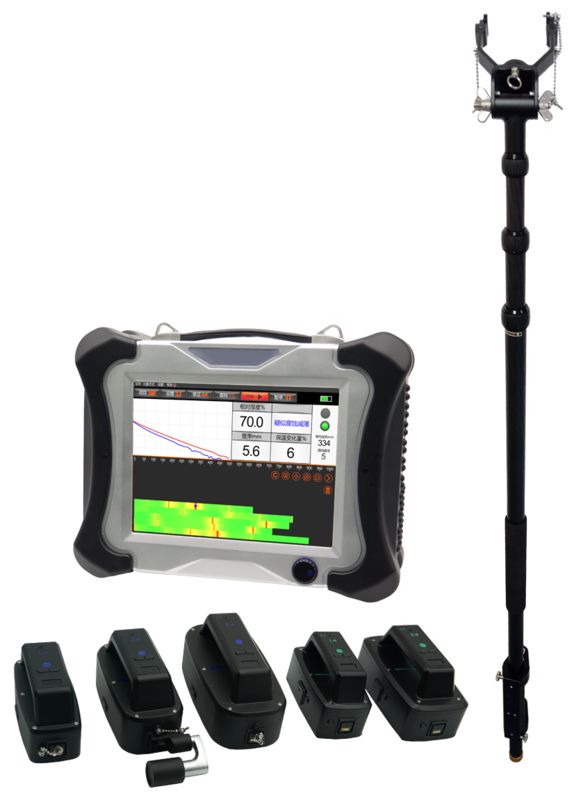

Standard & Optional Configuration
Item Name Unit Quantity Notes
1 Main unit (including data cable, charger) Set 1 Standard
2 Carbon steel probe (C.S: smaller, medium, larger, including 5m cable) Group 1 Standard
3 Stainless steel probe (S.S: smaller, medium) Group 1 Optional
4 Wear-resistant temperature-isolation probe boots (smaller, medium, larger) Group 1 Optional
5 Carbon steel bare tube high resolution probe (including handle) Piece 1 Optional
6 Stainless steel bare tube high resolution probe Piece 1 Optional
7 Carbon steel six-channel array probe (C.S) Piece 1 Optional
8 Stainless steel six-channel array probe (S.S) Piece 1 Optional
9 Probe length cable 30m Piece 1 Optional
10 Probe extension rod Piece 1 Optional, 3m or 5m
Technical Parameters
  • Max cladding thickness: Stainless/aluminum ≤300mm, Iron ≤150mm
  • Wall thickness detection: 2～100mm
  • Pipe diameter: ≥21mm
  • Metal protective layer: ≤1mm
  • Detection accuracy: 2%
  • Corrosion sensitivity: 5% (volume ratio)
  • Measuring speed: 15~0.5 time/s
  • Battery life: >8 hours continuous
  • Dimensions (Host): 346×278×136mm, 7kg
  • Probe sizes: P1: 106×61×52mm (0.5kg), P2: 148×73×92mm (1kg), P3: 186×95×97mm (1.5kg)
  • Temperature range: Tested medium: -200～800℃, Working: -10℃～50℃
  • Humidity: ≤85%R.H
  • Power: AC100～240V, 50Hz±1%, ≤100VA

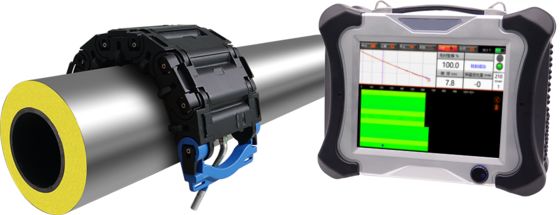

Extended Function: Multi-Channel C-Scan
  • Probe ring with multiple circumferential probes for continuous scanning
  • C-scan imaging with automatic wall thickness analysis and warning areas
  • Automatic display of remaining wall thickness in suspected defect areas
C-Scan Parameters
  • Max cladding thickness: Stainless/aluminum ≤100mm, Iron ≤80mm
  • Wall thickness detection: 3～35mm
  • Pipe diameter: ≥140mm
  • Array probe dimensions: 687.5×230×65mm, 8.15kg
HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen 0 HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen 1 HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen 2 HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen 3 HEF-17 Pulse Eddy Current Metal Pipe Wall Thickness Tester with LCD Screen 4
