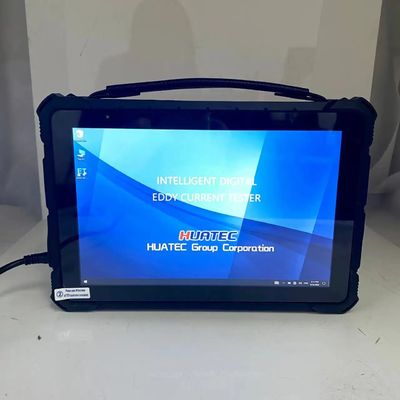

HEF-CC100 Portable Eddy Current Detection System with Touch Screen

HEF-CC100 Portable Eddy Current Detection System with Touch Screen
HEF-CC100 Portable Eddy Current Detection System with Touch Screen HEF-CC100 Portable Eddy Current Detection System with Touch Screen

Large Image :  HEF-CC100 Portable Eddy Current Detection System with Touch Screen

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HEF-CC100
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HEF-CC100 Portable Eddy Current Detection System with Touch Screen

Description
Detection Channels: 1-8 (scalable As Needed) Frequency Range: 5 Hz ~ 12 MHz, Continuously Adjustable, 2-4 Independent Selectable Frequency, Multiple Mixing Unit
Gain Range: 0.0dB ~ 99.0dB Continuously Adjustable, Step: 0.1dB Gain Ratio: （X/Y）0.1～10.0
SNR: ≥ 10dB (up To 30dB) Filtering Factor: 0-30000
Hardware Amplification Factor: 1dB ～ 39.9db, Continuously Adjustable, Step: 1dB
Highlight:

Portable Eddy Current Detector

,

Touch Screen NDT Equipment

,

HEF-CC100 Detection System

HEF-CC100 Portable Eddy Current Detection System with Touch Screen
Key Features
  • Multi-channel detector with digital, intelligent, highly integrated features (1-8 channels optional)
  • Advanced computer technology with DSP digital processing and FPGA technology
  • Powerful data output capabilities and excellent scalability
  • Comprehensive software features including parameter saving, data storage, and report analysis
  • Supports flexible customization of various high-performance detection probes
  • Intuitive operation with 10.1 inch capacitive full touch color screen
  • Multi-language support with quick language switching
Technical Specifications
Attribute Value
Detection channels 1-8 (scalable as needed)
Frequency range 5 Hz ~ 12 MHz, continuously adjustable, 2-4 independent selectable frequency
Gain range 0.0dB ~ 99.0dB continuously adjustable, step: 0.1dB
Gain ratio (X/Y) 0.1～10.0
SNR ≥ 10dB (up to 30dB)
Filtering factor 0-30000
Hardware amplification factor 1dB ～ 39.9db, continuously adjustable, step: 1dB
Additional Specifications
  • Phase rotation: 0 ~ 360° continuously adjustable, step: 1°
  • Probe drive level: 1～16 adjustable
  • Maximum measurement range: 10 ~ 10000, step 1
  • Multiple excitation modes: DP/di; differential, absolute and various customized probes
  • Stability: 16 hours ≤ 2dB
  • Working temperature: 0℃～ +45℃, storage temperature: -20℃～ +50℃
  • Dimensions: 280 × 190 × 70mm (L × W × H), Weight: < 2.5kg
  • Battery life: Continuous operation for 6h (depending on environment)
Application Areas

Nuclear power, electric power, petroleum, chemical industry, metallurgy and other in-service testing, teaching in colleges and universities, various laboratories, special equipment and other industries.

Standard Configuration
  • Host: A multifunctional intelligent digital eddy current tester
  • Probe and accessories: Customizable according to user's material, specification and shape
  • Standard test block (optional or customized)
  • Operation manual: One copy
  • Warranty card: One copy
  • Product list: One copy

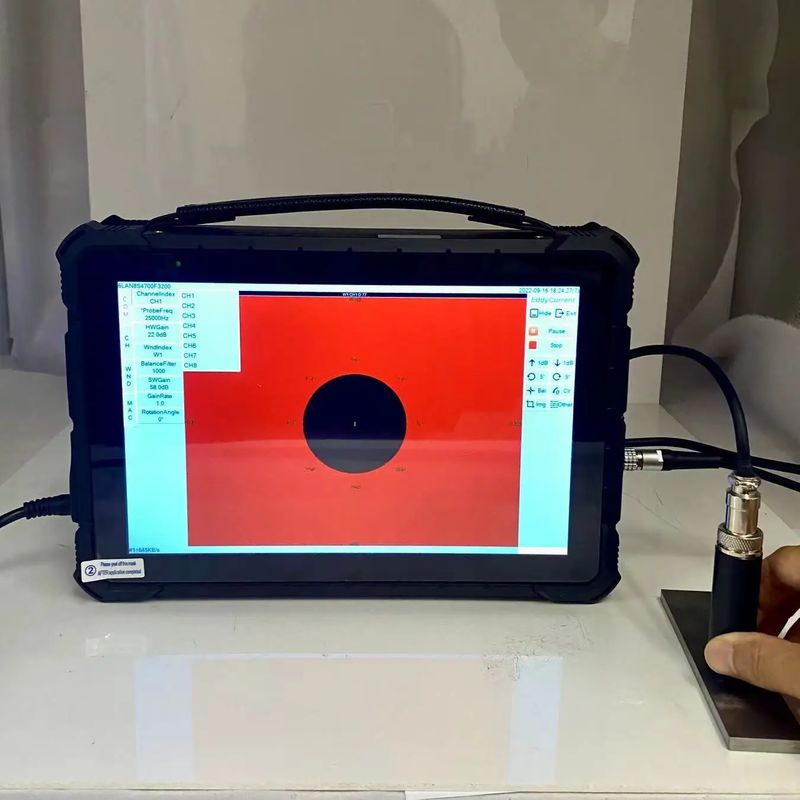

HEF-CC100 Portable Eddy Current Detection System with Touch Screen 0
HEF-CC100 Portable Eddy Current Detection System with Touch Screen 1
HEF-CC100 Portable Eddy Current Detection System with Touch Screen 2
