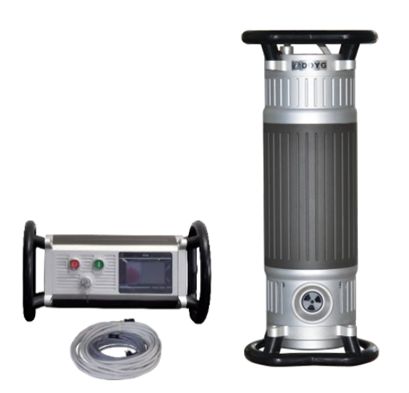

XXG-H160GP High Frequency Low Ma X Ray Flaw Detector 160kV/3mA

XXG-H160GP High Frequency Low Ma X Ray Flaw Detector 160kV/3mA
XXG-H160GP High Frequency Low Ma X Ray Flaw Detector 160kV/3mA XXG-H160GP High Frequency Low Ma X Ray Flaw Detector 160kV/3mA

Large Image :  XXG-H160GP High Frequency Low Ma X Ray Flaw Detector 160kV/3mA

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: XXG-H160GP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

XXG-H160GP High Frequency Low Ma X Ray Flaw Detector 160kV/3mA

Description
Focus Size: 3.0mm Maximum Penetration (Fe): 22mm(A3) F=600mm
KV Adjustment Range: 80~160 Kv ±1kv MA Adjustment Range: 0.5~3 MA ±0.1mA
Max Power: 480W Storage Temperature: -25°C~ +70°C
Duty Circle: 100% At An Ambient Temperature Of 20 ℃
Highlight:

High Frequency X Ray Flaw Detector

,

Low Ma X Ray Detector

,

160kV X Ray Testing Equipment

XXG-H160GP High Frequency Low Ma X Ray Flaw Detector 160kV/3mA
Key Specifications
Attribute Value
Focus Size 3.0mm
Maximum penetration (Fe) 22mm(A3) F=600mm
kV adjustment range 80~160 kv ±1kv
mA adjustment range 0.5~3 mA ±0.1mA
Max power 480W
Storage temperature -25°C~ +70°C
Duty Circle 100% at an ambient temperature of 20 ℃
Product Overview

The XXG-H160GP High Frequency Low Ma X Ray Constant Potential Flaw Detector offers superior performance for industrial inspection applications.

Key Features
  • Continuous exposure possible at 35℃ and 160kv/3mA conditions
  • Wide input voltage range for versatile power supply compatibility
  • Lightweight design with strong penetration and stable performance
  • Innovative cylindrical controller design
  • Intuitive operation interface for ease of use
  • High penetration ability: Maximum 22mm
  • 95% power efficiency with small cable diameter and light weight
  • 99 minutes continuous operation with no rest time required
  • Continuously adjustable tube voltage and current (0.5mm to 22mm penetration)
  • High frequency design reduces faults (no high voltage coil)
  • Direct compatibility with DR Panel image systems
Technical Specifications
Item Parameters
X-ray Generator
Weight 17kg
External dimensions (including end ring) ф246x596(DXL)

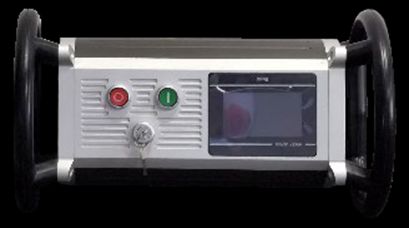

X-ray Controller
Weight 9.6kg
Dimensions Including end ring: ф264x458(mm), excluding end ring: ф188x350 (mm)
Focus Size 3.0mm
Radiation Angle 44°
Protect temperature 75℃
Power supply AC200~264 V/50~60 Hz
System Features
  • High frequency, low Ma design for continuous operation
  • Wide range hardware design with long lifespan and low failure rate
  • Strong anti-jamming capability (works with 180V~260V power grid)
  • Lightweight cables and head
  • Maximum penetration: 22mm (F600, D > 2)
Package Includes
  • 10 core signal connecting cable
  • 2 core power cable
  • Ground line
  • Appendage package set
The whole equipment is guaranteed for one year (excluding man-made causes and force majeure reasons).
