XXG-H200GP Portable High Frequency X-Ray Flaw Detector with DR Panel

XXG-H200GP Portable High Frequency X-Ray Flaw Detector with DR Panel
XXG-H200GP Portable High Frequency X-Ray Flaw Detector with DR Panel XXG-H200GP Portable High Frequency X-Ray Flaw Detector with DR Panel

Large Image :  XXG-H200GP Portable High Frequency X-Ray Flaw Detector with DR Panel

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: XXG-H200GP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

XXG-H200GP Portable High Frequency X-Ray Flaw Detector with DR Panel

Description
Focus Size: 2.5mm Maximum Penetration (Fe): 50mm(A3) F=600mm
KV Adjustment Range: 80~200 Kv ±1kv MA Adjustment Range: 0.5~3 MA ±0.1mA
Max Power: 600W Storage Temperature: -25°C~ +70°C
Duty Circle: 100% At An Ambient Temperature Of 20 ℃
Highlight:

Portable X-Ray Flaw Detector

,

High Frequency Flaw Detector

,

DR Panel X-Ray Detector

XXG-H200GP Portable High Frequency X-Ray Flaw Detector with DR Panel
Key Specifications
Focus Size 2.5mm
Maximum penetration (Fe) 50mm(A3) F=600mm
kV adjustment range 80~200 kv ±1kv
mA adjustment range 0.5~3 mA ±0.1mA
Max power 600W
Storage temperature -25°C~ +70°C
Duty Circle 100% at an ambient temperature of 20 ℃
Product Overview

XXG-H200GP Lightweight DR Panel Image System Portable High Frequency X Ray Flaw Detector

Key Features
  • Continuous exposure possible at 35℃ and 200kv/3mA conditions
  • Wide input voltage range, suitable for various power supplies
  • Lightweight design with strong penetration and stable performance
  • Unique cylindrical controller design
  • Intuitive operation interface
  • High penetration ability: Max.40mm
  • 95% power efficiency with small cable diameter and light weight
  • 99 minutes continuous operation with no rest time
  • Continuously adjustable tube voltage and current
  • Penetration thickness from 0.5mm to 40mm depending on exposure time
  • High frequency design reduces faults (no high voltage coil)
  • Compatible with DR Panel image system
Technical Specifications

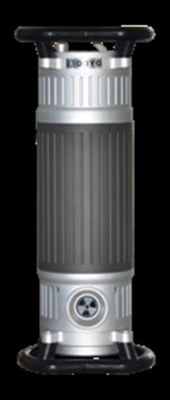

X-ray Generator
Weight 17kg
External dimensions (including end ring) ф246x596(DXL)

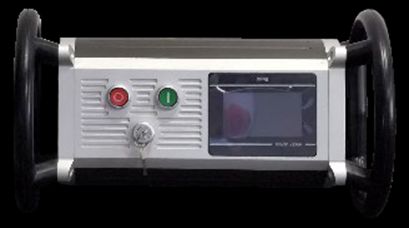

X-ray Controller
Weight 9.6kg
Dimensions (including end ring) ф264x458(mm)
Dimensions (excluding end ring) ф188x350(mm)
Focus Size 2.5mm
Radiation Angle 44°
Maximum penetration (Fe) 50mm(A3) F=600mm
kV adjustment range 80~200 kv ±1kv
mA adjustment range 0.5~3 mA ±0.1mA
Max power 600W
Protect temperature 85℃
Duty Circle 100% at an ambient temperature of 20 ℃
Storage temperature -25°C~ +70°C
Power supply AC200~264 V/50~60 Hz

The system features high frequency operation, low mA, and continuous work capability. The wide range hardware design ensures long life and very low failure rate. It has strong anti-jamming capability and can work with power grid from 180V~260V. The system includes light cables and lightweight head.

The maximum penetration force: 40mm (F600, D > 2)

Included Accessories
  • 10 core signal connecting cable
  • 2 core power cable
  • A ground line
  • A set of appendage package

The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
