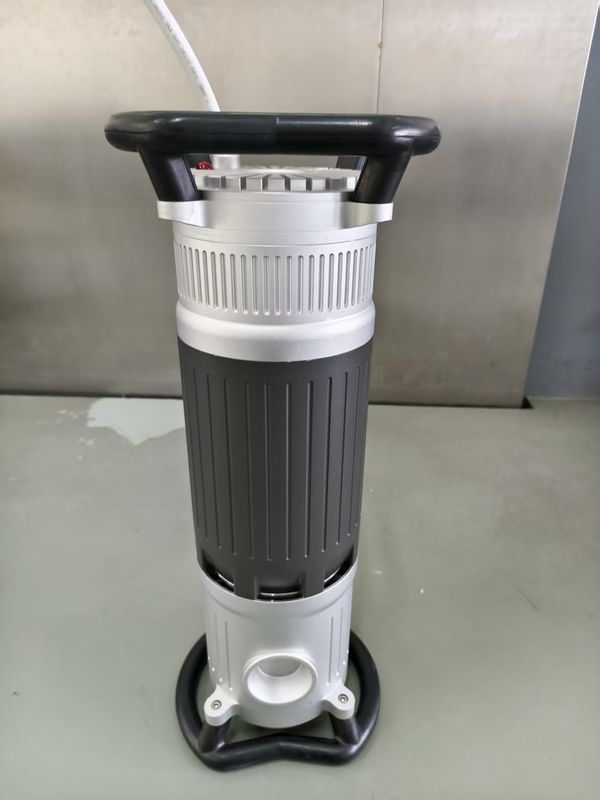

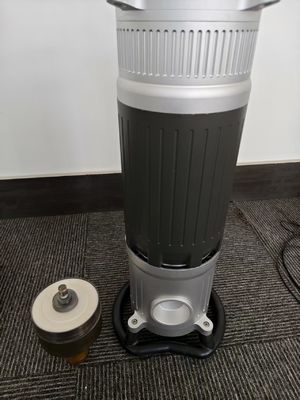

XXG-H300GP Battery-Powered X-ray Flaw Detector with 70mm Penetration

XXG-H300GP Battery-Powered X-ray Flaw Detector with 70mm Penetration
XXG-H300GP Battery-Powered X-ray Flaw Detector with 70mm Penetration XXG-H300GP Battery-Powered X-ray Flaw Detector with 70mm Penetration

Large Image :  XXG-H300GP Battery-Powered X-ray Flaw Detector with 70mm Penetration

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: XXG-H300GP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

XXG-H300GP Battery-Powered X-ray Flaw Detector with 70mm Penetration

Description
Focus Size: 3.0mm Maximum Penetration (Fe): 70mm(A3) F=600mm
KV Adjustment Range: 120~300 Kv ±1kv MA Adjustment Range: 0.5~3 MA ±0.1mA
Max Power: 900W Storage Temperature: AC190~265 V/50~60 Hz
Duty Circle: 100% At An Ambient Temperature Of 20 ℃
Highlight:

Battery-powered X-ray flaw detector

,

X-ray detector 70mm penetration

,

Portable X-ray inspection equipment

XXG-H300GP Battery-Powered X-ray Flaw Detector with 70mm Penetration
Key Specifications
Attribute Value
Focus Size 3.0mm
Maximum penetration (Fe) 70mm(A3) F=600mm
kV adjustment range 120~300 kv ±1kv
mA adjustment range 0.5~3 mA ±0.1mA
Max power 900W
Storage temperature AC190~265 V/50~60 Hz
Duty Circle 100% at an ambient temperature of 20 ℃
Product Overview

The XXG-H300GP is a high penetration industrial field radiographic testing battery-powered X-ray flaw detector designed for professional applications requiring precision and reliability.

Key Features
  • Continuous exposure capability at 300kv/3mA conditions
  • Wide input voltage range for versatile power supply compatibility
  • Lightweight design with strong penetration and stable performance
  • Innovative cylindrical controller design
  • Intuitive operation interface for ease of use
  • High penetration ability: Maximum 70mm
  • 95% power efficiency with small cable diameter and light weight
  • 99 minutes continuous operation without rest time
  • Continuously adjustable tube voltage and current for precise control
  • High frequency design reduces faults by eliminating high voltage coil
  • Direct compatibility with DR Panel image systems
Technical Specifications
Item Parameters
X-ray Generator
Weight 32kg
External dimensions (including end ring) ф295x770(DXL)
X-ray Controller
Weight 9.6kg
Dimensions (including end ring) ф264x458(mm)
Dimensions (excluding end ring) ф188x350(mm)
Focus Size 3.0mm
Radiation Angle 40°x40°
Maximum penetration (Fe) 70mm(A3) F=600mm
kV adjustment range 50~250 kv ±1kv
mA adjustment range 0.5~3 mA ±0.1mA
Max power 900W
Protect temperature 75℃
Duty Circle 100% at an ambient temperature of 20 ℃
Storage temperature -25°C~ +70°C
Power supply AC190~265 V/50~60 Hz

The machine features high frequency operation, low Ma, continuous work capability, wide range hardware design for long life and very low failure rate. It has strong anti-jamming capability and can work with power grid from 180V~260V. The light cable and head weight enhance portability with maximum penetration force of 70mm (F600, D > 2).

Package Includes
  • 10 core signal connecting cable
  • 2 core power cable
  • Ground line
  • Appendage package set
The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
