XXG-2505B Lithium Battery Ceramic X-Ray Tube Flaw Detector with 250KV Range

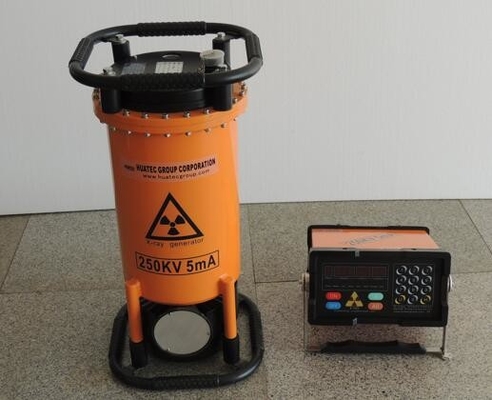

Large Image : XXG-2505B Lithium Battery Ceramic X-Ray Tube Flaw Detector with 250KV Range

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	XXG-2505B

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

XXG-2505B Lithium Battery Ceramic X-Ray Tube Flaw Detector with 250KV Range

Description

KV Regulating Range:	100-250 (KV)	MA Adjustment Range:	Less Than 5 (MA)
Exposure Time:	5.0 Minutes	Focus Size:	2.0*2.0 (mm)
Ray Angle:	40+5°	Ray Filter:	1.0mm(beryllium) +3.0mm(aluminum)
Maximum Penetration:	40 (mm)
Highlight:	Lithium Battery X-Ray Tube , Ceramic Flaw Detector , 250KV X-Ray Detector

XXG-2505B Lithium Battery Ceramic X-Ray Tube Flaw Detector with 250KV Range

XXG-2505B Lithium Battery Directional Radiation Ceramic X-Ray Tube Flaw Detector

XXG series are ceramic X-ray tubes, available in both directional and panoramic models. More durable than glass tubes: shake-proof with long working life.

Technical Specifications

Attribute	Value
KV regulating range	100-250 (KV)
MA adjustment range	Less than 5 (MA)
Exposure time	5.0 minutes
Focus size	2.0*2.0 (mm)
Ray Angle	40+5°
Ray filter	1.0mm(beryllium) +3.0mm(aluminum)
Maximum penetration	40 (mm)
The ring size	270270615 (mm)
Tube head weight	Directional 22 (KG)
Weight of controller	7.5 (KG)

Lithium Battery Parameters

Weight	15 (KG)
Volume	300200200 (mm)
Voltage	120 (V)
Energy	20 (AH)

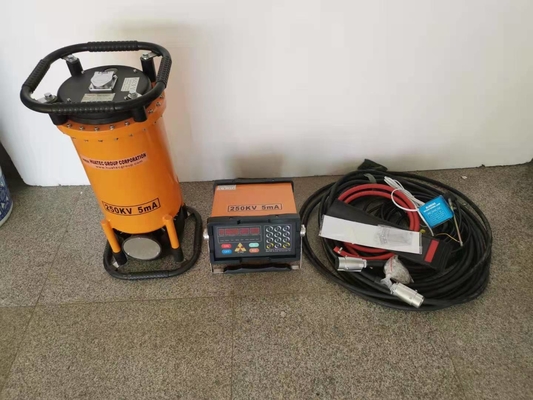

Standard Delivery

Directional ceramic X-ray tube	1 Pcs
Generator	1 Set
High voltage joins cable	1 Pcs (25 Meters)
Controller	1 Set
Power cable	1 Pcs (10 Meters)
Grounding cable	1 Pcs (5 Meters)
Accessories	1 Set (Including: alarm lamp, 1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse 1 pc)

Advantages Over Conventional Frequency Converters

Greater penetration under the same conditions
Compact size and lightweight design
Stable and reliable quality

Key Features

Automatic software and hardware check upon startup
Excellent anti-jamming performance for field operation without power supply
Easy operation with key-adjustable exposure parameters
Delay time opening HV function for operator safety
Slow high voltage adjustment to protect X-ray generator
Automatic 1:1 work/rest cycle control (max 5 minutes continuous exposure)
Comprehensive protection system with optical-sound alarm
Easy maintenance and repair
Optimized structural design for local operation
±0.3 time adjustment capability for precise exposure
