XXG-2505CX Lightweight High Anti-interference X-ray Flaw Detector 250kV

Large Image : XXG-2505CX Lightweight High Anti-interference X-ray Flaw Detector 250kV

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	XXG-2505CX

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

XXG-2505CX Lightweight High Anti-interference X-ray Flaw Detector 250kV

Description

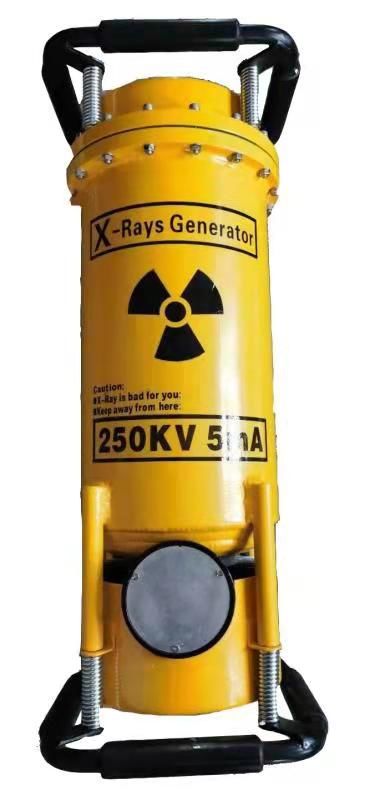

Pipe Voltage Range:	Directional 250kV	Tube Current Range:	5mA
Focus Size:	≤1.5*1.5	Maximum Penetration (Fe):	≥40mm
Cooling Mode:	Air Cooling
Highlight:	Lightweight X-ray flaw detector , High anti-interference flaw detector , 250kV X-ray detector

XXG-2505CX Lightweight High Anti-interference X-ray Flaw Detector 250kV

Key Specifications

Attribute	Value
Pipe voltage range	directional 250kV
Tube current range	5mA
Focus size	≤1.5*1.5
Maximum penetration (Fe)	≥40mm
Cooling mode	air cooling

Product Overview

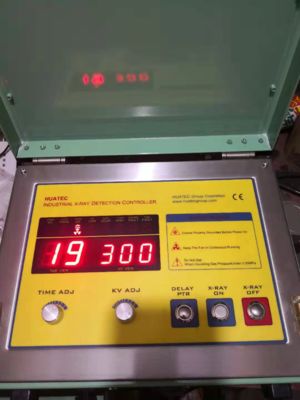

The XXG-2505CX features a new control structure adaptable to various X-ray generators. It offers a user-friendly interface with LED status indicators, industrial stepless knobs for parameter adjustment, and modular design for high reliability and easy maintenance. The automatic training mode with voltage reduction function protects the X-ray tube lifespan while providing accurate fault detection.

Technical Specifications

Type of ray tube	cermet tube
Controller display mode	Digital display KV/T
Use of environmental conditions	Ambient temperature: -15° to +50° Ambient humidity: ≤90%
Size & Weight	Generator: 220220550mm, 17.4kg Control machine: 320270180mm, 8kg

Advanced Features

Industry-leading intelligent X-ray control system with high anti-interference capability
Modular main circuit structure with air duct heat dissipation for reliable continuous operation
Industrial stepless knobs for fast, convenient parameter adjustment
Chopper control of start-up speed adapts to different X-ray generators
Soft-start and slow turn-off voltage control protects X-ray generators
Automatic training mode with voltage reduction protection during discharging
Working state indicators on casing for long-distance observation
Safety door interlocking input terminal for personnel protection
Settable exposure time delay function
Easy-access cooling fan for maintenance and long-term stability
Rubber shock-absorption guards for outdoor work suitability
Cumulative exposure time recording for usage monitoring
