High Precision Digital Sensor SRT-680G Roughness and Contour Tester

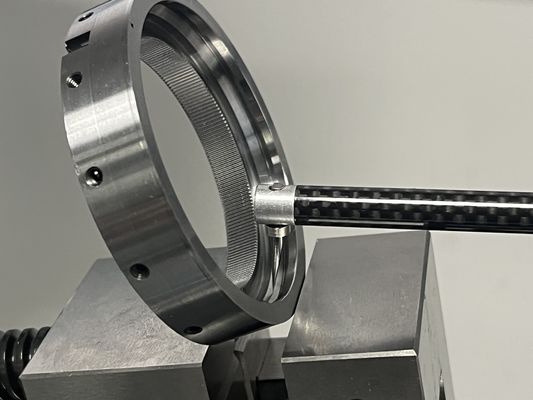

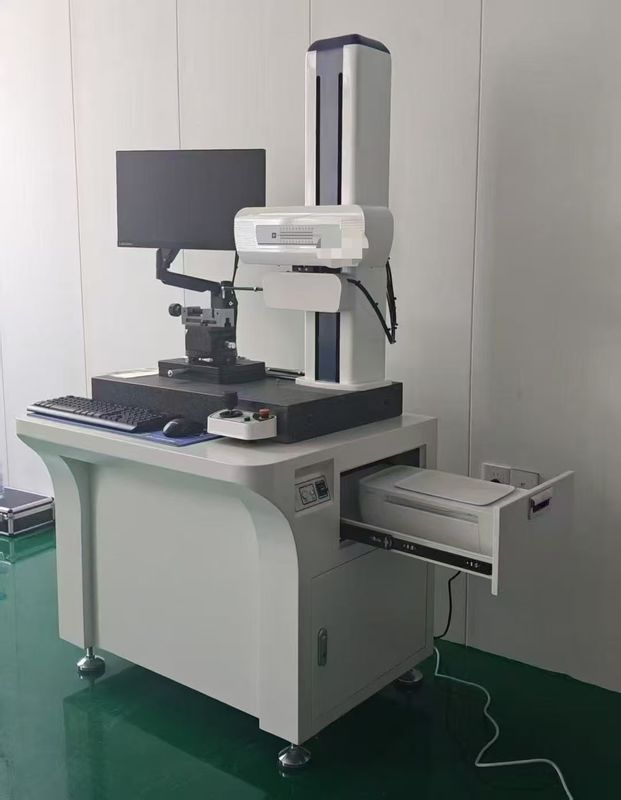

Large Image : High Precision Digital Sensor SRT-680G Roughness and Contour Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	SRT-680G

Contact Now

High Precision Digital Sensor SRT-680G Roughness and Contour Tester

Description

X Axis:

200mm

Straightness:

0.6μm /100mm

Z1（range）Sensor:

40mm（Roughness Range Synchronization）

Z2 (Height):

550mm

Highlight:

SRT-680G Digital roughness tester

Precision Roughness and Contour Tester

High Precision Digital Sensor SRT-680G Roughness and Contour Tester

Key Specifications

X axis	200mm
Straightness	0.6μm /100mm
Z1 (Range) Sensor	40mm (Roughness range synchronization)
Z2 (Height)	550mm

Measurement Principle

Cartesian coordinates with stylus contact measurement
High precision air floating guide rail as X-axis measuring datum
Digital sensor for Z-axis profile measurement
Windows-based M.MD measuring program for data processing

Technical Parameters

Parameter	Specification	Resolution
X axis	200mm	0.1μm
Straightness	0.6μm /100mm	--------
Z1 (Range) Sensor	40mm (Roughness range synchronization)	0.05μm
Min. inner hole	30mm (smaller diameters possible with specialized needles)	----------
Linear accuracy	≤±(1+I0.12HI)μm	--------

Measurement Capabilities

Dimensional Analysis:

Horizontal/vertical distance, linear distance, radius, diameter

Angle Measurement:

Horizontal angle, vertical angle, cross angle

Tolerance Analysis:

Parallelism, perpendicularity, straightness, crown, circular arc profile

Technical Highlights

Simultaneous roughness and profile analysis without sensor changes
High-precision friction linear guides for X-axis
Imported digital sensor for Z1 axis with excellent linearity
Simple stylus replacement with one-time installation
Bilingual software support (Chinese/English)
CAD-compatible annotation and DXF file support
Automatic feature recognition and capture

Installation & Acceptance

On-site installation and testing by supplier
Comprehensive training in operation and maintenance
Acceptance per national verification procedures
Complete equipment verification upon delivery
