FD-GT-20 TFT Color Display Wireless WIFI Lightweight Trolley UT Railway Flaw System

FD-GT-20 TFT Color Display Wireless WIFI Lightweight Trolley UT Railway Flaw System
FD-GT-20 TFT Color Display Wireless WIFI Lightweight Trolley UT Railway Flaw System FD-GT-20 TFT Color Display Wireless WIFI Lightweight Trolley UT Railway Flaw System

Large Image :  FD-GT-20 TFT Color Display Wireless WIFI Lightweight Trolley UT Railway Flaw System

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: FD-GT-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD86440/set - USD87280/set
Packaging Details: Carton packing box
Delivery Time: 10-15 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 5sets/Month

FD-GT-20 TFT Color Display Wireless WIFI Lightweight Trolley UT Railway Flaw System

Description
Amplifier Band: -3dB 1.5MHz~3.0MHz Blocking Range: Not Bigger Than 20mm
Horizontal Linearity Error: ≤15% PRF: 400Hz Per Channel
Displaying Mode: A-scan\B-scan\A+B Scan Frequency Range: 1.5MHz~3.0MHz
Gain: 0~80dB
Highlight:

TFT color display railway flaw detector

,

Wireless WiFi trolley UT system

,

Lightweight nondestructive testing equipment

FD-GT-20 TFT Color Display Wireless WIFI Lightweight Trolley UT Railway Flaw System
Product Overview

The HUATEC FD-GT-20 rail flaw detector is the third generation of Goworld's all-digital products featuring TFT color display and lightweight trolley design for railway systems. Compliant with TB/T 2340-2012 UT Rail Tester standard issued by Ministry of Railway (China), this equipment is capable of detecting flaws in rails ranging from 43~75kg/m in type, making it suitable for railway, high-speed railway, and subway applications.

Key Specifications
Attribute Value
Amplifier band -3dB 1.5MHz~3.0MHz
Blocking range Not bigger than 20mm
Horizontal Linearity error ≤15%
PRF 400Hz per channel
Displaying Mode A-scan\B-scan\A+B scan
Frequency Range 1.5MHz~3.0MHz
Gain 0~80dB
Technical Specifications
Channels: 10 channels (9 inspection channels and 1 calibration channel)
Probe type: Dual-element probes with frequencies between 2-2.5 MHz (6×70°, 2×37°, 1×0°)
Receptacle: BNC
Working temperature: -15℃~45℃
Working time: ≥8 hours
Water tank capacity: ≥20L
Flaw detection speed: Max 5.0km/h
Weight: Approximately 24kg (frame), 2.4kg (ultrasonic instrument)
Key Features
  • Trolley frame is compact, durable and easy to maintain
  • Large-capacity integrated toolbox water tank
  • Integral lifting probe holder for easy probe removal and replacement
  • Small size and portable with industrial three-proof touch panel
  • Excellent performance indicators in line with relevant standards
  • Supports GPS positioning, data cloud storage, and automatic speech recognition
  • Wireless WIFI connectivity between host and operation terminal
  • Touch screen operation with customizable interface
  • Full data recording capability (up to 50 km) with export and playback functions
Detection Capabilities

The FD-GT-20 system provides comprehensive detection of damage to all major parts of the rail:

  • 2×70° probes scan the left side of the rail head
  • 2×70° probes scan the middle of the rail head
  • 2×70° probes scan the right side of the rail head
  • 2×37° probes scan rail waist (screw cracks and other oblique cracks)
  • 1×0° probe scans the rail head, rail waist, rail bottom, and screw hole horizontal crack
System Components
Trolley Appearance Structure

Compact design with overall dimensions of approximately 780mm × 290mm × 1006mm in working condition.

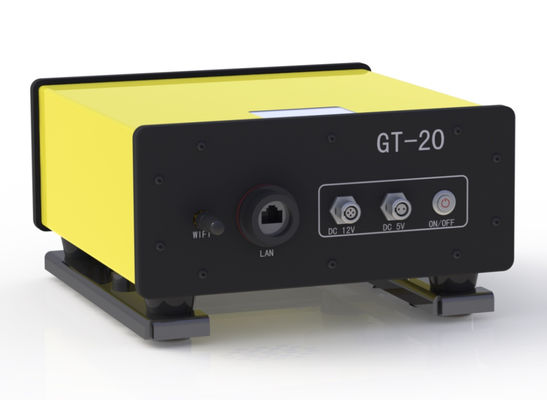

Instrument Appearance

Small and portable with dimensions of 94×222×225mm and net weight of about 1.8kg.

Integrated Probe Holder

All probes are enclosed at the bottom of the car, allowing for easy lifting or removal in a single operation.

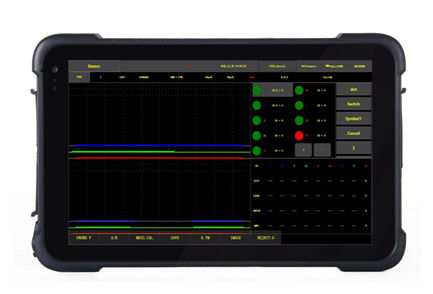

Industrial Three-Proof Tablet

Dustproof, waterproof, and shockproof touch screen tablet for reliable operation in harsh environments.

The FD-GT-20 system adopts ultrasonic host + operation terminal mode with wireless WIFI connectivity, enabling human-machine detection separation, data online/offline real-time storage, GPS positioning, and data cloud storage capabilities.

Contact Details
HUATEC GROUP CORPORATION

Contact Person: Ms. Shifen Yuan

Tel: 8610 82921131,8613910983110

Fax: 86-10-82916893

Send your inquiry directly to us (0 / 3000)
