HBX-0.5 Portable Brinell Hardness Tester for Heavy Parts, 100-400HBS Range

Large Image : HBX-0.5 Portable Brinell Hardness Tester for Heavy Parts, 100-400HBS Range

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HBX-0.5

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD310/set - USD351/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HBX-0.5 Portable Brinell Hardness Tester for Heavy Parts, 100-400HBS Range

Description

Measuring Range:	100-400HBS	Steel Ball Diameter:	10mm
Impact Capacity:	4.9J	Dimensions:	Φ55 X 370mm
Standard:	GB/T 231.2, ISO 6506-2 And ASTM E10
Highlight:	Portable Brinell Hardness Tester , HBX-0.5 Brinell Hardness Tester , Brinell Tester for Heavy Parts

HBX-0.5 Portable Brinell Hardness Tester for Heavy Parts, 100-400HBS Range

Product Specifications

Attribute	Value
Measuring range	100-400HBS
Steel ball diameter	10mm
Impact capacity	4.9J
Dimensions	Φ55 x 370mm
Standard	GB/T 231.2, ISO 6506-2 and ASTM E10

Product Description

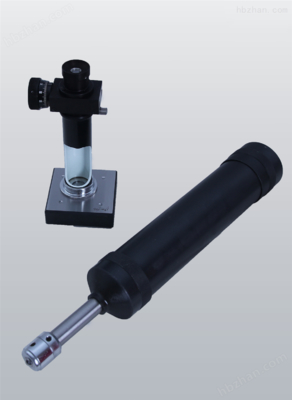

HBX-0.5 Portable Heavy Parts Brinell Hardness Tester

Features & Uses:

Small volume, convenient for carrying, easy operation
Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
Determines Brinell hardness of ferrous metals with elastic modulus approximate to 2×105 MPa
Especially suitable for determining hardness of heavy parts on the spot

Technical Specifications

Measuring range	100-400HBS
Steel ball diameter	10mm
Impact capacity	4.9J
Dimensions	Φ55 x 370mm
Weight	approx. 3.3kg

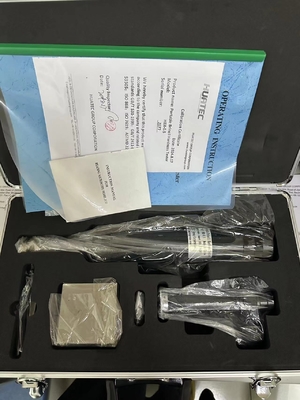

Standard Accessories

Portable Brinell standardized block: 1 pc.
20X Readout microscope: 1 pc.

Product Images
