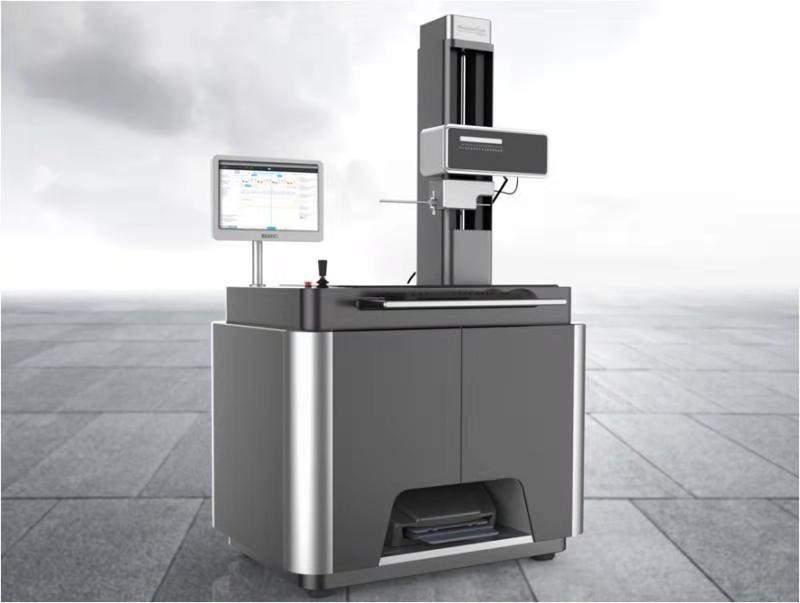

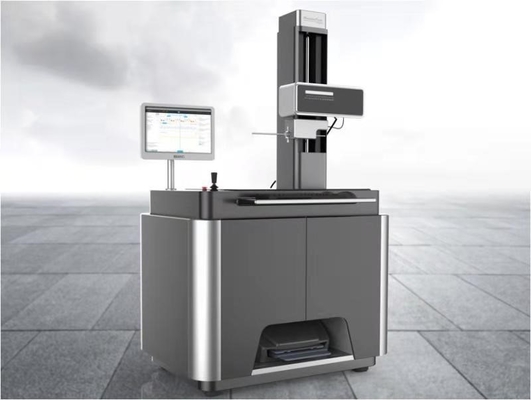

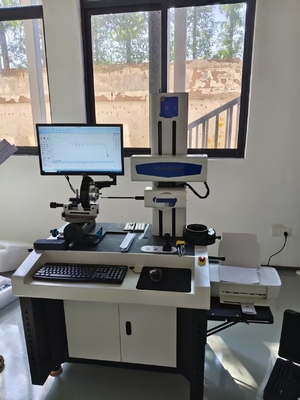

Workpiece Surface Contour Tester with 100mm Measuring Range and 30mm Sensor

Large Image : Workpiece Surface Contour Tester with 100mm Measuring Range and 30mm Sensor

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO CE GOST
Model Number:	SRT-210G

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packed in high quality cartons
Delivery Time:	5~10 working days
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	50 sets per month

Contact Now

Workpiece Surface Contour Tester with 100mm Measuring Range and 30mm Sensor

Description

Product Name:

Roughness Profiler Contour Tester

Measuring Arrange:

100mm

Straightness:

1um/100mm

Resolution:

0.05

Highlight:

Surface contour tester 100mm range

Workpiece contour tester 30mm sensor

Non-destructive surface measurement tool

Workpiece Surface Contour Tester with 100mm Measuring Range and 30mm Sensor

Product Attributes

Attribute	Value
Product name	Roughness Profiler Contour Tester
Measuring Arrange	100mm
Straightness	1um/100mm
Resolution	0.05

Product Description

Workpiece Surface Line Elements Point Features Point to Point Distance Line to Line Distance Location of Each Element Roughness Profiler Contour Tester

Features

Various types of workpiece surface line elements, point features, point to point distance, line to line distance
Location of each element includes: distance, parallelism, angle, groove depth, groove width, radius
Straightness analysis, convexity analysis, profile analysis, and more

Specifications

XI AXIS (Cross Arm)

Measuring Arrange	100mm
Straightness	1um/100mm
Driving Mode	Direct drive motor
Movement Speed	0～10mm/s (arbitrary speed)
Resolution	0.05
Indication accuracy	±(2.5+2L/100) L is driving length(mm)
Measuring direction	backward
Measuring Method	Grating Ruler

Z1 AXIS (SENSOR)

Measuring range	30mm
Resolution	0.05
Measuring Method	Holographic grating sensor
Indication accuracy	±(1.5+\|6H\|/50)
Probe up/down movement	Arc movement
Probe direction	downward
Probe lifting mode	manual
Measuring force	6mN
Probe	radius:25 (cemented carbide) length:20mm diameter:2mm
Climbing angle	up75° down85°
Measuring speed	0.1 mm/s～4 mm/s(any speed)

Z2 AXIS (COLUMN)

Max. Measuring height	200mm
Movement mode	CNC or handle
Movement speed	0.1～8mm/s(any speed)

Tool and fixture

Precision two-dimensional adjustment platform	X:0 to 25mm,Y:0 to 25mm
Angle adjustment platform	Axial 360 degrees,pitch:±45degrees
V shaped iron	60mm

Acquisition control system

System transmission mode	USB and LAN
System resolution	/
Motion control mode	CNC or handle drive

Data processing

Zoom in or out	Zoom in and out with the mouse wheel
Guides	Add guides to any area of the drawing
Data fitting	when the finished part cannot be measured at one time, it can be divided into several measurements and finally merged
Remove abnormal points	manually or automatically
Graph move	drag the mouse to move freely within the graph coordinates
Graph rotation	Any angle rotation
Zoom	Select region to zoom in and out
SPC quality analysis	Histogram,normal distribution
File output mode	PDF, Excel
Measuring report	editor can output standard report, and user can edit report according to requirement

Working Parameters

Pressure	/
Air consumption	30L/min
Power	400W,AC220V 50HZ
Working condition	Temperature:10～30℃； Humidity:＜85%

Optional

Industrial Personal Computer & display screen	1
Output A4 printer	1
Standard adjustment platform	1
Stand block	1
Standard ball	1
