HD-104 Wet Sponge Holiday Detector for Conductive Substrates Under 500 Microns

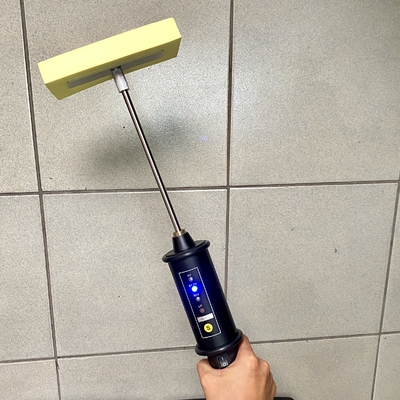

Large Image : HD-104 Wet Sponge Holiday Detector for Conductive Substrates Under 500 Microns

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HD-104

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD575/set - USD650/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HD-104 Wet Sponge Holiday Detector for Conductive Substrates Under 500 Microns

Description

Detector Range:	9V ——300µm;67.5V—500µm;90V——500µm	Sensitivity:	9V——90KΩ+5% ;67.5V—125KΩ+5% ;90V——400KΩ+5%
Accuracy Of Voltage:	+5%	Battery:	Li-pol Rechargeble Battery 11.1V/1100mA
Power:	≤0.5W	Voltage Indication:	LED Indication For Each Voltage
Battery Charging:	12VDC Charger
Highlight:	wet sponge holiday detector , conductive substrate holiday detector , HD-104 non destructive testing

HD-104 Under 500 Microns Conductive Substrate Insulating Coating Wet Sponge Holiday Detector

Key Features

Utilizes the wet sponge technique and has been designed to set a new standard for wet sponge detectors - a high quality, low voltage detector with similar accessories to a high voltage spark tester.

Supplied ready to use
Automatic sensitivity calibration and voltage checks
Low battery indicator
Visual and audible alarms
Integral and separate wand functionality
A wide range of fully interchangeable wand accessories
Easy release snag proof cables
Large standard sponge

Technical Specifications

Attribute	Value
Detector range	9V ——300µm; 67.5V—500µm; 90V——500µm
Sensitivity	9V——90KΩ+5%; 67.5V—125KΩ+5%; 90V——400KΩ+5%
Accuracy of voltage	+5%
Battery	Li-pol rechargeable battery 11.1V/1100mA
Power	≤0.5W
Weight main unit	500g
Size	290×53×53mm
Voltage indication	LED indication for each voltage
Battery charging	12VDC charger
Sponge size	170×70×30mm
Detecting rod length	195mm
Earth wire length	4m

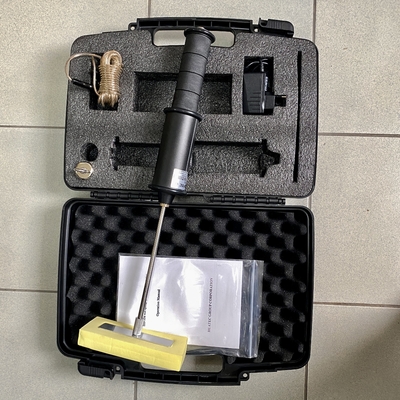

Standard Delivery

HD-104 pinhole main unit (1pc)
Standard wand and flat sponge (1pc)
Earth wire (1pc)
Charger (1pc)
Carrying case (1pc)
Manual (1pc)
Warranty card (1pc)
