HXRF-145JP Portable Chemical Composition Spectrometer for Alloy Analysis

HXRF-145JP Portable Chemical Composition Spectrometer for Alloy Analysis
HXRF-145JP Portable Chemical Composition Spectrometer for Alloy Analysis HXRF-145JP Portable Chemical Composition Spectrometer for Alloy Analysis

Large Image :  HXRF-145JP Portable Chemical Composition Spectrometer for Alloy Analysis

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HXRF-145JP
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD21657-USD24915/SET
Packaging Details: Blue ABS box+Outer carton packaging
Delivery Time: 10-15 working days after receipt of your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

HXRF-145JP Portable Chemical Composition Spectrometer for Alloy Analysis

Description
Element Detection Range: (Mg) And Uranium (U) With Atomic Number Of 12-92 Analytical Methods: Direct Reading Analysis Method+basic Parameter Method（FP）
Front End Testing Window: *≤ 9mm * 5mm "waist" Shaped Window Data Transmission Method: 3G/4G, Wired Connection, WiFi, Blue Tooth
Operating Environment Temperature And Humidity: Humidity≤90% -20℃ - +60℃
Highlight:

portable alloy composition spectrometer

,

chemical analysis spectrometer for alloys

,

non-destructive alloy testing equipment

HXRF-145JP Portable Automatic Recognition Chemical Composition Spectrometer Device
Product Attributes
Attribute Value
Element detection range (Mg) and uranium (U) with atomic number of 12-92
Analytical methods Direct reading analysis method+basic parameter method（FP）
Front end testing window *≤ 9mm * 5mm "waist" shaped window
Data transmission method 3G/4G, wired connection, WiFi, Blue tooth
Operating environment temperature and humidity humidity≤90% -20℃ - +60℃
Main Features
  • Small, light and easy to carry, analyzer automatically powers on when installed with battery.
  • High-speed processing chip, advanced algorithm and high-responsive software, resulting in faster analysis, built-in 5 megapixel high-definition camera.
  • High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology.
  • Indicator alarm lights flash for safety purposes during measurement.

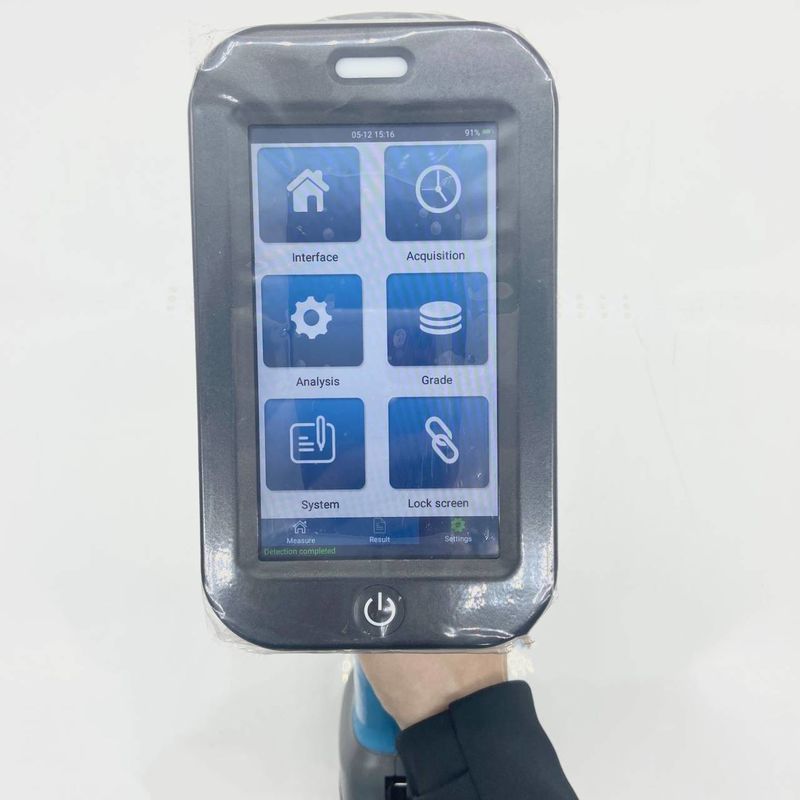

  • 5-inch industrial resistive touch screen, superior to capacitor screen in back-light conditions.
  • Anti-slip, abrasion resistance and streamlined design with integrated high speed digital multi-channel technology.
  • Intelligent battery management with real-time monitoring of battery capacity.
  • Automatic standby mode when not used and recovery when picked up.
  • Automatic air pressure adjustment based on altitude detection.
  • Supports battery hot plug for replacement without powering off.
  • Built-in GPS for real-time geographical information collection.
  • IP65 protective design.
  • Multi-level user management functions.
Technical Parameters and Specifications
Parameter Specification
Detector High performance silicon drift SDD detection module
Excitation source 45KV/200uA Silver Target End Window Integrated Micro X-ray Tube and High Voltage Source
Element detection range Elements between magnesium (Mg) and uranium (U) with atomic number of 12-92
Detection object Solid
Weight ≤1.75KG (Including battery)
Power supply Rechargeable lithium battery, standard configuration 6800mAh, voltage: 7.2V; Sustainable work for up to 12 hours
Safety Instrument side measurement value ≤ 0.2 μSv/h (after deducting background)
Main Applications
Waste Recycling and Sorting

On-site analysis, testing, and sorting of waste metals and diverse alloy types for quick and reliable transaction judgments.

Material Identification and Safety

Alloy material identification (PMI) for industries including petrochemical, power plants, military, ensuring safety and compliance with international standards.

Quality Control and Assurance

Essential for quality control in metal processing and manufacturing industries to prevent material mix-ups and ensure product quality.

Nondestructive Testing (NDT)

Testing without damaging the object's performance or internal organization, with remote control capabilities through software.

General Application Fields
  • Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site
  • Metal identification / scrap metal sorting
  • QA/QC management in metal production, processing, casting, etc
  • Medicine and biological medicine
  • Identification of positive materials, oil refining and petrochemical industry
  • Thermal power plant, hydroelectric power station, nuclear power plant
HXRF-145JP Portable Chemical Composition Spectrometer for Alloy Analysis 0
HXRF-145JP Portable Chemical Composition Spectrometer for Alloy Analysis 1
