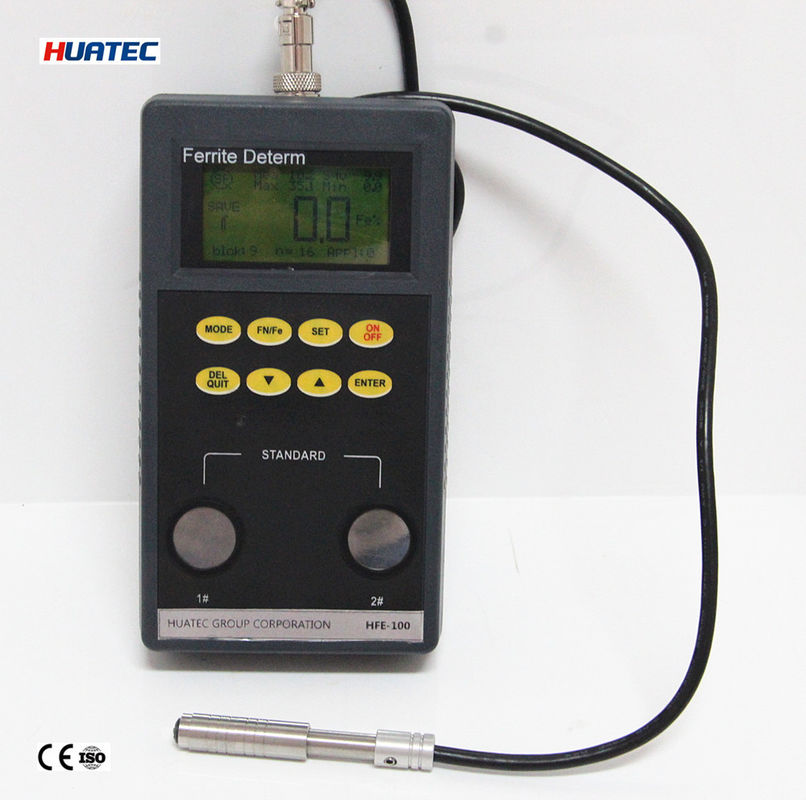

HFE-100 Digital Ferrite Content Tester for Austenitic Steel Welds

HFE-100 Digital Ferrite Content Tester for Austenitic Steel Welds
HFE-100 Digital Ferrite Content Tester for Austenitic Steel Welds HFE-100 Digital Ferrite Content Tester for Austenitic Steel Welds

Large Image :  HFE-100 Digital Ferrite Content Tester for Austenitic Steel Welds

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HFE-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD4370-USD4940/SET
Packaging Details: ABS box+Outer carton packaging
Delivery Time: 1 month after receipt of your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10 Sets/YEAR
Contact Now

HFE-100 Digital Ferrite Content Tester for Austenitic Steel Welds

Description
Range: 0.1~80%Fe , ( 0.1~110)WRC-number Precision: ±2%(raneg0.1~30%Fe), ±3%(raneg30~80% Fe)
Operating Temperature: 5 ~ 40℃ Batteries: 9v 6F22
Size: LX WX H 175X100X38mm
Highlight:

digital ferrite content tester

,

austenitic steel weld tester

,

non destructive ferrite measurement

HFE-100 Digital Portable Ferrite Content Testing Instrument
Product Specifications
Attribute Value
Range 0.1~80%Fe , (0.1~110)WRC-number
Precision ±2%(range 0.1~30%Fe), ±3%(range 30~80% Fe)
Operating temperature 5 ~ 40℃
Batteries 9v 6F22
Size L x W x H 175 x 100 x 38mm
Product Description

The HFE-100 Digital Portable Ferrite Content Testing Instrument is designed for accurate ferrite content measurements on welded seams and cladding items in industrial applications.

Applications

In the chemical industry, stress-bearing members of containers, pipes, reactor vessels and other plant are usually made of austenitic steel or duplex steel or cladding of austenitic chromium-nickel steel. The residual ferrite content must be within a specific range compatible with the mechanical strength requirements.

Technical Data

The meter is mainly used for the determination of the ferrite content of welded austenitic steel or Duplex or cladding of austenitic chromium-nickel steel weld.

Accessories Main unit, probe, two calibration sample pieces, carrying-case, operating manual, certificate.
Features
  • LC-display
  • Two display modes (SAVE and FREE): single testing value or continuous testing value
  • Two units -- Fe% and FN (WRC number)
  • Statistics display together with measurements: mean value, Max value, Min value, standard deviation value
  • Auto power off function
  • Meet standards of GB/T1954-2008, ISO 8249 and ANSI/AWS A4.2
Usage Notice
Important Handling Instructions

Probes are very sensitive elements. During measurement, they should be gently placed on the sample. Please note:

  • The weld must be completely cooled before measurement. The probe should make gentle contact with the specimen.
  • If using an external power supply, be sure to remove the battery first.
  • Do not disassemble or beat the probe, as this will cause parameter changes.
  • Remove the battery when not using the instrument for extended periods.
Product Images
HFE-100 Digital Ferrite Content Tester for Austenitic Steel Welds 0 HFE-100 Digital Ferrite Content Tester for Austenitic Steel Welds 1 HFE-100 Digital Ferrite Content Tester for Austenitic Steel Welds 2 HFE-100 Digital Ferrite Content Tester for Austenitic Steel Welds 3
