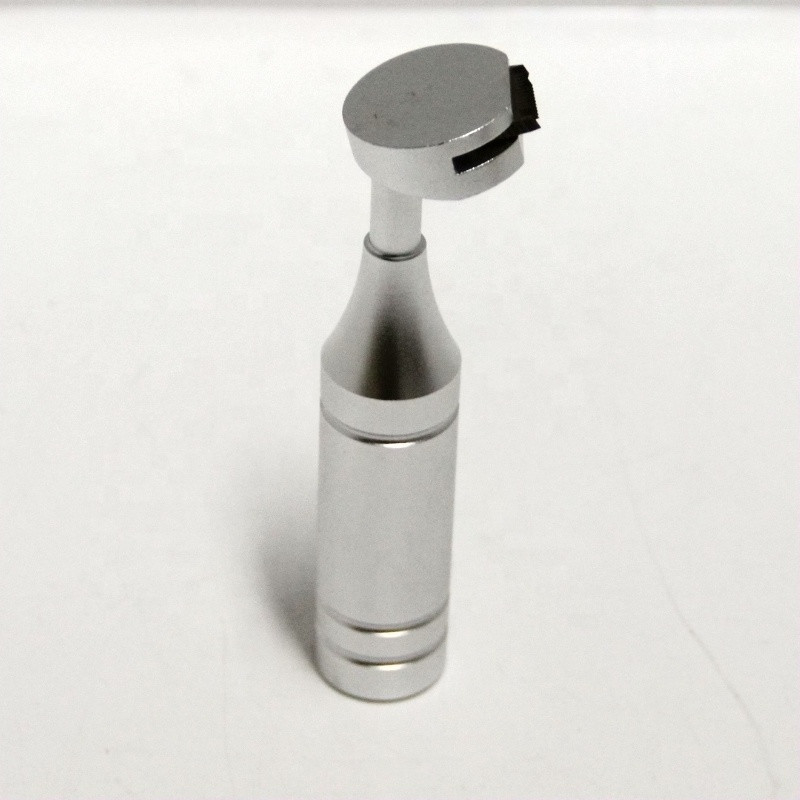

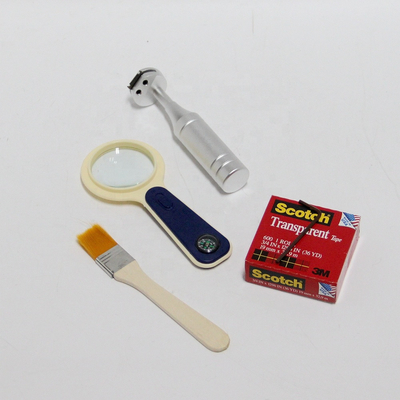

ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm

ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm
ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm

Large Image :  ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: Cross Hatch Cutter
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD65-USD90/SET
Packaging Details: ABS box+Outer carton packaging
Delivery Time: 1 month after receipt of your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10 Sets/YEAR
Contact Now

ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm

Description
Standard: ISO 2409-1974,GB/T9286-98 Multi-blade Cutters: 1mm,2mm,and 3mm
Highlight:

ISO 2409 cross hatch cutter

,

paint adhesion testing tool

,

1mm 2mm 3mm cross cutter

Cross Hatch Cutter one/two/three Knifes type Organic Paints Grid Scratching Adhesion
Product Specifications
Standard ISO 2409-1974, GB/T9286-98
Multi-blade Cutters 1mm, 2mm, and 3mm
Product Description

The Cross Hatch Cutter is designed and manufactured in accordance with ISO 2409-1974 and complies with GB/T9286-98 standard. This instrument is primarily used for measuring the grid scratching adhesion of organic paints. Suitable for both laboratory use and various construction site conditions.

Available in three specifications of multi-blade cutters (1mm, 2mm, and 3mm) to accommodate different test conditions:

  • 1mm cutter: Suitable for test pieces with paint film less than 60μm
  • 2mm cutter: Suitable for test pieces with paint film of 60-100μm
Technical Specifications
No Standard Knife Edge Knife Knife Distance
H-5125 DIN/ISO 6 1 1mm (0.04inch)
H-5126 DIN/ISO 6 1 2mm (0.08inch)
H-5128 DIN/ISO 6 1 3mm (0.12ch)
H-5129 ASTM 11 1 1mm (0.04ch)
H-5130 ASTM 11 1 1mm (0.04ch) & 2mm two knifes changeable
H-5131 ASTM 11 1 1mm (0.04ch) & 2mm & 3mm three knifes changeable
H-5132 DIN/ISO 6 1 1mm (0.04inch) & 2mm two knifes changeable
H-5133 DIN/ISO 6 1 1mm (0.04inch) & 2mm & 3mm three knifes changeable
Available Models
  • The one knife, two knives for general use (1mm and 2mm)
  • The rotary three knives (1mm, 2mm, and 3mm)
  • The cylindrical four sides (1mm, 2mm)
ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm 0
