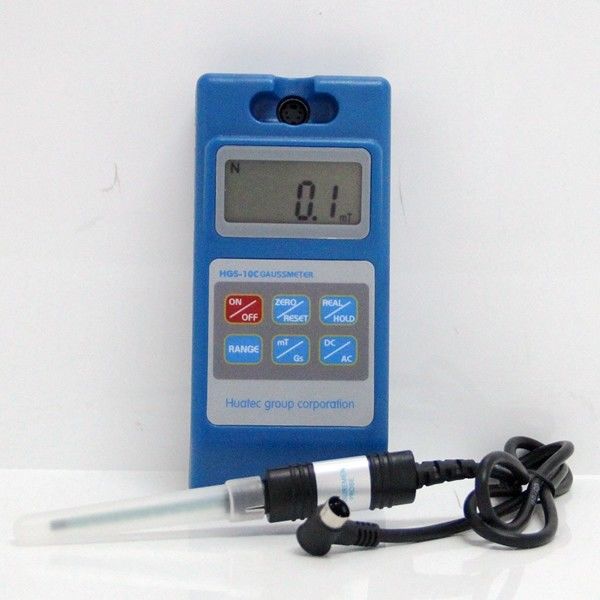

HGS-10C Digital Gaussmeter 0-2000mT Magnetic Field Strength Meter

HGS-10C Digital Gaussmeter 0-2000mT Magnetic Field Strength Meter
HGS-10C Digital Gaussmeter 0-2000mT Magnetic Field Strength Meter HGS-10C Digital Gaussmeter 0-2000mT Magnetic Field Strength Meter

Large Image :  HGS-10C Digital Gaussmeter 0-2000mT Magnetic Field Strength Meter

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HGS-10C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD276/set - USD312/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HGS-10C Digital Gaussmeter 0-2000mT Magnetic Field Strength Meter

Description
Rang: 0~200mT~2000mT Accuracy: ±5%
Sensitivity: 0.01mT, 0.1mT AC Magnet Field: 50-200Hz
Temperature Of Environment: 5℃-40℃ Relative Humidity: 20%-80%(no Condensation)
Power Supply: Battery 9V, Constant DC Power
Highlight:

digital gaussmeter magnetic field meter

,

HGS-10C gaussmeter 0-2000mT

,

magnetic strength meter nondestructive testing

HGS-10C Digital Indicator Field Strength Meter
Product Specifications
Attribute Value
Range 0~200mT~2000mT
Accuracy ±5%
Sensitivity 0.01mT, 0.1mT
AC Magnet Field 50-200Hz
Temperature of environment 5℃-40℃
Relative humidity 20%-80% (no condensation)
Power Supply Battery 9V, constant DC power
Product Description

HGS-10C Digital Indicator Field Strength Meter is a specialized instrument designed for inspecting and checking flux density, making it one of the most versatile devices in magnetic field measurement applications.

This SCM-controlled digital Tesla meter features handheld operation capability for measuring both DC and AC magnetic fields and flux density. Its portable design, wide measuring range, simple operation, and clear display make it ideal for field use.

Key Features
  • Measurement value/peak value hold function
  • Switchable display units (mT or Gs)
  • Selectable measurement ranges (200mT or 2000mT)
  • Key-activated zero reset function
  • Approximately 20 hours continuous operation with 9V battery
Applications
  • Magnetic field distribution measurement on material surfaces
  • Working magnetic field measurement for instruments such as iron-removing devices, magnet-selecting machines, magnet chucks, magnet spools, and demagnetizing coils
  • Leakage magnetic field measurement on iron surfaces
Technical Specifications
Range 0~200mT~2000mT
Accuracy ±5%
Sensitivity 0.01mT, 0.1mT
AC Magnet Field 50-200Hz
Operating Temperature 5℃-40℃
Relative Humidity 20%-80% (no condensation)
Power Supply Battery 9V, constant DC power
Dimensions 150mm × 70mm × 30mm
Weight N.W: 500g, G.W: 900g
Display 4½ LCD
Standard Package Includes
  • HGS10C Digital Gaussmeter (1 pc)
  • Instruction manual (1 pc)
  • Product certificate (1 pc)
  • Probe (1 pc)
  • Batteries (4 pcs)
HGS-10C Digital Gaussmeter 0-2000mT Magnetic Field Strength Meter 0 HGS-10C Digital Gaussmeter 0-2000mT Magnetic Field Strength Meter 1 HGS-10C Digital Gaussmeter 0-2000mT Magnetic Field Strength Meter 2
