XXGH-3005 300kV Industrial NDT X-ray Machine with Ceramic Tube

XXGH-3005 300kV Industrial NDT X-ray Machine with Ceramic Tube
XXGH-3005 300kV Industrial NDT X-ray Machine with Ceramic Tube XXGH-3005 300kV Industrial NDT X-ray Machine with Ceramic Tube

Large Image :  XXGH-3005 300kV Industrial NDT X-ray Machine with Ceramic Tube

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: XXGH-3005
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Outer carton packaging
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

XXGH-3005 300kV Industrial NDT X-ray Machine with Ceramic Tube

Description
Max Penetration Thickness Steel (A3): 40mm Focal Distance: 600mm
Exposure Time: 5min Tube Voltage (KVP): 150-300
Focus Mm2: 1.0×2.5 Radiation Angle: 360°*30°
Highlight:

300kV industrial X-ray machine

,

NDT X-ray machine with ceramic tube

,

industrial non-destructive testing equipment

XXGH-3005 300kv Industrial NDT Radial X-ray Machine Ceramic Tube Circumferential Conical Target
Key Specifications
Attribute Value
Max Penetration thickness Steel (A3) 40mm
Focal Distance 600mm
Exposure Time 5min
Tube voltage (KVP) 150-300
Focus mm² 1.0×2.5
Radiation Angle 360°×30°
Product Overview

The XXGH-3005 features an advanced control system designed for industrial NDT applications. Its modular structure ensures high reliability and easy maintenance, while intelligent features protect equipment longevity and operator safety.

Controller Features
  • Industry-leading expert intelligent X-ray control system with high anti-interference capability
  • Modular main circuit structure with air duct heat dissipation design for reliable continuous operation
  • Industrial stepless knobs for fast, convenient parameter adjustment
  • Chopper control of start-up speed, adaptable to different X-ray generators
  • Soft-start and slow turn-off voltage control for X-ray generator protection
  • Automatic training mode with voltage reduction protection during generator discharging
  • Working state indicators for convenient long-distance observation
  • Safety door interlocking input terminal for personnel protection
  • Settable exposure time delay function
  • Easy-access cooling fan for regular maintenance
  • Rubber shock-absorption guards for outdoor work suitability
  • Accumulative exposure time recording for usage monitoring
Technical Parameters
TYPE ITEM XXGH-3005
Max Penetration thickness Steel (A3) 40mm
Focal Distance 600mm
Exposure Time 5min
Film Type HUATEC T7
Double lead foil Intensifying screen 0.03
Darkroom Disposal 20±2℃
Development 5minutes
Blackness 1.5
Input Voltage (V) 220V±10% 50―60Hz
Input Capacity (KVA) 3.0
Output Tube voltage (KVP) 150-300
Output Tube current (mA) 5
Stability ±1%
X-RAY Tube Focus mm² 1.0×2.5
X-RAY Tube Radiation Angle 360°×30°
Sensitivity k≤1.8%
Operation Mode Intermittent operation (1:1 radiating to cooling time ratio)
X-Ray Controller Dimension 270×270×140
X-Ray Controller Weight 9kg
X-Ray Controller Circuit Structure Micro-computer control, Modular structure, Voice prompt
X-RAY Generator Cooling Force air cooling
X-RAY Generator Insulation SF6 Gas Insulation
X-RAY Generator Working Pressure 0.35Mpa-0.45Mpa
X-RAY Generator Dimension 340×340×700
X-RAY Generator Weight (kg) 32kg
Working Temperature -10℃―+40℃
Standard Delivery
  • Panoramic ceramic X-ray tube: 1 Pcs
  • Generator: 1 Set
  • High voltage joins cable: 1 Pcs (25 Meters)
  • Controller: 1 Set
  • Power cable: 1 Pcs (10 Meters)
  • Grounding cable: 1 Pcs (5 Meters)
  • Accessories: 1 Set (Including: alarm lamp, lead letter, film dark cassettes, intensifying screens, wire penetrameter, fuse)

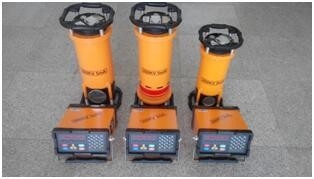

XXGH-3005 300kV Industrial NDT X-ray Machine with Ceramic Tube 0 XXGH-3005 300kV Industrial NDT X-ray Machine with Ceramic Tube 1
