HM-50P Metallographic Polarizing Microscope 50-500X Magnification

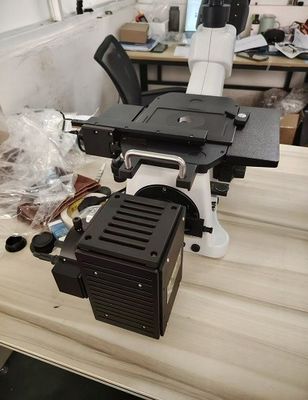

Large Image : HM-50P Metallographic Polarizing Microscope 50-500X Magnification

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HM-50P

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HM-50P Metallographic Polarizing Microscope 50-500X Magnification

Description

Total Magnification:

50-500 Times

Magnification:

50X, 100X, 200X, 500X Adjustable (10X Eyepiece Comes Standard)

Adaptive Wide Voltage:

100V-240V_AC50/60Hz

Highlight:

metallographic polarizing microscope 50-500X

polarizing microscope with warranty

non-destructive testing microscope metallographic

HM-50P Metallographic Upright Professional Polarizing Microscope

Product Introduction

The microscope is a upright professional polarizing microscope. The microscope adopts:

Infinite distance chromatic aberration correction optical system (CSIS), better image quality, higher resolution, more comfortable observation Y roof structure, high rigidity, high stability
Total magnification: 50-500 times
Modular detachable structure, flexible and changeable
Optimized and upgraded light source concentrating system, energy saving and environmental protection
Objective lens: infinite distance, ultra-long working distance, stress reduction, image clarity greatly improved
Especially suitable for polarizing observation

Technical Specifications

Name, model number	Metallographic microscope HM-50P
Magnification	50X, 100X, 200X, 500X adjustable (10X eyepiece comes standard)
Component configuration And specifications	Specification description	Quantity
	Eyepiece: High eye point large field of view flat field eyepiece PL10X22mm	1 pair
	Observation tube: 30° tilt, infinite hinged binocular observation tube, pupil distance adjustment: 54mm~75mm, unilateral optometry adjustment: ±5 diopter	1 set
	Focusing mechanism: transparent and reverse dual-purpose frame, low hand position coarse micro coaxial focusing mechanism, coarse adjustment stroke 30mm, fine tuning accuracy 0.002mm, with the adjustment tension device to prevent sliding and random upper limit device.	1 set
	Objective Lens Converter: Internally positioned four-hole converter with adjustable center	1
	Lighting system: Reflective Kola illuminator with variable stop and center adjustable field of view stop, 12V50W halogen, adjustable center of lamp, wide voltage 100V-240V adaptive, continuous brightness adjustable.	1 set
	Metallographic objective: 5x flat field infinite long working distance stress-relieving objective	1
	Metallographic objective: 10x flat field infinite long working distance stress-relieving objective	1
	Metallographic objective: 20x flat field infinite long working distance stress-relieving objective	1
	Metallographic objective: 50x flat field infinite long working distance stress-relieving objective	1
	Lighting: adaptive wide voltage 100V-240V_AC50/60Hz, reflection lamp room, imported halogen lamp 12V50W, preset center, reflection illuminator, with field stop and aperture stop, including LBD filter group, with plug-in polarizing mirror group.	1 Set
	Stage: rotating metal working platform, surface graphite spraying, anti-corrosion and wear-resistant, diameter 160mm, 360° rotating locking positioning, grid value 1°, accuracy 6	1 set
	Condenser: Roll-out achromatic condenser (N.A 1.2) with polarizing mirror set, 360° rotation, 0, 90, 180, 270 four-speed adjustable scale	1 set
	Middle mirror set: built-in Brinell mirror, rotary disc switching mechanism (center, focal length adjustable), with deviation detector slot and compensator slot	1 set
	Bias detector set: Insert plate bias detector set, 360° rotation, lattice value 2°, accuracy 6 ', with locking mechanism	1 set
	λ sheet: φ18mm, first grade red, light path difference 551nm	1 piece
	λ/4: φ18mm, optical path difference 147.3nm	1 piece

Accessories of choice

Metallographic Automatic Rating software (MIAS-H3000), or Metallographic Image measurement software (Image-H3000)
Computer
Printer
