HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen

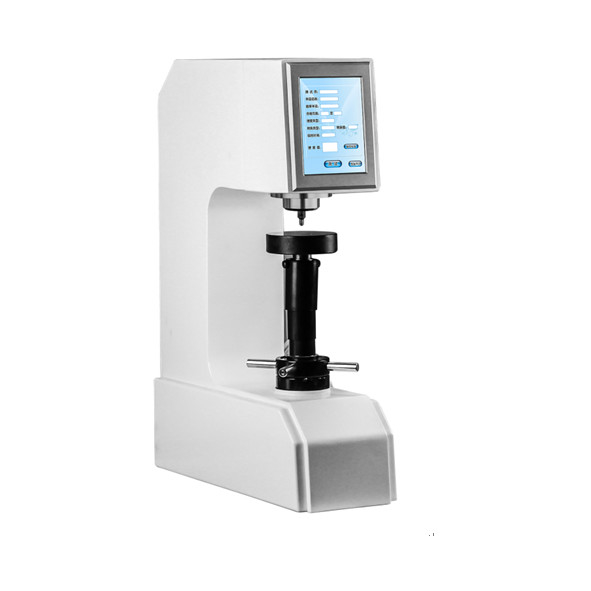

Large Image : HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HR-150DT
Document:	HR-150DT Digital Touch Scre...er.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD2309/set - USD2610/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen

Description

Conversion Scale:	Superficial Rockwell, Brinell, Vickers	Dwell Time:	0-99s
Total Load Of Rockwell:	60kgf(588N) 100kgf(980N) 150kgf(1471N)	Load Value Error:	Less Than 0.5%
Hardness Measurement Accuracy:	0.1HR	Max Height Of Sample:	200mm
Distance Of Indenter To Outer Wall:	160mm
Highlight:	Rockwell hardness tester with touch screen , high precision hardness tester sensor , non destructive testing equipment HR-150DT

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen

Product Features:

Electric loading with weight, high precision sensor.
Touch screen interface, easy operation.
Automatic correction of high, medium and low hardness values.
Built-in hardness value correction of convex cylindrical surface.
Strong data processing function, conversion of hardness value HR, HB, HV and so on, set the qualified range, overrun alarm, you can enter the tester, the sample names and other information.
Test results can be stored, processed and printed automatically.

Application Fields:

Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.

Technical Specifications:

Model	HR-150DT
Initial load of Rockwell	10kgf(98.07N)
Total load of Rockwell	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell Scale	HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV
Hardness testing range	HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120 HRM:85-115, HRR:114-125
Dwell time	0-99s
Resolution of hardness value	0.1HR
Load value error	＜0.5%
Hardness reading	LCD display
Screen size	8 inch
Data Storage	Can store 60 kinds of test results, built-in printer, RS-232 interface, optional USB flash disk automatically stored
Conversion Scale	Superficial Rockwell, Brinell, Vickers
Carried Standard	BSEN 6508, ISO 6508, ASTM E18, GB/T230
Max Height of Specimen	200mm
Distance of Indenter to outer wall	160mm
Overall Dimension (mm)	560×200×800mm
Net weight	70kg
Power supply	AC220+5%,50～60Hz

Standard Accessories:

Name	Quantity	Name	Quantity
Diamond Rockwell Indenter	1	1.5875mm Ball Indenter	1
Hardness block (HRC High Low 2, HRB 1)	3	Large, Medium, “V” shaped Testing Table	1 each
Weights(A,B,C)	1 each	Plastic Dustproof cover	1
Power line	1	2A fuse	1
Operation Manual	1	Product certificate	1

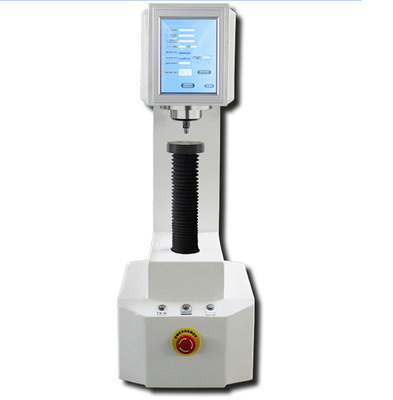

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen 0

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen 1
