Blocks for the linearity checking of Digital Thickness Gauge Set (17 pcs)

Large Image : Blocks for the linearity checking of Digital Thickness Gauge Set (17 pcs)

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD310-USD351/SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

Blocks for the linearity checking of Digital Thickness Gauge Set (17 pcs)

Description

Tolerance:

±5%

Highlight:

Digital Thickness Gauge calibration blocks

Linearity checking blocks set

Non-destructive testing thickness gauge accessories

Blocks for the linearity checking of Digital Thickness Gauge Set (17 pcs)

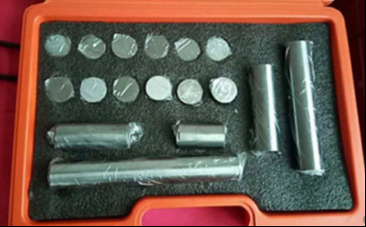

Set (17 pcs) of ultrasonic thickness calibration blocks is intended for checking linearity of ultrasonic contact thickness gauges.

l High quality of the materials

l High precision blocks to a tolerance of ±5%

The blocks can be supplied as a complete set or separately.

Standard value	0.5	1.0	1.2	1.5	2.0	3.3
Allowable error (a)	±0.01
Standard value	5.5	7.7	10	15	20	25	50
Allowable error (a)	±0.01				±0.02
Standard value	75		100		150	200
Allowable error (a)	±0.02	±0.05

Blocks for the linearity checking of Digital Thickness Gauge Set (17 pcs) 0
