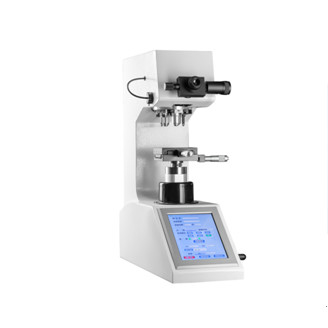

HV-30MDX Advanced Touch Screen Interface Vickers Hardness Tester

HV-30MDX Advanced Touch Screen Interface Vickers Hardness Tester
HV-30MDX Advanced Touch Screen Interface Vickers Hardness Tester HV-30MDX Advanced Touch Screen Interface Vickers Hardness Tester

Large Image :  HV-30MDX Advanced Touch Screen Interface Vickers Hardness Tester

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HV-30MDX
Document: HV-30MDX Digital vickers ha...er.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD3910/set - USD4420/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HV-30MDX Advanced Touch Screen Interface Vickers Hardness Tester

Description
Hardness Measuring Range: 8~2900HV Test Force Loading Method: Automatic（loading、duration、unloading）
Test Microscope Magnification: 100X、200X（Both Objectives Can Test） Test Force Dwell Time: 1~99s
Data Output: 8’touch Screen ,20 Different Kinds Of Test Result Can Be Saved Maximum Specimen Height: 160mm
Distance From The Center To The Outer Wall Of The Indenter: 135mm
Highlight:

touch screen Vickers hardness tester

,

HV-30MDX hardness testing equipment

,

non-destructive Vickers hardness tester

HV-30MDX Advanced Touch Screen Interface Vickers Hardness Tester

Product characteristics:

1.     Eight level load from 0.5Kgf(9.8N)to 30.0Kgf(490N) , customized

2.     Electric load ,closed-loop control,automatic loading

3.     Load automatic corrected,Accuracy raise a number of levels

4.     Hardness value automatic corrected according to different hardness block

5.     No need to install the weight, no need to regulate

6.     Touch screen interface,any language version

7.     Modular design, simple maintenance

8.     Large sample space

9.     Save more samples and test information

10.    Set the password protection

11.    Data saved as EXCEL format through USB flash disk, edit and process easy

12.    Available to upgrade to full automatic Vickers hardness tester

Technical Specifications:

Model

HV-30MDX

Test force

0.5Kgf (4.90N),1.0 Kgf (9.8N),2.0Kgf(19.6N),2.5Kgf(24.5N),3.0Kgf(29.4N),5.0Kgf(49.0N),10.0Kgf(98.0N),15.0Kgf(147N),20.0Kgf(196N),30.0Kgf(294N),0.3 Kgf(Optional)

Carried standard

GB/T4340,ASTM E92

Test resolution

0.01un

Conversion scale

Rockwell,Brinell

Hardness measuring range

8~2900HV

Test force loading method

Automatic(loading,duration,unloading)

Test microscope

 magnification

100X,200X(Both objectives can test)

Test force dwell time

1~99s

Data output

8’touch screen ,20 different kinds of test result can be saved

Maximum specimen height

160mm

Distance from the center to the outer wall of the indenter

135mm

Size

600*220*700mm

Weight

About 50Kg

Power

AC220V+5%,50-60Hz



Standard accessories

No

Description of Goods

Quantity

1

Large ,medium-sized, V sharped test table

Each 1PC

2

Regulating Screw

4 PCS

3

10× Micro Eyepiece

1 PC

4

Vickers standard block

2 PCS

5

Spare Fuses (2A)

2 PCS

6

Touch pen,U disk

Each 1PC

7

Level

1 PC

8

Dust bag

1 PC

9

Power Cord

1 PC

10

The Product Quality Certificate

1 PC

11

The Manual

1 PC

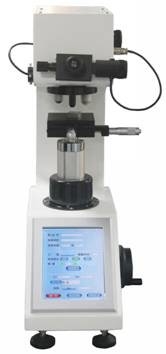

HV-30MDX Advanced Touch Screen Interface Vickers Hardness Tester 0

HV-30MDX Advanced Touch Screen Interface Vickers Hardness Tester 1
