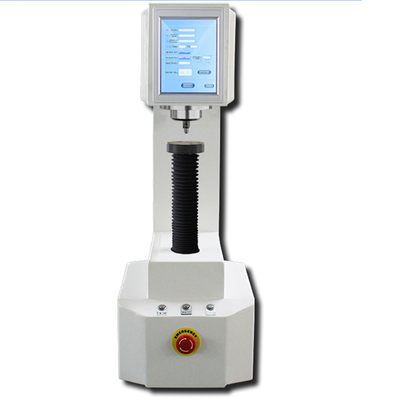

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Large Image : HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HR-150DX(H)
Document:	HR-150DX (H) advanced digit...er.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD3542/set - USD4004/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Description

Exchanging Scales:	Surface Rockwell, Brinell And Vickers	Dwell Time:	0-99s
Total Load Of Rockwell:	60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N)	Total Load Of Superficial Rockwell:	15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N)
Load Value Error:	Less Than 0.5%	Hardness Measurement Accuracy:	0.1HR
Max Height Of Sample:	400mm	Distance Of Indenter To Outer Wall:	200mm
Error Of Test Force:	＜1.0%
Highlight:	Touch Screen Rockwell Hardness Tester , Customized height Hardness Tester , Non Destructive Testing Equipment with warranty

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Product description:

1. Adopt electronic electric loading, high precision sensor and unique closed-loop control system.

2. Touch screen interface, easy to operate, directly select the hardness scale, force value automatically changes in the test parameters.

3. According to the standard hardness block, the high, middle and low sections of each hardness scale shall be automatically corrected.

4. Test force can be automatically corrected by standard dynamometer.

5. Automatically apply the initial test force and the main test force.

6. Powerful data processing function, including: HR, HB, HV and other hardness standard conversion, set the qualified range, automatic alarm over the limit, can input tester, sample name and other information.

7. More samples and test information, and the measurement data are saved in EXCEL format for easy editing and processing.

Technical parameters:

Model	HR-150DX(H)
Beginning test force	10kgf(98.07N)
Total test force	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell hardness scale	HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV
Test range	HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120 HRM:85-115, HRR:114-125
Duration time	0-99s
Hardness resolution	0.1HR
Error of test force	＜1.0%
Data output	LCD display
data storage	Measurements are stored on a usb drive in EXCEL format
Conversion scale	Surface Rockwell, Brinell and vickers
standard	BSEN 6508, ISO 6508, ASTM E18, GB/T230
Maximum allowable height of specimen	400mm
Distance from head to wall	200mm
Size	560×220×980mm
Weight	90kg
Power	AC220+5%,50～60Hz

Standard accessories:

Name	Quantity	Name	Quantity
Diamond head	1PC	Diameter 1.5875mm ball indenter	1PC
Hardness block (2PCS HRC and 1PC HRB)	total 3 pieces	Large, medium and V type test stand	Each one
Fuse 2A	2pcs	Adjust the foot horizontally	4pcs
Usb flash drive, touch pen	Each one	Dust bag	1pc
Power	1pc	instructions	1pc
Product certificate and warranty card	1pc

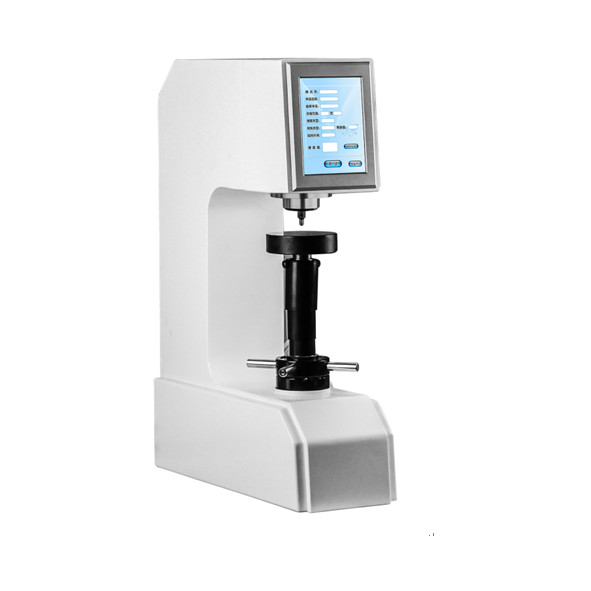

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester 0
