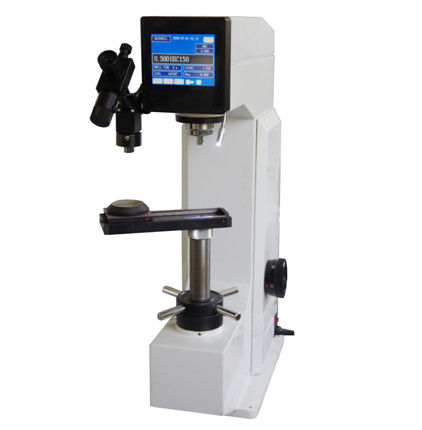

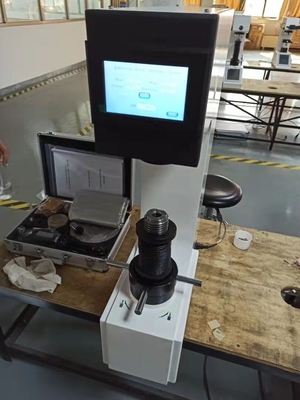

HB-3000DX Digital LCD Display Electronic Automatic Loading Brinell Hardness Tester

HB-3000DX Digital LCD Display Electronic Automatic Loading Brinell Hardness Tester
HB-3000DX Digital LCD Display Electronic Automatic Loading Brinell Hardness Tester HB-3000DX Digital LCD Display Electronic Automatic Loading Brinell Hardness Tester

Large Image :  HB-3000DX Digital LCD Display Electronic Automatic Loading Brinell Hardness Tester

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HB-3000DX
Document: HB-3000DX Digital Brinell H...er.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD5290/set - USD5980/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HB-3000DX Digital LCD Display Electronic Automatic Loading Brinell Hardness Tester

Description
Max Height Of Specimen: 200mm Distance Of Indenter To Outer Wall: 155mm
Power Supply: AC220+5%,50~60Hz Dwell Time: 0～99S
Measuring Device Resolution: 0.1um Hardness Value Resolution: 0.1HBW
Test Force Accuracy: 62.5～250kgf≤1% 500～3000kgf≤0.5%
Highlight:

digital LCD Brinell hardness tester

,

automatic loading hardness tester

,

electronic Brinell tester with warranty

HB-3000DX Digital LCD Display Electronic Automatic Loading Brinell Hardness Tester


Main features:

1.      Adopts electronic automatically add load, with high accuracy sensor, have special closed-loop control system , automatic compensation for each shift

2.      Eyepiece structure with digital encoder, measure D1, D2 value, LCD displays hardness value and D1, D2 value directly

3.      Can be calibrated according to standard hardness block or length scale.

4.      The test force can be modified automatically by standard dynamometer.

5.      The hardness values of rockwell and vickers can be converted.

6.      All data is stored in EXCEL format on U disk, or can choose built-in printer, RS232 is optional.

Technical specification:

Model

HB-3000DX

Brinell scale

HBW2.5/62.5,HBW2.5/187.5,HBW5/62.5,HBW5/125,HBW5/250, HBW5/750,HBW10/100,HBW10/250,HBW10/500,HBW10/1000,  HBW10/1500,HBW10/3000

Test force(Kgf)

62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N),

187.5kgf(1839N),250kgf(2452N),500kgf(4903N),750kgf(7355N) 1000kgf(9807N),1500kgf(14710N),3000kgf(29420N)

Carried standard

BSEN 6506, ISO 6506, ASTM E10, GB/T231

Test force accuracy

62.5～250kgf≤1%   500～3000kgf≤0.5%

Measuring device resolution

0.1um

Hardness value resolution

0.1HBW

Dwell time

0～99S

Data output

LCD display

Data storage

All data is stored in EXCEL format on U disk, or can choose built-in printer

Max. Height of specimen

200mm

Distance of indenter to outer wall

155mm

Dimension

550×210×800mm

Weight

110kg

Power supply

AC220+5%,50～60Hz


Standard Accessories:

Item

Quantity

Item

Quantity

Eyepiece

1

Large, Medium, “V” shaped Testing Table

Each 1

Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter

Each 1

Standard block(HBW10/3000, HBW10/1000,HBW2.5/187.5)

Each 1

U disk,  touch pen

1

Dust bag

1

Power cable

1

Fuse 2A

2

Certificate, warranty card

1

Manual

1


HB-3000DX Digital LCD Display Electronic Automatic Loading Brinell Hardness Tester 0
