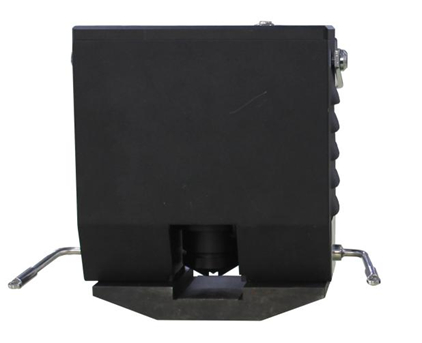

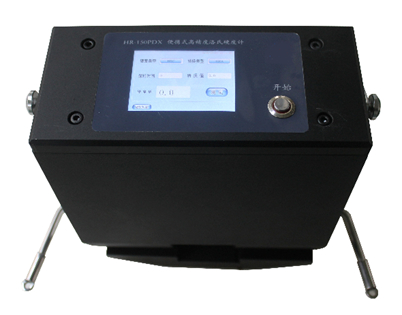

HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester

HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester
HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester

Large Image :  HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HB-187.5PDX
Document: HB-187.5PDX Portable high-...er.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD7360/set - USD8320/set
Packaging Details: Carton packing box
Delivery Time: 10-15 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester

Description
Brinell Testing Range: 15.9-650HBW（ASTM E10） Duration Time: 0-99s
Hardness Resolution Ratio: 0.1HBW Conversion Scale: Brinell,(Rockwell And Vickers Are Optional)
Test Force Deviation: ＜1% Voltage: AC220+5%,50～60Hz
Highlight:

portable Brinell hardness tester

,

closed loop hardness tester

,

touch screen Brinell tester

HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester

Main Features:

1.       The tester can automatically test Brinell (depth measurement method) (HBT) scale.

2.       Applies electric loading, high-precision sensor and possesses unique close-circuit control system;

3.       Touch-screen interface; convenient operation; choose hardness scale directly; force value changes automatically in test parameter;

4.       Auto-correction of high, medium and low scales of brinell hardness blocks according to standard blocks;

5.       Auto-correction of test force through standard dynamo-meter;

6.       Automatically exertion of initial and main test force;

7.       Strong data processing function including: HB and multiple hardness scale conversion; setting of valid range; auto alarm when limit is exceeded; input name of tester, name of sample and other information;

8.       More sample and testing information; testing data can be saved automatically to excel format and saved on u-disk for convenience of editing and processing.


Technical Specifications:

Model

HB-187.5PDX

Brinell total test force

5 Kgf ,6.25 Kgf ,10 Kgf ,15.625 Kgf ,25 Kgf ,30 Kgf ,31.25Kgf  62.5Kgf,187.5Kgf

Brinell hardness scale

HBW2.5/6.25,HBW2.5/15.625,HBW2.5/31.25, HBW2.5/62.5,HBW2.5/187.5,HBW1/5,HBW1/10,HBW1/30

Brinell testing range

15.9-650HBW(ASTM E10)

Duration time

0-99s

Hardness resolution ratio

0.1HBW

Test force deviation

＜1%

Data output

LCD display

Data saving

Measurement data saved in u-disk in excel format

Conversion scale

Brinell,(Rockwell and Vickers are optional)

Criteria met

BSEN 6506, ISO 6506, ASTM E10, GB/T231

Specimen dimension

Plane surface: area≥160X100,thickness≥5mm;

Round stick(pipe): diameter over 250mm;

When between 60 to 250mm, fix v-shaped block and chain to the magnet to fasten sample.

Size

320×170×230mm

Weight

10.5kg

Voltage

AC220+5%,50～60Hz

Standard Accessories

Item

Quantity

Item

Quantity

Main unit HB-187.5PDX

1

1mm,2.5mm carbide indenter

1 each

Hardness block (HRB)

2

 power source

1

Iron base

1

U disk, touch pen

Each 1

Power cord

1

Manual

1

Product certificate, warranty card

1

Product certificate, warranty card

1


HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester 0
